LFP0400-G7DMC | Level sensors

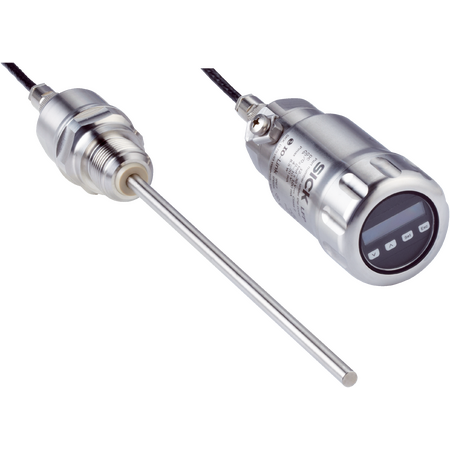

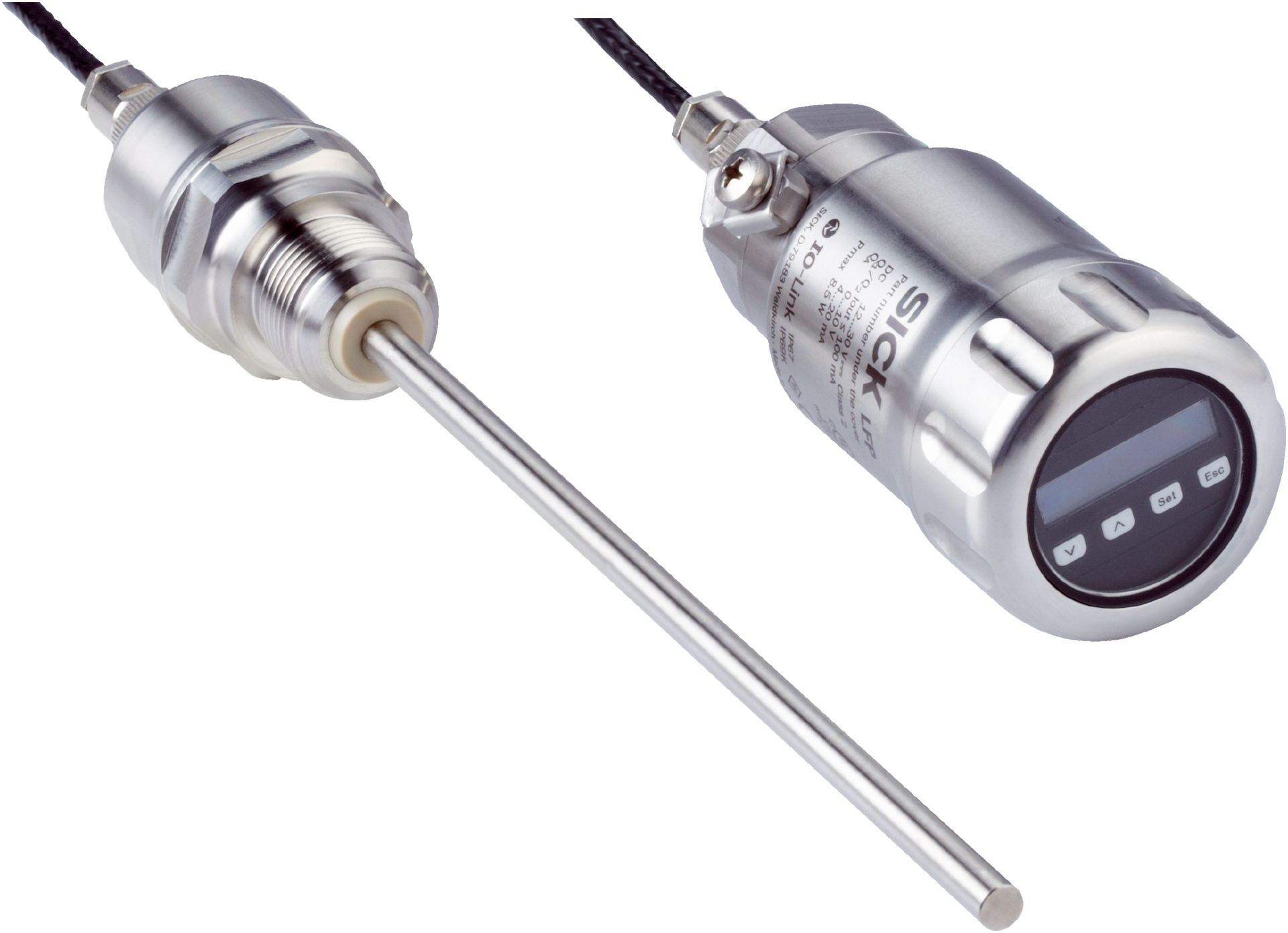

The SICK LFP0400-G7DMC level sensor features a hygienic rod probe and remote amplifier for precise fluid level measurement with robust stainless steel construction and advanced IO-Link communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP0400-G7DMC | Level sensors
Brand: SICK
SKU: 1088288
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, IO-Link Level Sensor, Continuous Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Remote amplifier
- Probe type: Rod probe in hygienic design
- Process pressure: -1 bar to 16 bar
- Process temperature: -20 °C to +180 °C
- Accuracy: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe, ≥1.8 with coaxial tube
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC
- Connection: M12 round connector, 8-pin
- Output signals: 1 x PNP, 3 x PNP/NPN, 4-20 mA, 0-10 V
- Enclosure rating: IP67 and IP69
- Wetted parts: Stainless steel 1.4404 / 316L, PEEK
- Housing material: Stainless steel 1.4305
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: G ¾ A
- Cable length: 3.3 m
- Dimensions (H x L x W): 30mm x 400mm x 30mm
- Weight: 0.5 kg
Key Features
- Rod probe in hygienic design with 400 mm length
- Remote amplifier design for flexible installation
- Measurement types: switch and continuous
- High accuracy with ±5 mm sensor element accuracy and ≤2 mm reproducibility
- Fast response time of 400 ms
- Communication via IO-Link interface
- Robust stainless steel housing and wetted parts (1.4404 / 316L and 1.4305)
- Protection rating IP67 and IP69 for harsh environments
- Display included for easy monitoring
- Wide supply voltage range from 12 V DC to 30 V DC
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection, calibration, and compliance with safety standards.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel and PEEK wetted parts
- Continuous and switch measurement in liquids
- Use in environments with process pressures from -1 bar to 16 bar
- Suitable for temperatures from -20 °C to +180 °C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Energy-efficient electronics minimize power consumption
- Enables precise fluid level monitoring to prevent spills and reduce resource waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFP0400-G7DMC level sensor is available for immediate purchase, ideal for industrial fluid level monitoring applications requiring hygienic design and robust performance.
