LFP0400-N2NMB | Level sensors

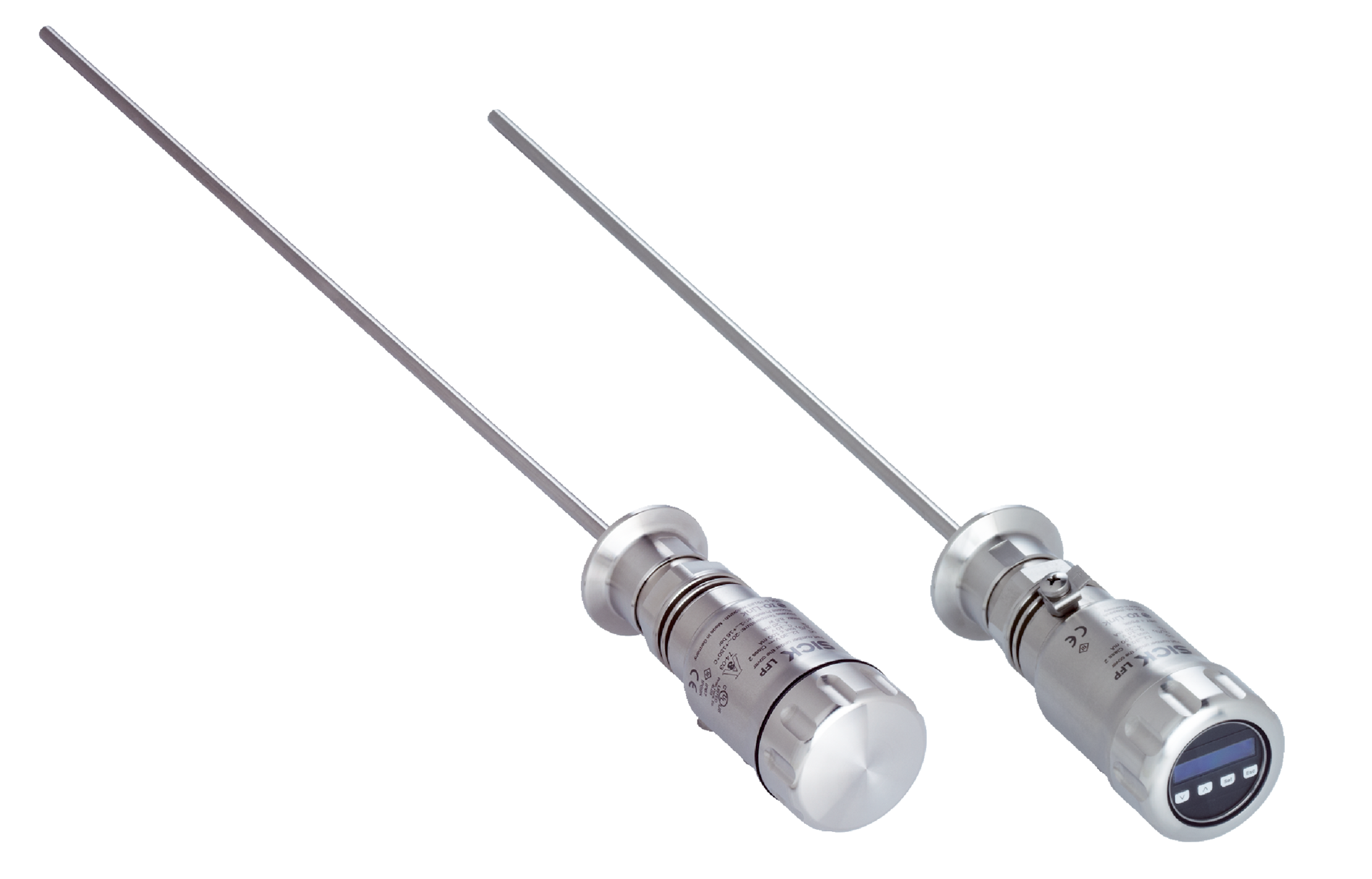

The SICK LFP0400-N2NMB level sensor is designed for precise fluid level measurement with hygienic rod probe, robust stainless steel construction, and versatile output options, suitable for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

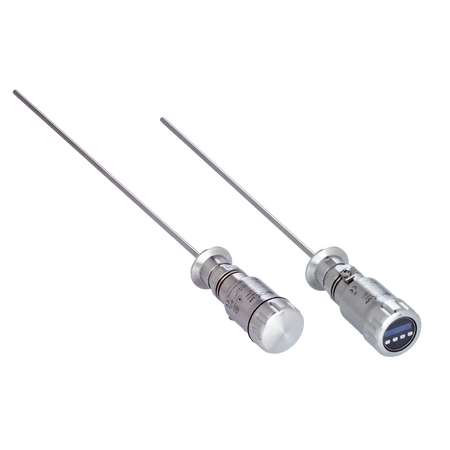

Product Name/Title: LFP0400-N2NMB | Level sensors
Brand: SICK
SKU: 1082680
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, IO-Link Level Sensor
Technical Specifications
- Measurement: Switch and continuous level detection
- Probe length: 400 mm
- Process pressure: –1 bar to 16 bar
- Process temperature: –20 °C to +150 °C
- Accuracy: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC without output load
- Output signals: 1 x PNP + 1 x PNP/NPN + 4-20 mA / 0-10 V
- Connection: Round connector M12 x 1, 5-pin
- Enclosure rating: IP67 and IP69
- Wetted parts: Stainless steel 1.4404 / 316L and PEEK
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: ¾" NPT
- Housing material: Stainless steel 1.4305
- Ambient operating temperature: –20 °C to +60 °C
- Dimensions (H x L x W): 30mm x 400mm x 30mm
- Weight: 0.5 kg
Key Features
- Rod probe in hygienic design suitable for fluids
- Standard amplifier design with IO-Link communication interface
- High accuracy with ±5 mm sensor element accuracy and ≤2 mm reproducibility
- Wide process temperature range from –20 °C to +150 °C
- Process pressure tolerance from –1 bar to 16 bar
- IP67 and IP69 rated enclosure for robust protection
- Stainless steel 1.4404 / 316L wetted parts and PEEK for durability
- Display included for easy monitoring
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level sensor setup and electrical connections to ensure safety and compliance.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel and PEEK materials
- Continuous and switch level detection in tanks and vessels
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel and PEEK materials ensure long product life and reduce waste
- Energy-efficient electronics minimize power consumption
- Supports hygienic design reducing contamination and waste in food and pharmaceutical industries
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LFP0400-N2NMB level sensor is available for immediate purchase, ideal for industrial fluid level measurement applications requiring hygienic design and robust performance.
