LFP0500-G6CMC | Level sensors

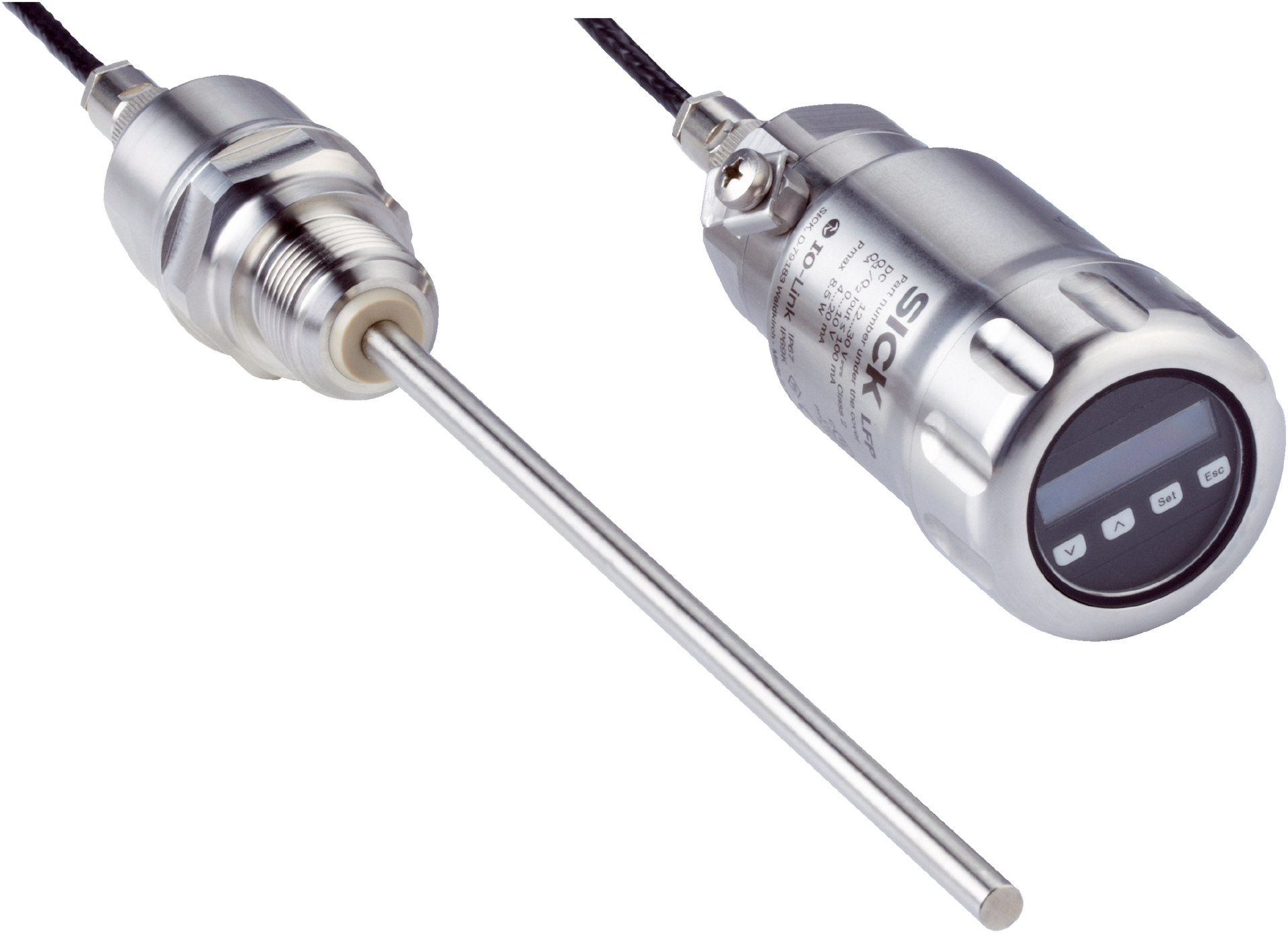

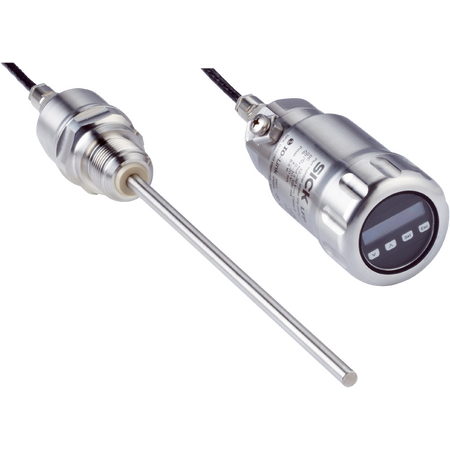

The SICK LFP0500-G6CMC level sensor features a hygienic rod probe and remote amplifier for precise fluid level measurement in demanding industrial environments, supporting multiple output signals and robust IP67/IP69 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP0500-G6CMC | Level sensors
Brand: SICK
SKU: 1101814
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, IO-Link Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch and Continuous
- Design: Remote amplifier
- Probe type: Rod probe in hygienic design
- Process pressure: -1 bar to 16 bar
- Process temperature: -20°C to +180°C
- Accuracy: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC
- Communication interface: IO-Link
- Output signals: 1 x PNP + 3 x PNP/NPN + 4-20 mA / 0-10 V
- Enclosure rating: IP67 and IP69
- Connection type: M12 round connector, 8-pin
- Material wetted parts: Stainless steel 1.4404 / 316L and PEEK
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: G ¾ A
- Housing material: Stainless steel 1.4305
- Ambient operating temperature: -20°C to +60°C
- Dimensions (H x L x W): 30mm x 500mm x 30mm
- Weight: 1.2 kg
Key Features
- Rod probe in hygienic design with 500 mm length
- Remote amplifier design with display
- High accuracy with ±5 mm sensor element accuracy and ≤2 mm reproducibility
- IO-Link communication interface for smart connectivity
- Wide supply voltage range from 12 V DC to 30 V DC
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
- Robust stainless steel housing with IP67 and IP69 protection ratings
- Suitable for process pressures from -1 bar to 16 bar and temperatures from -20°C to +180°C
- Food contact material certified and compliant with multiple international standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and IO-Link communication protocols to ensure proper operation and safety.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel and PEEK materials
- Continuous and switch level detection in tanks and vessels
- Use in environments with process pressures from -1 bar to 16 bar and temperatures from -20°C to +180°C
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel and PEEK materials ensure long service life reducing waste
- Energy-efficient electronics minimize power consumption
- Compliant with China RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFP0500-G6CMC Level Sensor is available for immediate purchase, ideal for hygienic fluid level measurement in industrial and food processing applications.
