LFP0500-NANMB | Level sensors

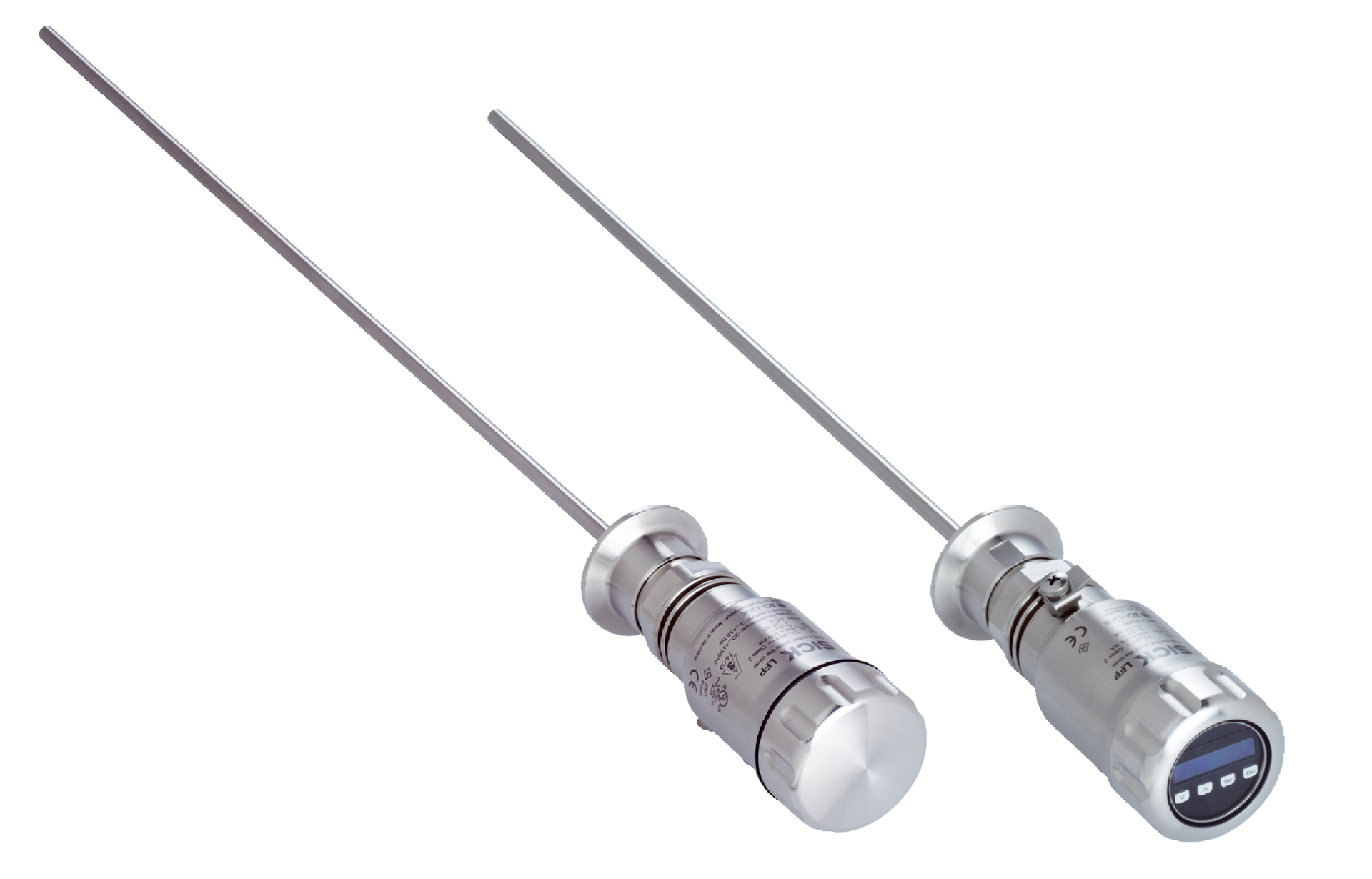

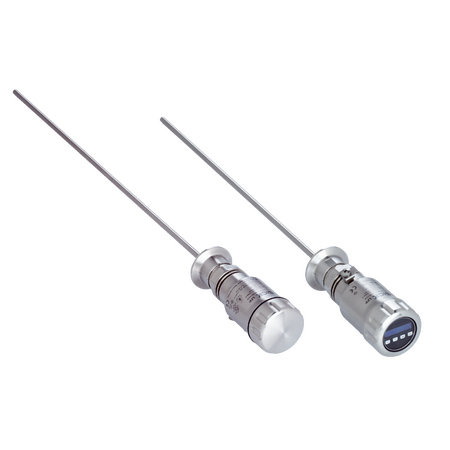

The SICK LFP0500-NANMB level sensor features a hygienic rod probe design for accurate fluid level measurement with switch and continuous output, suitable for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP0500-NANMB | Level sensors
Brand: SICK
SKU: 1080640
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, Continuous Level Transmitter
Technical Specifications
- Dimensions (H x L x W): 40mm x 500mm x 40mm
- Weight: 1.2 kg
Key Features
- Rod probe in hygienic design suitable for fluids
- Measurement modes: switch and continuous
- Standard amplifier design with display
- Process pressure range from -1 bar to 16 bar
- Process temperature range from -20 °C to +150 °C
- High accuracy with ±5 mm sensor element accuracy
- IO-Link communication interface for easy integration
- Robust stainless steel housing with IP67 and IP69 protection
- Cable connector M12 x 1, 5-pin with 10 m cable length
- FDA certified and compliant with multiple international standards
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and compliance with safety standards.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel and FDA certified materials
- Continuous and switch level detection in tanks and vessels
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Energy-efficient electronics with low power consumption (≤ 75 mA at 24 V DC)
- Long mean time to failure (MTTF) of 194.3 years reduces environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LFP0500-NANMB Level Sensor is available for immediate purchase, ideal for industrial fluid level monitoring and hygienic process applications.
