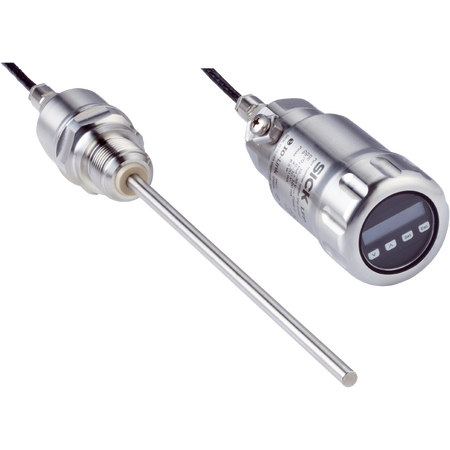

LFP0560-G1BMB | Level sensors
The SICK LFP0560-G1BMB level sensor features a hygienic rod probe and remote amplifier for precise fluid level measurement in industrial and food applications, with robust IP67/IP69 protection and multiple output signals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP0560-G1BMB | Level sensors
Brand: SICK
SKU: 1107731
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, Continuous Level Sensor, Switch Level Sensor
Technical Specifications
- Dimensions (H x L x W): 30mm x 560mm x 30mm
- Weight: 1.5 kg
Key Features
- Rod probe in hygienic design with 560 mm length
- Measurement types: switch and continuous
- Remote amplifier design with display
- High process pressure tolerance from -1 bar to 16 bar
- Wide process temperature range from -20 °C to +180 °C
- High accuracy with ±5 mm sensor element accuracy and ≤2 mm reproducibility
- Communication interface: IO-Link
- Output signals include PNP, PNP/NPN, 4 mA to 20 mA, and 0 V to 10 V
- Enclosure rating IP67 and IP69 for robust protection
- Wetted parts made of stainless steel 1.4404 / 316L and PEEK
- Housing with viewing window made from PMMA (acrylic glass)
- Certified for food contact and multiple international conformity declarations
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration, especially for hygienic and industrial applications.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel and PEEK wetted parts
- Continuous and switch level detection in tanks and vessels
- Food and pharmaceutical industry due to hygienic design and FDA certification
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable stainless steel and PEEK materials ensure long service life reducing waste
- Low power consumption of ≤75 mA at 24 V DC
- High MTTF of 194.3 years reduces replacement frequency and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LFP0560-G1BMB Level Sensor is available for immediate purchase, ideal for industrial fluid level monitoring and hygienic process applications.
