LFP0580-G3NMB | Level sensors

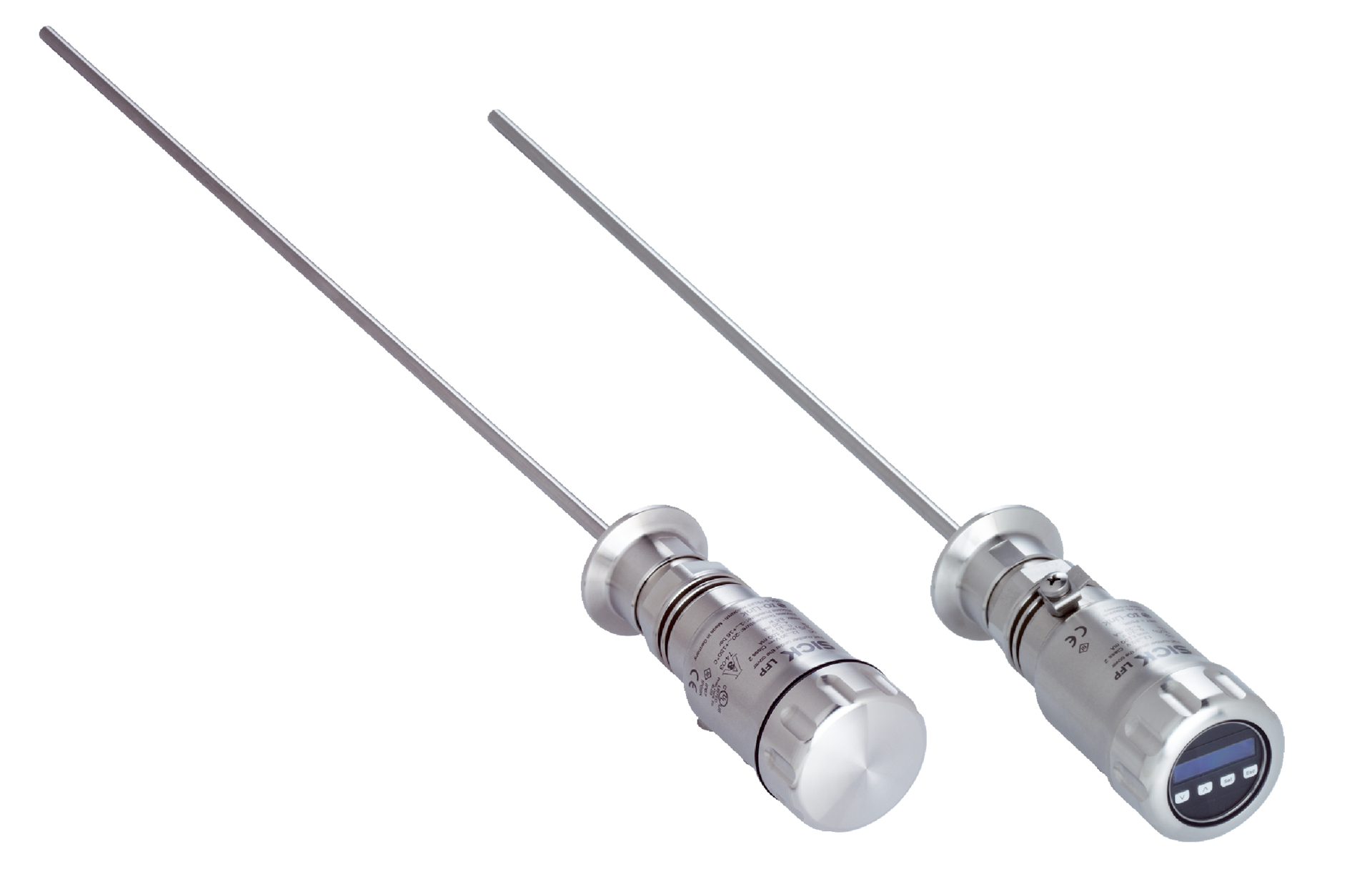

The SICK LFP0580-G3NMB level sensor features a hygienic rod probe for accurate fluid level measurement in industrial and hygienic applications, supporting switch and continuous measurement with robust stainless steel construction and advanced IO-Link communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP0580-G3NMB | Level sensors
Brand: SICK
SKU: 1094988
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, IO-Link Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Standard amplifier
- Probe type: Rod probe in hygienic design
- Probe length: 580 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -20 °C to +150 °C
- Accuracy of sensor element: ±5 mm
- Reproducibility: ≤ 2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥ 5 for rod probe, ≥ 1.8 with coaxial tube
- Conductivity: No limitation
- Deactivated area at process connection: 25 mm
- Deactivated area at end of probe: ≥ 10 mm
- MTTF: 194.3 years (EN ISO 13849-1)
- Display: Yes
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤ 75 mA at 24 V DC without output load
- Initialization time: ≤ 2 s
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Output load: 4 mA to 20 mA < 500 Ohm at Uv > 13.5 V, 4 mA to 20 mA < 400 Ohm at Uv > 12 V, 0 V to 10 V > 750 Ohm at Uv ≥ 14 V
- Hysteresis: ≥ 2 mm
- Output current: < 100 mA
- Inductive load: < 1 H
- Capacitive load: < 100 nF
- Enclosure rating: IP67 and IP69 (EN 60529)
- Temperature drift: < 0.1 mm/K
- Lower signal level: 3.8 mA to 4 mA, 0 V
- Upper signal level: 20 mA to 20.5 mA, 10.5 V
- Wetted parts: Stainless steel 1.4404 / 316L PEEK
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: G ¾ A
- Housing material: Stainless steel 1.4305
- Housing design: With closed cover
- Max. probe load: ≤ 6 Nm
- Ambient operating temperature: -20 °C to +60 °C
- Ambient temperature, storage: -40 °C to +80 °C
- Outdoor use: Only with weather hood
- Dimensions (H x L x W): 580mm x 30mm x 30mm
- Weight: 1.2 kg
Key Features
- Suitable for fluids with switch and continuous measurement
- Standard amplifier design with hygienic rod probe
- Process pressure range from -1 bar to 16 bar
- Process temperature range from -20 °C to +150 °C
- High accuracy with ±5 mm sensor element accuracy
- IO-Link communication interface for easy integration
- Robust stainless steel housing and wetted parts
- Protection class IP67 and IP69 for harsh environments
- Display included for easy status monitoring
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and IO-Link communication protocols to ensure proper integration and safety compliance.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications in food and pharmaceutical industries
- Continuous and switch level detection in tanks and vessels
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Energy-efficient electronics minimize power consumption
- Supports hygienic design reducing contamination and waste in food and pharma processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK LFP0580-G3NMB Level Sensor is available for immediate purchase, ideal for hygienic fluid level measurement in industrial, food, and pharmaceutical applications.
