LFP0640-G1BMB | Level sensors
The SICK LFP0640-G1BMB level sensor features a hygienic rod probe design for precise fluid level measurement with switch and continuous output, suitable for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

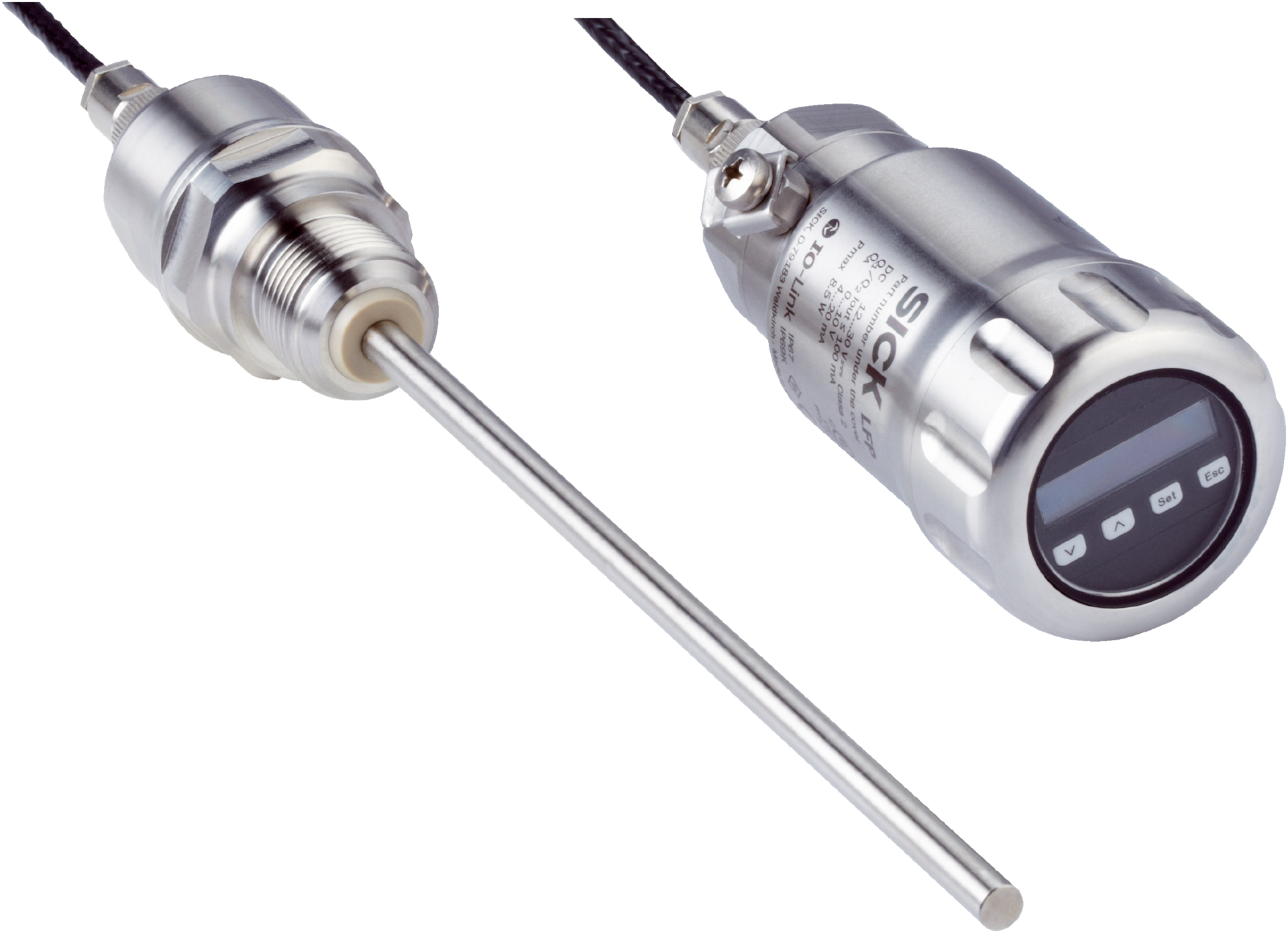

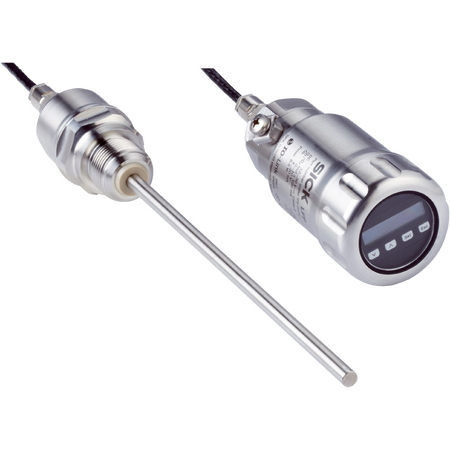

Product Name/Title: LFP0640-G1BMB | Level sensors
Brand: SICK
SKU: 1082994
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, Continuous Level Sensor, Switch Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Remote amplifier
- Probe type: Rod probe in hygienic design
- Probe length: 640 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -20 °C to +180 °C
- Accuracy of sensor element: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe, ≥1.8 with coaxial tube
- Conductivity: No limitation
- MTTF: 194.3 years (EN ISO 13849-1)
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC without output load
- Initialization time: ≤2 s
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Enclosure rating: IP67 and IP69 (EN 60529)
- Wetted parts: Stainless steel 1.4404 / 316L PEEK
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: G ¾ A
- Housing material: Stainless steel 1.4305
- Housing design: With viewing window made from PMMA (acrylic glass)
- Max. probe load: ≤6 Nm
- Dimensions (H x L x W): 30mm x 640mm x 30mm
- Weight: 1.2 kg
Key Features
- Suitable for fluids with switch and continuous measurement
- Remote amplifier design with rod probe in hygienic design
- Process pressure range from -1 bar to 16 bar
- Process temperature range from -20 °C to +180 °C
- High accuracy with ±5 mm sensor element accuracy
- IO-Link communication interface for smart connectivity
- Robust stainless steel wetted parts and housing
- IP67 and IP69 rated enclosure for harsh environments
- Display included for easy monitoring
- FDA certified and food contact material compliant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level sensor setup and electrical connections, ensuring compliance with safety standards.
Applications
- Fluid level measurement in industrial processes
- Hygienic environments requiring stainless steel sensors
- Continuous and switch level detection in liquids
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Energy-efficient electronics minimize power consumption
- Compliant with RoHS and FDA standards ensuring safe environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK LFP0640-G1BMB Level Sensor is available for immediate purchase, ideal for hygienic fluid level measurement in industrial and food processing applications.
