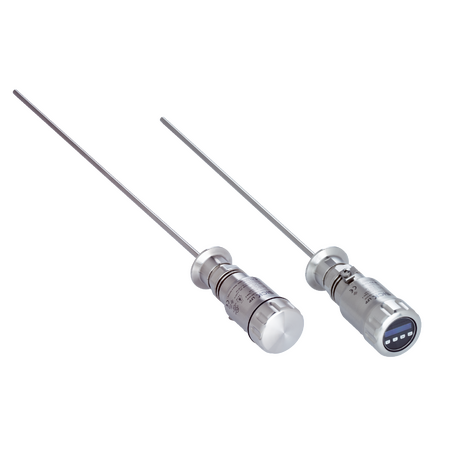

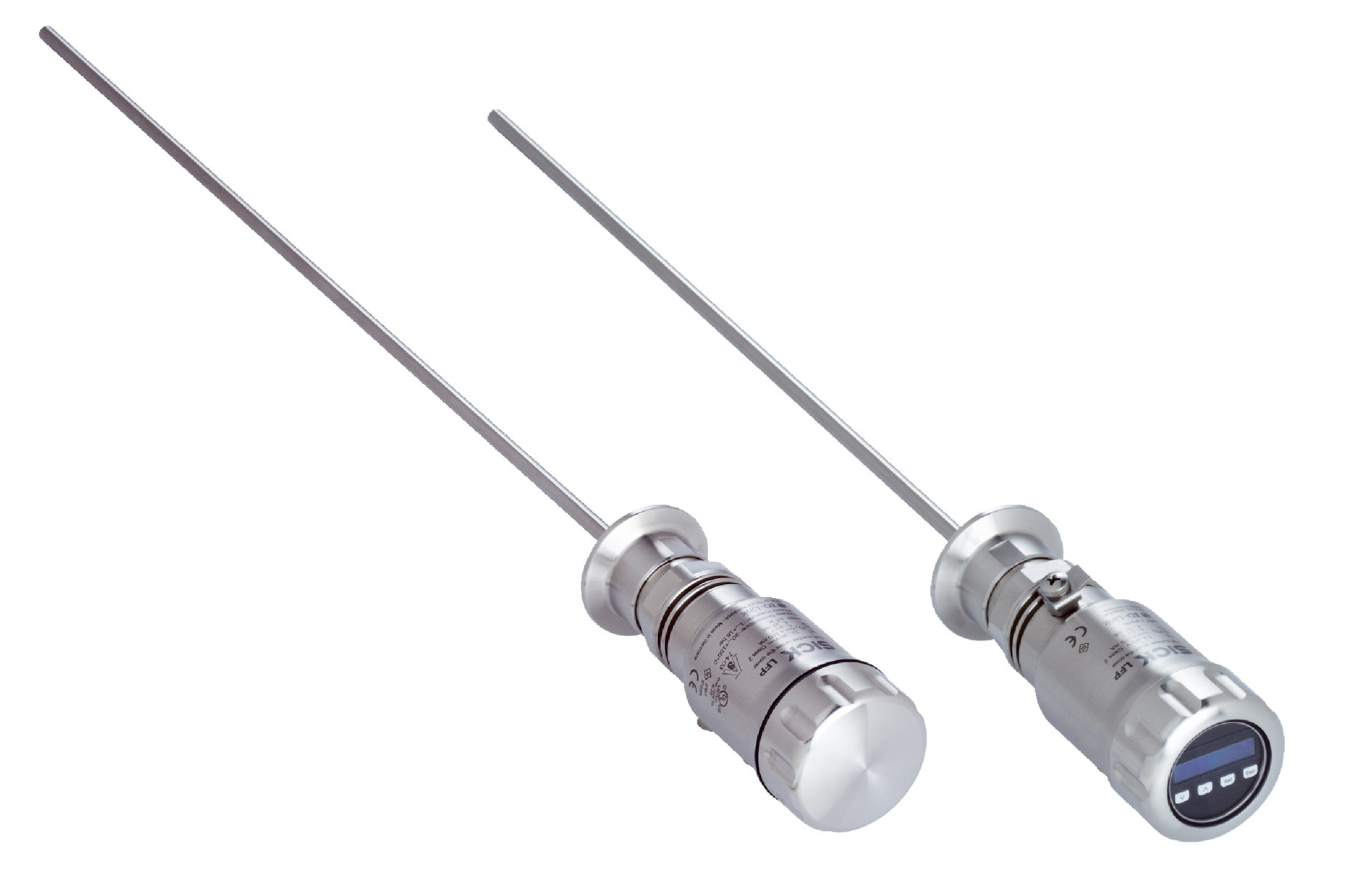

LFP0700-N1NMB | Level sensors
The SICK LFP0700-N1NMB level sensor is designed for precise fluid level measurement with hygienic rod probe, robust stainless steel construction, and advanced IO-Link communication for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP0700-N1NMB | Level sensors
Brand: SICK
SKU: 1059413
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, IO-Link Level Sensor, Hygienic Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Standard amplifier
- Probe type: Rod probe in hygienic design
- Probe length: 700 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -20 °C to +150 °C
- Accuracy of sensor element: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe, ≥1.8 with coaxial tube
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC without output load
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Enclosure rating: IP67 and IP69
- Wetted parts: Stainless steel 1.4404 / 316L PEEK
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: ¾" NPT
- Housing material: Stainless steel 1.4305
- Ambient operating temperature: -20 °C to +60 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 700mm x 30mm x 30mm
- Weight: 1.2 kg
Key Features
- Rod probe in hygienic design suitable for fluids
- Measurement modes: switch and continuous
- Standard amplifier design with display
- Process pressure range from -1 bar to 16 bar
- Process temperature range from -20 °C to +150 °C
- High accuracy with ±5 mm sensor element accuracy
- Reproducibility ≤ 2 mm and resolution of 1 mm
- Fast response time of 400 ms
- Communication interface via IO-Link
- Supply voltage 12 V DC to 30 V DC
- Protection class III with IP67 and IP69 enclosure rating
- Stainless steel wetted parts and housing with viewing window
- Suitable for outdoor use with weather hood
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration according to industrial safety standards.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel probes
- Continuous and switch level detection in tanks and vessels
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Energy-efficient electronics minimize power consumption
- Compliant with food contact material standards for safe environmental use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK LFP0700-N1NMB Level Sensor is available for immediate purchase, ideal for industrial fluid level monitoring and hygienic applications.
