LFP0750-G1NMB | Level sensors

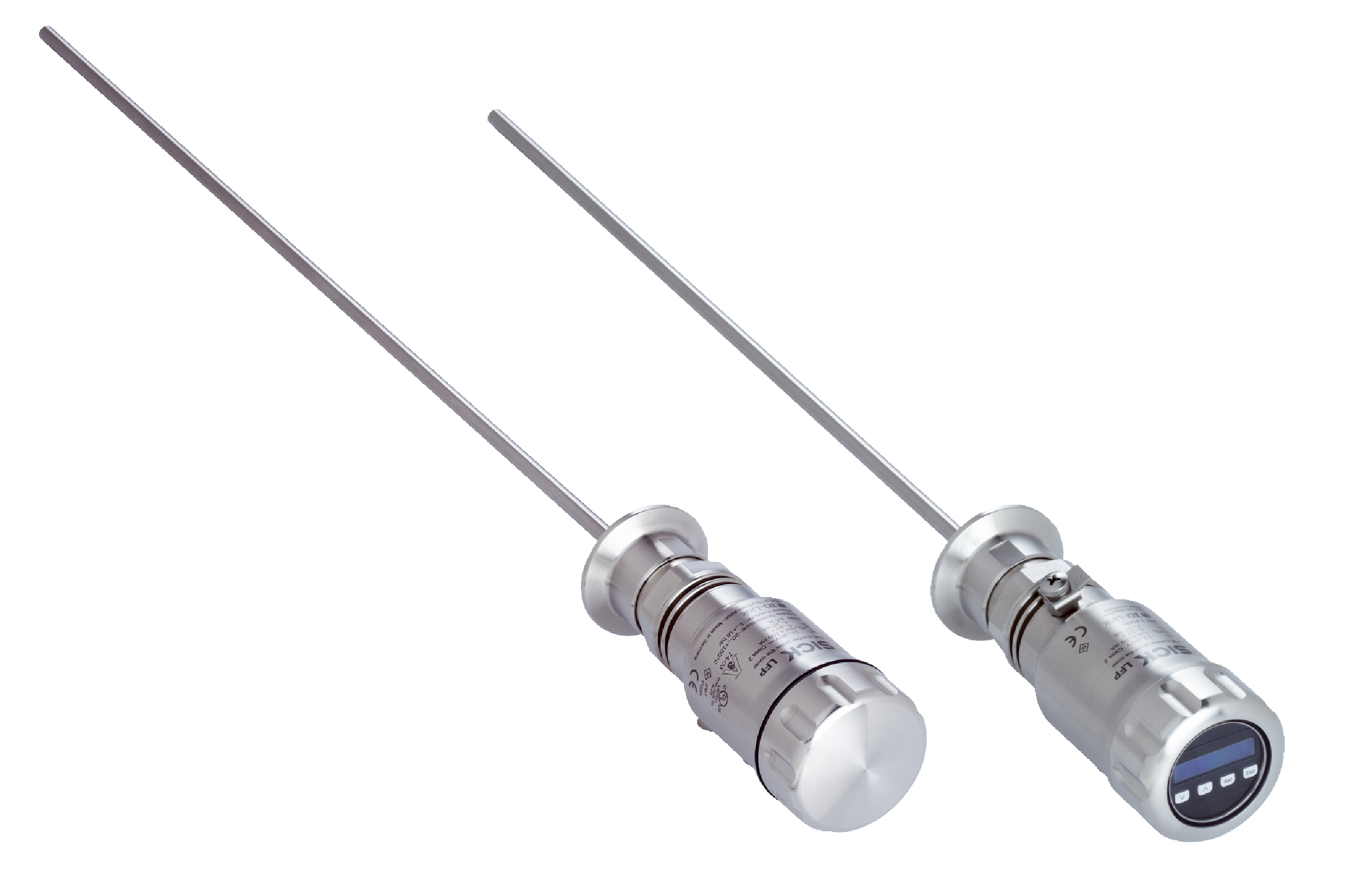

The SICK LFP0750-G1NMB level sensor features a hygienic rod probe design for accurate fluid level measurement with switch and continuous output, suitable for demanding industrial and hygienic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

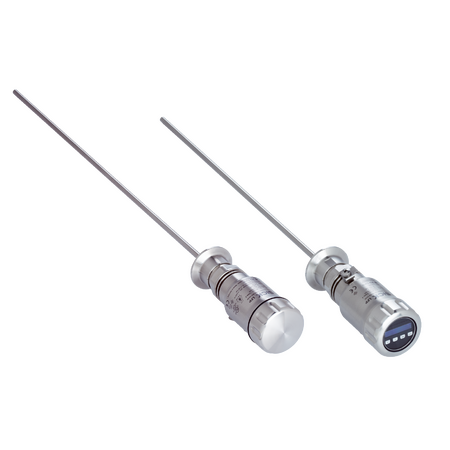

Product Name/Title: LFP0750-G1NMB | Level sensors
Brand: SICK
SKU: 1071992
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, Continuous Level Sensor, Switch Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Standard amplifier
- Probe type: Rod probe in hygienic design
- Probe length: 750 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -20 °C to +150 °C
- Accuracy of sensor element: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe, ≥1.8 with coaxial tube
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC without output load
- Communication interface: IO-Link
- Output signals: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Enclosure rating: IP67 and IP69
- Wetted parts: Stainless steel 1.4404 / 316L, PEEK
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: G ¾ A
- Housing material: Stainless steel 1.4305
- Max. probe load: ≤6 Nm
- Ambient operating temperature: -20 °C to +60 °C
- Dimensions (H x L x W): 750mm x 30mm x 30mm
- Weight: 1.5 kg
Key Features
- Rod probe in hygienic design suitable for fluids
- Switch and continuous measurement capabilities
- Standard amplifier design with display
- High accuracy with ±5 mm sensor element accuracy
- Robust stainless steel and PEEK wetted parts
- IP67 and IP69 rated enclosure for harsh environments
- IO-Link communication interface for easy integration
- Wide process temperature range from -20 °C to +150 °C
- Process pressure range from -1 bar to 16 bar
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level sensor integration and electrical safety standards.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications in food and beverage industry
- Continuous and switch level detection in tanks and vessels
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Energy-efficient electronics minimize power consumption
- Supports hygienic design reducing contamination and waste in food processing
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LFP0750-G1NMB Level Sensor is available for immediate purchase, ideal for hygienic fluid level measurement in industrial and food processing applications.
