LFP0750-N1NMB | Level sensors

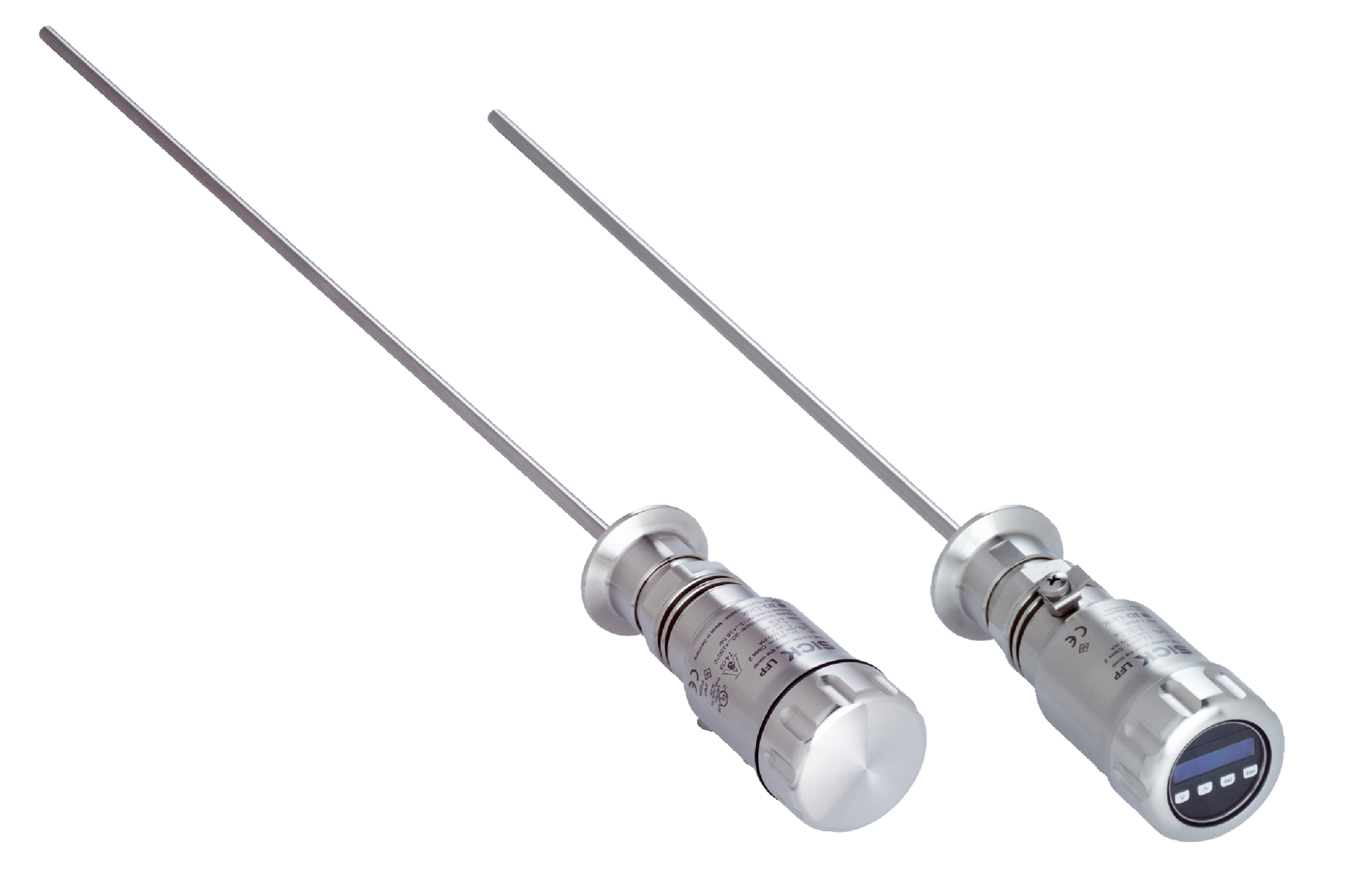

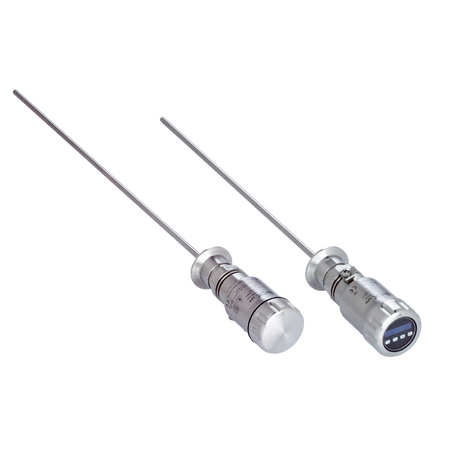

The SICK LFP0750-N1NMB level sensor is designed for precise fluid level measurement with hygienic rod probe, suitable for industrial and food applications, featuring IO-Link communication and robust stainless steel construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP0750-N1NMB | Level sensors
Brand: SICK
SKU: 1064404
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, IO-Link Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Standard amplifier
- Probe type: Rod probe in hygienic design
- Process pressure: –1 bar to 16 bar
- Process temperature: –20 °C to +150 °C
- Accuracy: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC
- Output signals: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Enclosure rating: IP67 and IP69
- Connection type: Round connector M12 x 1, 5-pin
- Wetted parts: Stainless steel 1.4404 / 316L, PEEK
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: ¾" NPT
- Housing material: Stainless steel 1.4305
- Ambient operating temperature: –20 °C to +60 °C
- Dimensions (H x L x W): 30mm x 750mm x 30mm
- Weight: 1.5 kg
Key Features
- Rod probe in hygienic design with 750 mm length
- Measurement types: switch and continuous
- Standard amplifier design with display
- High accuracy of ±5 mm and reproducibility ≤2 mm
- IO-Link communication interface for smart connectivity
- Wide process pressure range from –1 bar to 16 bar
- Process temperature range from –20 °C to +150 °C
- Stainless steel 1.4404 / 316L and PEEK wetted parts
- Protection class IP67 and IP69 for harsh environments
- Connection via round connector M12 x 1, 5-pin
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical connections, ensuring compliance with local electrical and safety standards.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel and PEEK wetted parts
- Process control in food and pharmaceutical industries
- Continuous and switch level detection in tanks and vessels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and PEEK materials ensure long service life reducing waste
- Energy-efficient electronics minimize power consumption
- Supports hygienic design reducing contamination and waste in food and pharma processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFP0750-N1NMB Level Sensor is available for immediate purchase, ideal for industrial fluid level measurement and hygienic applications.
