LFP0810-GANMB | Level sensors

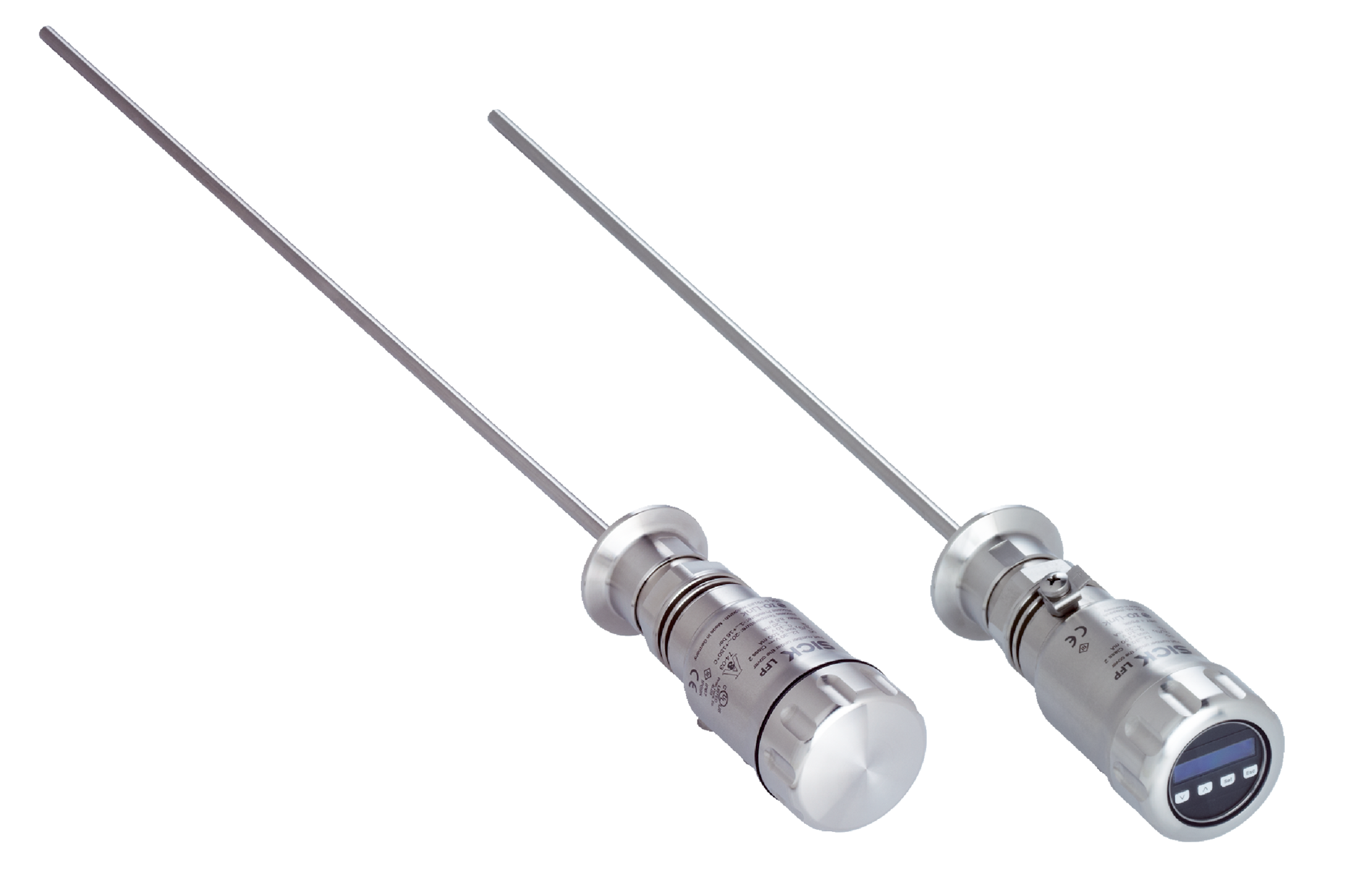

The SICK LFP0810-GANMB level sensor features a hygienic rod probe design for precise fluid level measurement with switch and continuous output, suitable for demanding industrial and hygienic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP0810-GANMB | Level sensors
Brand: SICK
SKU: 1093545
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, Continuous Level Sensor, Switch Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Standard amplifier
- Probe type: Rod probe in hygienic design
- Probe length: 810 mm
- Process pressure: –1 bar to 16 bar
- Process temperature: –20 °C to +150 °C
- Accuracy of sensor element: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe, ≥1.8 with coaxial tube
- Conductivity: No limitation
- Deactivated area at process connection: 25 mm
- Deactivated area at end of probe: ≥10 mm
- MTTF: 194.3 years (EN ISO 13849-1)
- Display: Yes
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC without output load
- Initialization time: ≤2 s
- Protection class: III
- Connection type: Cable connector M12 x 1, 5-pin
- Length of cable: 10 m
- Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Output load: 4 mA to 20 mA < 500 Ohm at Uv > 13.5 V, 4 mA to 20 mA < 400 Ohm at Uv > 12 V, 0 V to 10 V > 750 Ohm at Uv ≥ 14 V
- Hysteresis: ≥2 mm
- Output current: <100 mA
- Inductive load: <1 H
- Capacitive load: <100 nF
- Enclosure rating: IP67 and IP69 (EN 60529)
- Temperature drift: <0.1 mm/K
- Lower signal level: 3.8 mA to 4 mA, 0 V
- Upper signal level: 20 mA to 20.5 mA, 10.5 V
- Wetted parts: Stainless steel 1.4404 / 316L, PEEK
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: G ¾ A
- Housing material: Stainless steel 1.4305
- Housing design: With viewing window made from PMMA (acrylic glass)
- Max. probe load: ≤6 Nm
- Ambient operating temperature: –20 °C to +60 °C
- Ambient storage temperature: –40 °C to +80 °C
- Outdoor use: Only with weather hood
- Dimensions (H x L x W): 810mm x 30mm x 30mm
- Weight: 1.5 kg
Key Features
- Rod probe in hygienic design suitable for fluids
- Measurement types: switch and continuous
- Standard amplifier design with IO-Link communication interface
- High accuracy with ±5 mm sensor element accuracy and ≤2 mm reproducibility
- Wide process pressure range from –1 bar to 16 bar
- Process temperature range from –20 °C to +150 °C
- Stainless steel wetted parts (1.4404 / 316L) and PEEK
- IP67 and IP69 rated enclosure for robust protection
- Display included for easy monitoring
- Cable connector M12 x 1, 5-pin with 10 m cable length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level sensor setup and IO-Link communication configuration to ensure accurate and safe operation.
Applications
- Fluid level measurement in industrial processes
- Food and beverage industry requiring hygienic design
- Chemical and pharmaceutical fluid monitoring
- Continuous and switch level detection in tanks and vessels
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Energy-efficient operation with low power consumption
- Supports hygienic design reducing contamination and waste in food and pharmaceutical industries
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK LFP0810-GANMB Level Sensor is available for immediate purchase, ideal for hygienic fluid level measurement in industrial, food, and pharmaceutical applications.
