LFP1000-G2DMB | Level sensors

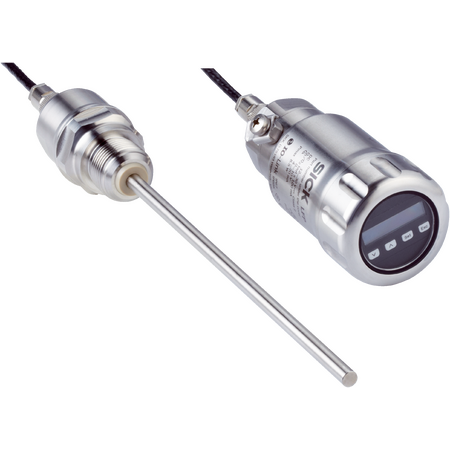

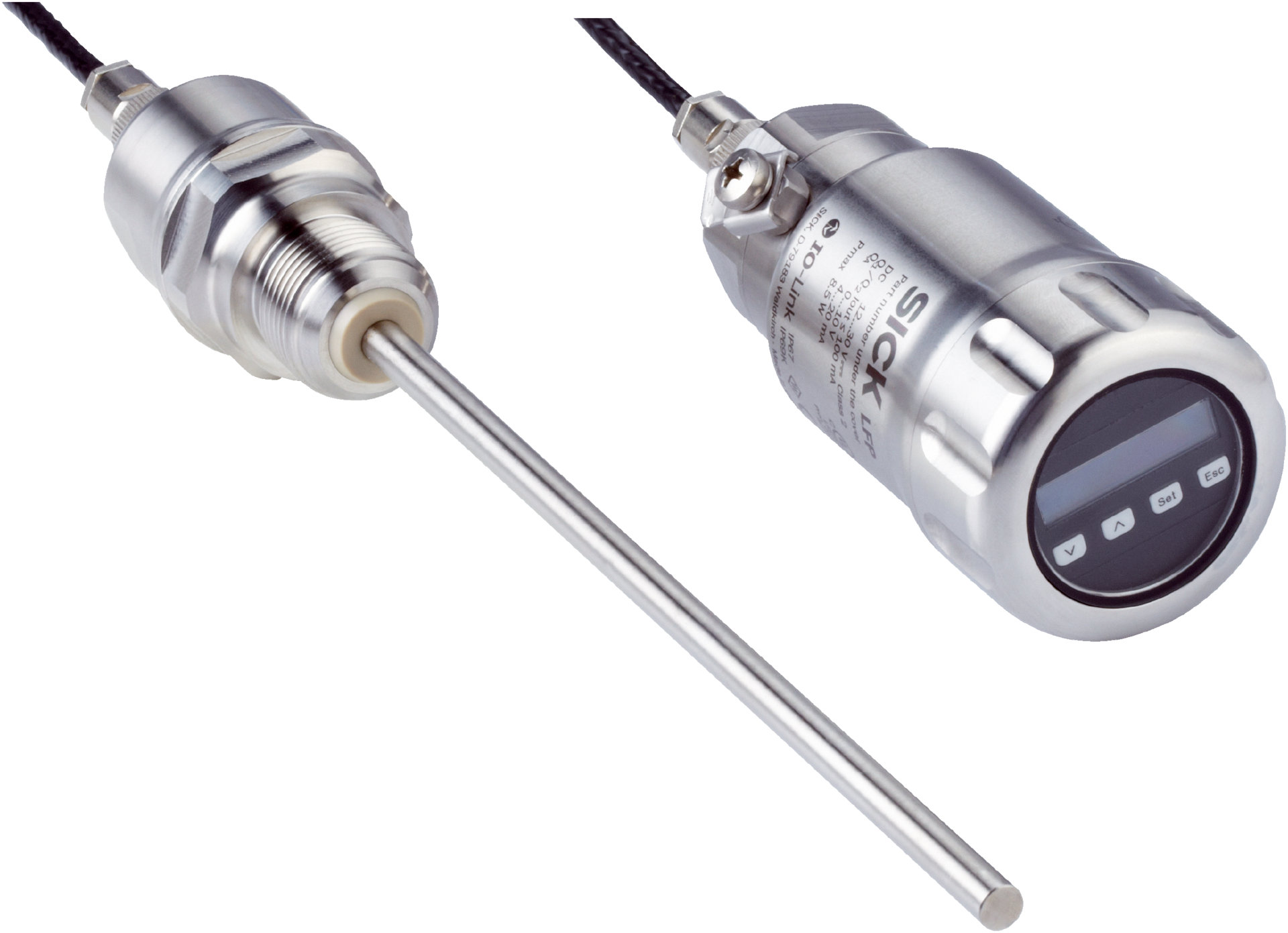

The SICK LFP1000-G2DMB level sensor features a hygienic rod probe and remote amplifier for precise fluid level measurement in industrial applications, supporting switch and continuous measurement with robust stainless steel construction and IO-Link communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP1000-G2DMB | Level sensors
Brand: SICK
SKU: 1071132
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, Continuous Level Sensor, Switch Level Sensor
Technical Specifications
- Dimensions (H x L x W): 50mm x 1050mm x 50mm
- Weight: 1.5 kg
Key Features
- Rod probe in hygienic design with 1000 mm length
- Remote amplifier design for flexible installation
- Measurement types: switch and continuous
- High accuracy with ±5 mm sensor element accuracy and ≤2 mm reproducibility
- IO-Link communication interface for smart connectivity
- Wide supply voltage range from 12 V DC to 30 V DC
- Robust stainless steel housing and wetted parts (1.4404 / 316L and 1.4305)
- High protection rating IP67 and IP69 for harsh environments
- Suitable for process temperatures from -20 °C to +180 °C
- Display included for easy status monitoring
- Certified for food contact and multiple international standards
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct setup, calibration, and compliance with safety standards.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel and PEEK wetted parts
- Continuous and switch level detection in liquids
- Use in environments with process pressures from -1 bar to 16 bar
- Suitable for food and pharmaceutical industries due to hygienic design
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel and PEEK materials ensure long product life reducing waste
- Energy-efficient electronics with low power consumption (≤75 mA at 24 V DC)
- Supports hygienic design reducing contamination and waste in food and pharma industries
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFP1000-G2DMB Level Sensor is available for immediate purchase, ideal for industrial fluid level monitoring and hygienic applications.
