LFP1000-G7DMC | Level sensors

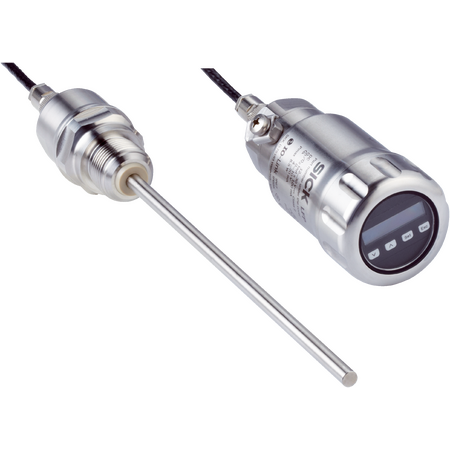

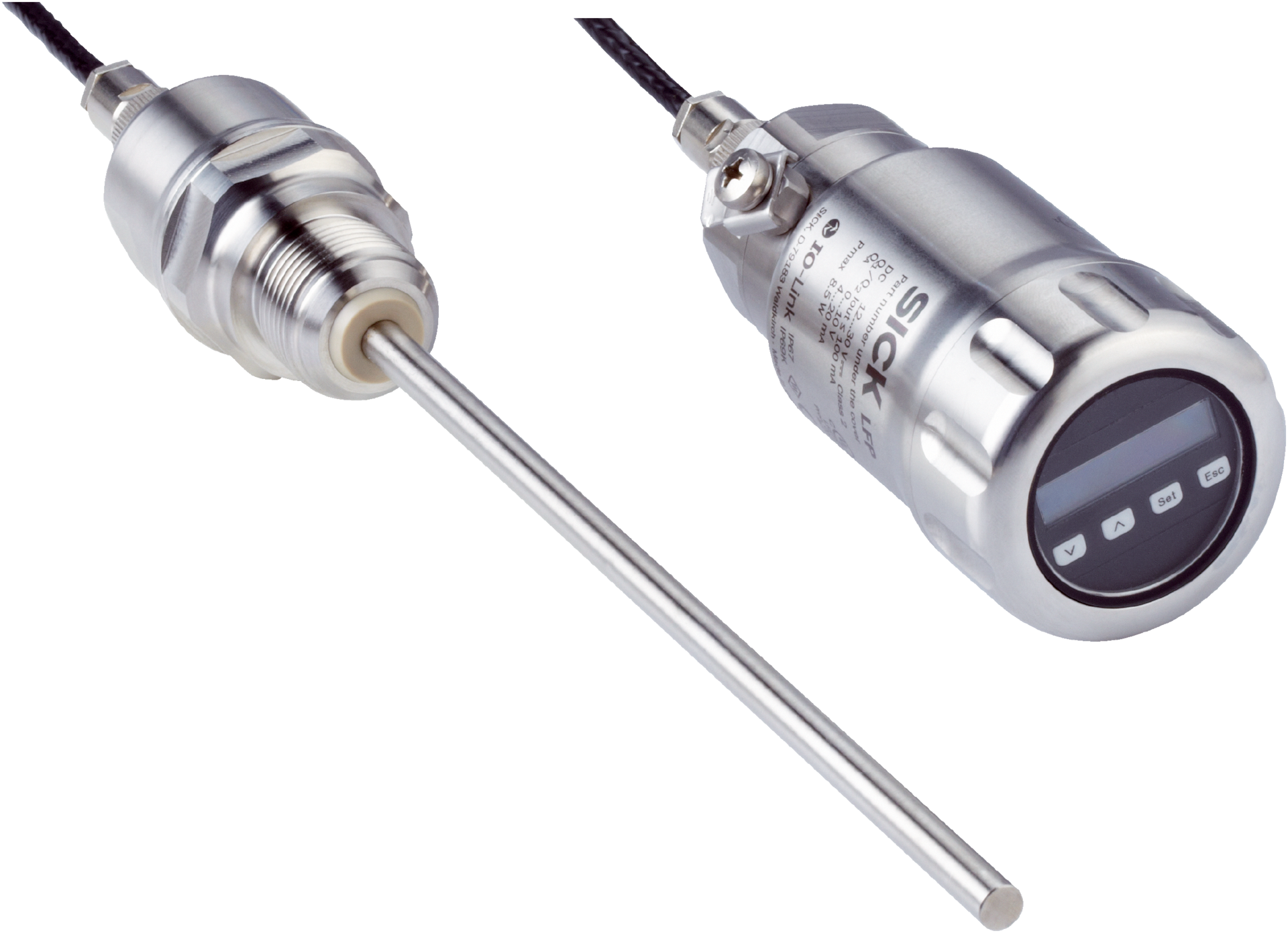

The SICK LFP1000-G7DMC level sensor is designed for precise fluid level measurement with a hygienic rod probe and remote amplifier, suitable for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP1000-G7DMC | Level sensors
Brand: SICK
SKU: 1083790
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, IO-Link Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch and Continuous
- Design: Remote amplifier
- Probe type: Rod probe in hygienic design
- Probe length: 1000 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -20 °C to +180 °C
- Accuracy: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe, ≥1.8 with coaxial tube
- Conductivity: No limitation
- MTTF: 194.3 years (EN ISO 13849-1)
- Display: Yes
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC without output load
- Initialization time: ≤2 s
- Protection class: III
- Connection type: M12 round connector, 8-pin
- Cable length: 3.3 m
- Output signals: 1 x PNP + 3 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Enclosure rating: IP67 and IP69 (EN 60529)
- Temperature drift: <0.1 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L, PEEK
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: G ¾ A
- Housing material: Stainless steel 1.4305
- Max probe load: ≤6 Nm
- Dimensions (H x L x W): 30mm x 1000mm x 30mm
- Weight: 1.5 kg
Key Features
- Rod probe in hygienic design with 1000 mm length
- Remote amplifier design for flexible installation
- High accuracy with ±5 mm sensor element accuracy
- IO-Link communication interface for smart connectivity
- Wide process temperature range from -20 °C to +180 °C
- Robust stainless steel housing and wetted parts
- Protection rating IP67 and IP69 for harsh environments
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and process instrumentation standards to ensure proper setup and compliance with safety regulations.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel probes
- Continuous and switch level detection in tanks and vessels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise fluid level monitoring to reduce waste and spillage
- Durable stainless steel construction extends product life and reduces replacement frequency
- Low power consumption design
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LFP1000-G7DMC Level Sensor is available for immediate purchase, ideal for industrial fluid level measurement applications requiring hygienic design and high accuracy.
