LFP1000-NANMB Level sensors

BRAND: SICK
SKU: 1080637
$3,433.40 List price: $4,315.40
+ −
30 Days Return Electricians Unlock Trade Access

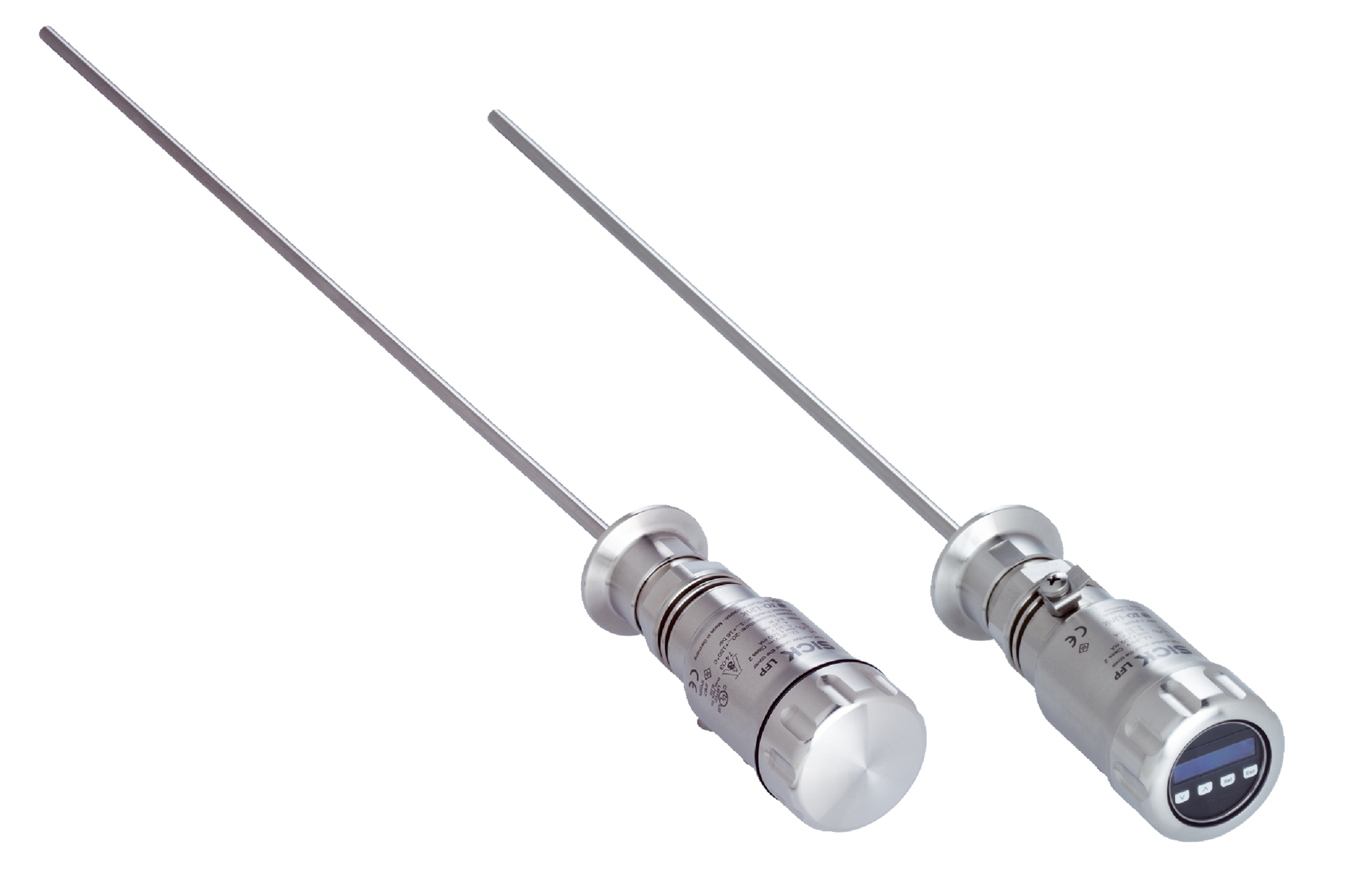

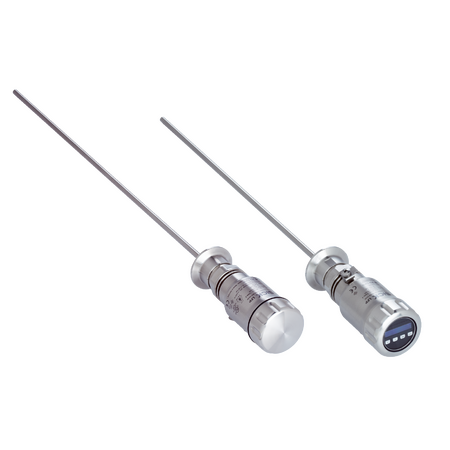

The SICK LFP1000-NANMB level sensor features a hygienic rod probe design for accurate fluid level measurement with switch and continuous output

Product Name/Title: LFP1000-NANMB | Level sensors

Brand: SICK

SKU: 1080637

Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, Continuous Level Transmitter, IO-Link Level Sensor

Technical Specifications
  • Dimensions (H x L x W): 30mm x 1000mm x 30mm
  • Weight: 1.5 kg
Key Features
  • Rod probe in hygienic design with 1000 mm length
  • Measurement types: switch and continuous
  • Standard amplifier design with display
  • Process pressure range from -1 bar to 16 bar
  • Process temperature range from -20 °C to +150 °C
  • High accuracy with ±5 mm sensor element accuracy
  • Reproducibility ≤ 2 mm and resolution of 1 mm
  • Fast response time of 400 ms
  • Communication interface: IO-Link
  • Supply voltage 12 V DC to 30 V DC
  • Output signals include PNP, PNP/NPN, 4 mA to 20 mA, and 0 V to 10 V
  • Protection class IP67 and IP69
  • Wetted parts made of stainless steel 1.4404 / 316L and PEEK
  • Housing with viewing window made from PMMA (acrylic glass)
  • Suitable for outdoor use with weather hood
Professional Installation Requirements
  • Installation by qualified personnel recommended to ensure proper connection and calibration, especially for hygienic and industrial applications.
Applications
  • Fluid level measurement in industrial processes
  • Hygienic applications requiring stainless steel and FDA certified materials
  • Continuous and switch level detection in tanks and vessels
  • Use in food and pharmaceutical industries
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable stainless steel construction ensures long product life reducing waste
  • Energy-efficient electronics with low power consumption ≤ 75 mA
  • Compliant with China RoHS and other environmental certifications
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK LFP1000-NANMB Level Sensor is available for immediate purchase, ideal for fluid level measurement in hygienic and industrial environments.
