LFP1500-G2NMB | Level sensors

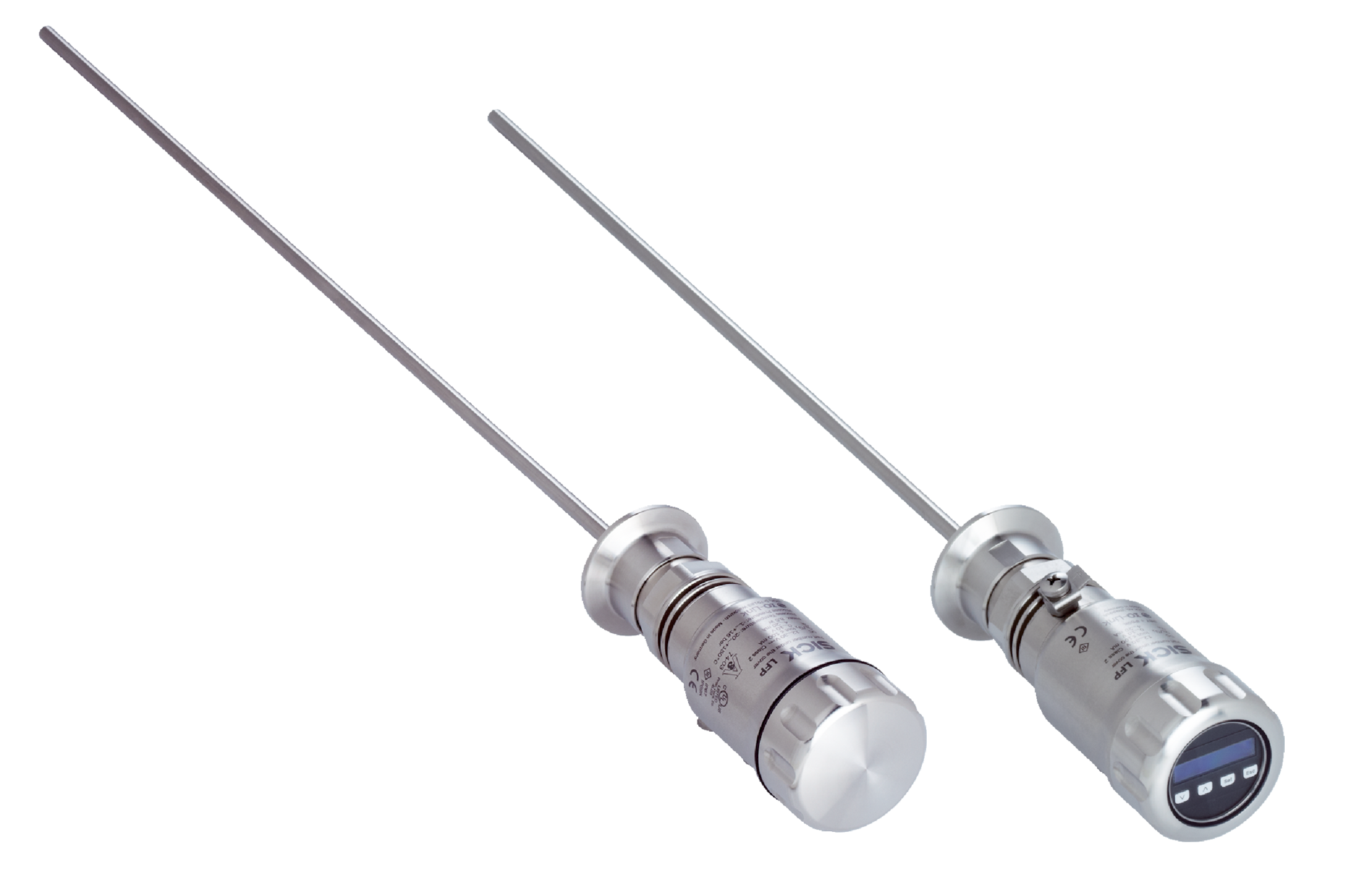

The SICK LFP1500-G2NMB is a hygienic rod probe level sensor designed for accurate fluid measurement with switch and continuous output, featuring robust stainless steel construction and advanced IO-Link communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP1500-G2NMB | Level sensors
Brand: SICK
SKU: 1056297
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, Continuous Level Sensor, Switch Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Standard amplifier
- Probe type: Rod probe in hygienic design
- Probe length: 1500 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -20 °C to +150 °C
- Accuracy of sensor element: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe, ≥1.8 with coaxial tube
- Conductivity: No limitation
- Deactivated area at process connection: 25 mm
- Deactivated area at end of probe: ≥10 mm
- MTTF: 194.3 years (EN ISO 13849-1)
- Display: Yes
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC without output load
- Initialization time: ≤2 s
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Output load: 4 mA to 20 mA < 500 Ohm at Uv > 13.5 V, 4 mA to 20 mA < 400 Ohm at Uv > 12 V, 0 V to 10 V > 750 Ohm at Uv ≥ 14 V
- Hysteresis: ≥2 mm
- Output current: <100 mA
- Inductive load: <1 H
- Capacitive load: <100 nF
- Enclosure rating: IP67 and IP69 (EN 60529)
- Temperature drift: <0.1 mm/K
- Lower signal level: 3.8 mA to 4 mA, 0 V
- Upper signal level: 20 mA to 20.5 mA, 10.5 V
- Wetted parts: Stainless steel 1.4404 / 316L PEEK
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: G ¾ A
- Housing material: Stainless steel 1.4305
- Housing design: With closed cover
- Max. probe load: ≤6 Nm
- Ambient operating temperature: -20 °C to +60 °C
- Ambient temperature, storage: -40 °C to +80 °C
- Outdoor use: Only with weather hood
- Dimensions (H x L x W): 30mm x 1500mm x 30mm
- Weight: 1.5 kg
Key Features
- Rod probe in hygienic design suitable for fluids
- Measurement types: switch and continuous
- Standard amplifier design with display
- Process pressure range from -1 bar to 16 bar
- Process temperature range from -20 °C to +150 °C
- High accuracy with ±5 mm sensor element accuracy
- IO-Link communication interface for easy integration
- Robust stainless steel housing with IP67 and IP69 protection
- FDA certified and EHEDG approved for food contact
- Long mean time to failure (MTTF) of 194.3 years
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level sensor integration and electrical safety standards.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel probes
- Continuous and switch level detection in liquids
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Energy-efficient operation with low power consumption
- Supports hygienic design reducing contamination and waste in food and pharmaceutical industries
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LFP1500-G2NMB Level Sensor is available for immediate purchase, ideal for industrial fluid level measurement applications requiring hygienic design and high accuracy.
