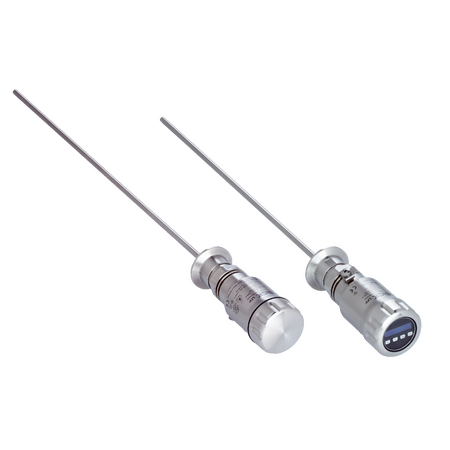

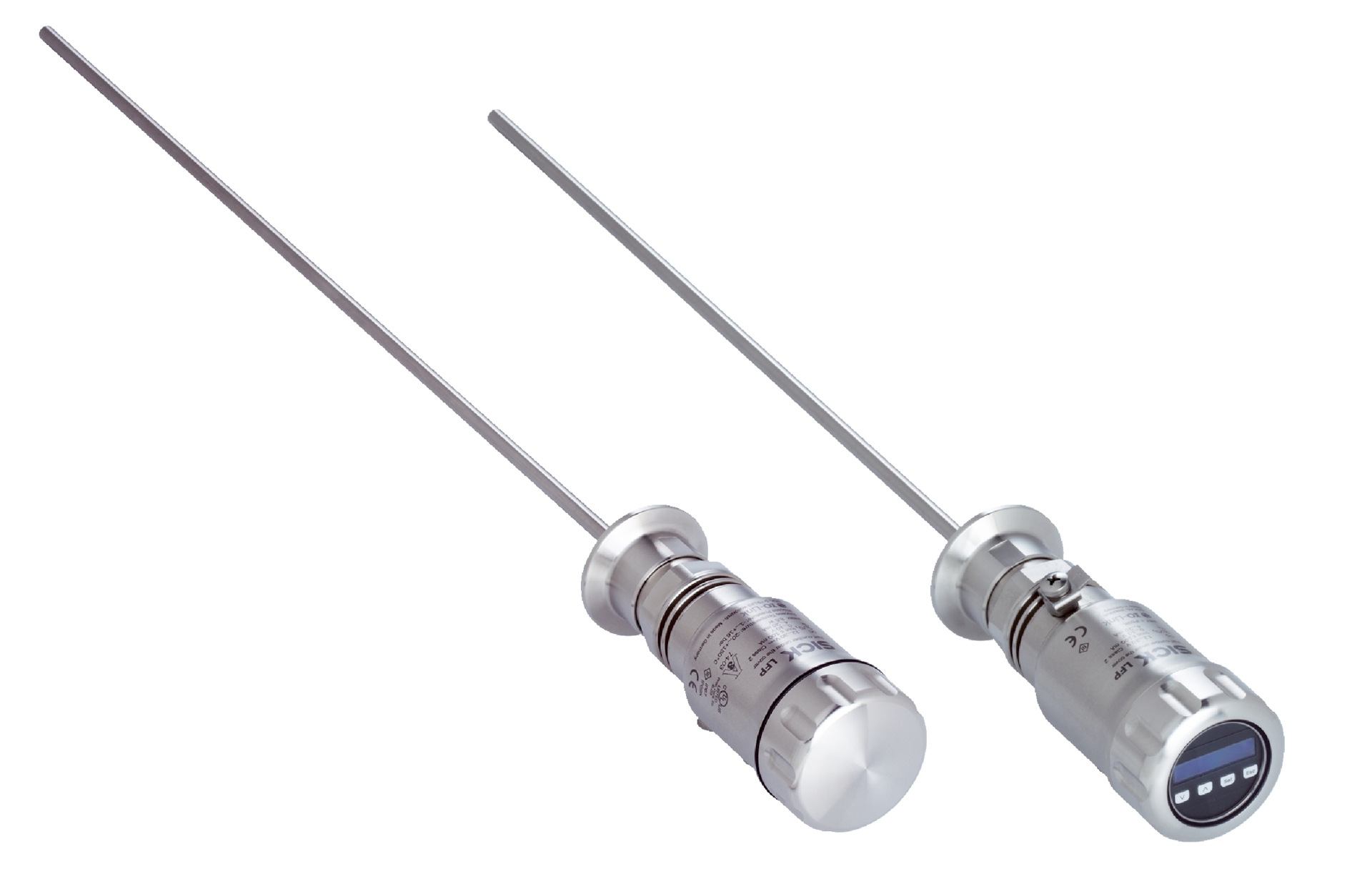

LFP1900-G2NMB | Level sensors
The SICK LFP1900-G2NMB is a hygienic rod probe level sensor designed for fluid measurement with high accuracy and robust stainless steel construction, suitable for industrial and food applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP1900-G2NMB | Level sensors
Brand: SICK
SKU: 1056301
Alternatively Known As: Fluid Level Sensor, Hygienic Rod Level Sensor, Continuous Level Sensor, Switch Level Sensor, IO-Link Level Sensor
Technical Specifications
- Dimensions (H x L x W): 40mm x 1900mm x 40mm
- Weight: 1.5 kg
Key Features
- Rod probe in hygienic design suitable for fluids
- Measurement modes: switch and continuous
- Standard amplifier design with display
- Process pressure range from -1 bar to 16 bar
- Process temperature range from -20 °C to +150 °C
- High accuracy sensor element with ±5 mm precision
- Reproducibility ≤ 2 mm and resolution of 1 mm
- Fast response time of 400 ms
- Communication interface: IO-Link
- Supply voltage 12 V DC to 30 V DC
- Power consumption ≤ 75 mA at 24 V DC
- Protection class III with IP67 and IP69 enclosure rating
- Wetted parts made of stainless steel 1.4404 / 316L and PEEK
- Surface roughness Ra ≤ 0.8 µm for hygienic compliance
- Process connection G ¾ A with max probe load ≤ 6 Nm
- Certified with EU, UK, ACMA, Moroccan conformity, FDA, EHEDG, cULus, and IO-Link
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and calibration, especially for hygienic and industrial applications.
Applications
- Fluid level measurement in industrial processes
- Food and beverage industry requiring hygienic design
- Chemical and pharmaceutical fluid monitoring
- Continuous and switch level detection in tanks and vessels
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Energy-efficient operation with low power consumption
- Hygienic design minimizes contamination and supports sustainable food production
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK LFP1900-G2NMB Level Sensor is available for immediate purchase, ideal for fluid level monitoring in hygienic and industrial environments.
