LFP2500-G1CMB | Level sensors

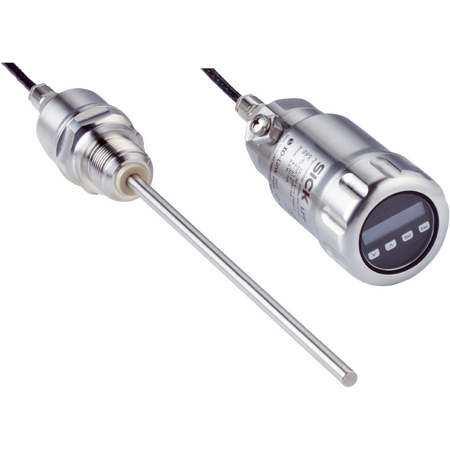

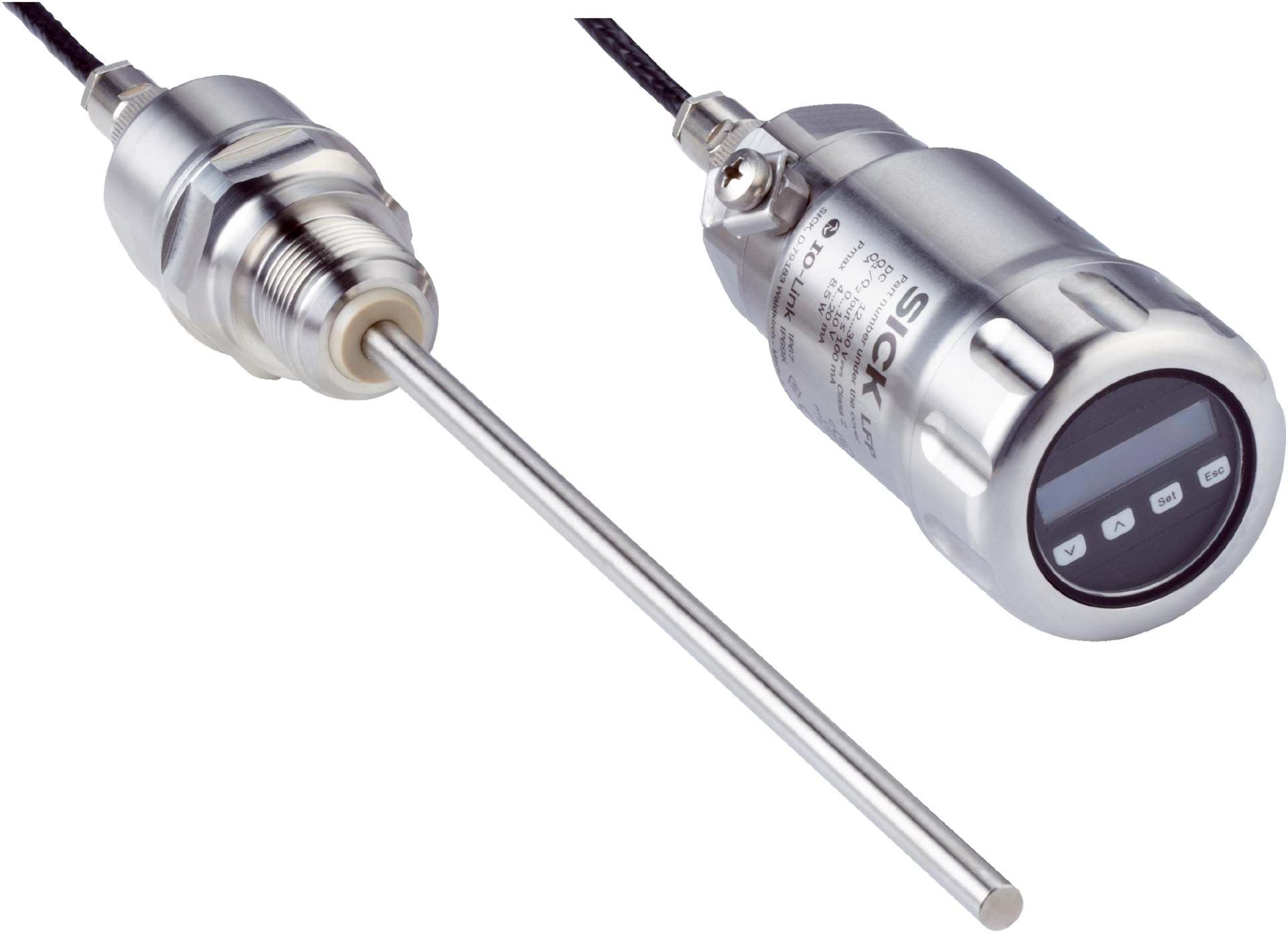

The SICK LFP2500-G1CMB level sensor features a hygienic rod probe and remote amplifier for precise fluid level measurement in industrial and hygienic applications, supporting switch and continuous measurement with robust stainless steel construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP2500-G1CMB | Level sensors
Brand: SICK
SKU: 1088398
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, Continuous Level Transmitter, Switch Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Remote amplifier
- Probe type: Rod probe in hygienic design
- Probe length: 2500 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -20 °C to +180 °C
- Accuracy: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC
- Connection type: Round connector M12 x 1, 5-pin
- Output signals: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Enclosure rating: IP67 and IP69
- Wetted parts: Stainless steel 1.4404 / 316L PEEK
- Housing material: Stainless steel 1.4305 with PMMA viewing window
- Max probe load: ≤6 Nm
- Ambient operating temperature: -20 °C to +60 °C
- Dimensions (H x L x W): 40mm x 2500mm x 40mm
- Weight: 2.5 kg
Key Features
- Suitable for fluids with switch and continuous measurement
- Rod probe in hygienic design with 2500 mm length
- Remote amplifier design with display
- High accuracy ±5 mm and reproducibility ≤2 mm
- IO-Link communication interface
- Wide process pressure range from -1 bar to 16 bar
- Process temperature range from -20 °C to +180 °C
- Stainless steel wetted parts and housing with PMMA viewing window
- Protection rating IP67 and IP69 for harsh environments
- FDA certified and compliant with multiple international standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical connections, ensuring compliance with local electrical and safety standards.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel probes
- Continuous and switch level detection in tanks and vessels
- Food and beverage industry due to FDA certified materials
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Energy-efficient electronics minimize power consumption
- Supports hygienic design reducing contamination and waste in food processing
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFP2500-G1CMB level sensor is available for immediate purchase, ideal for industrial fluid level measurement and hygienic applications.
