LFP2800-G1NMB | Level sensors

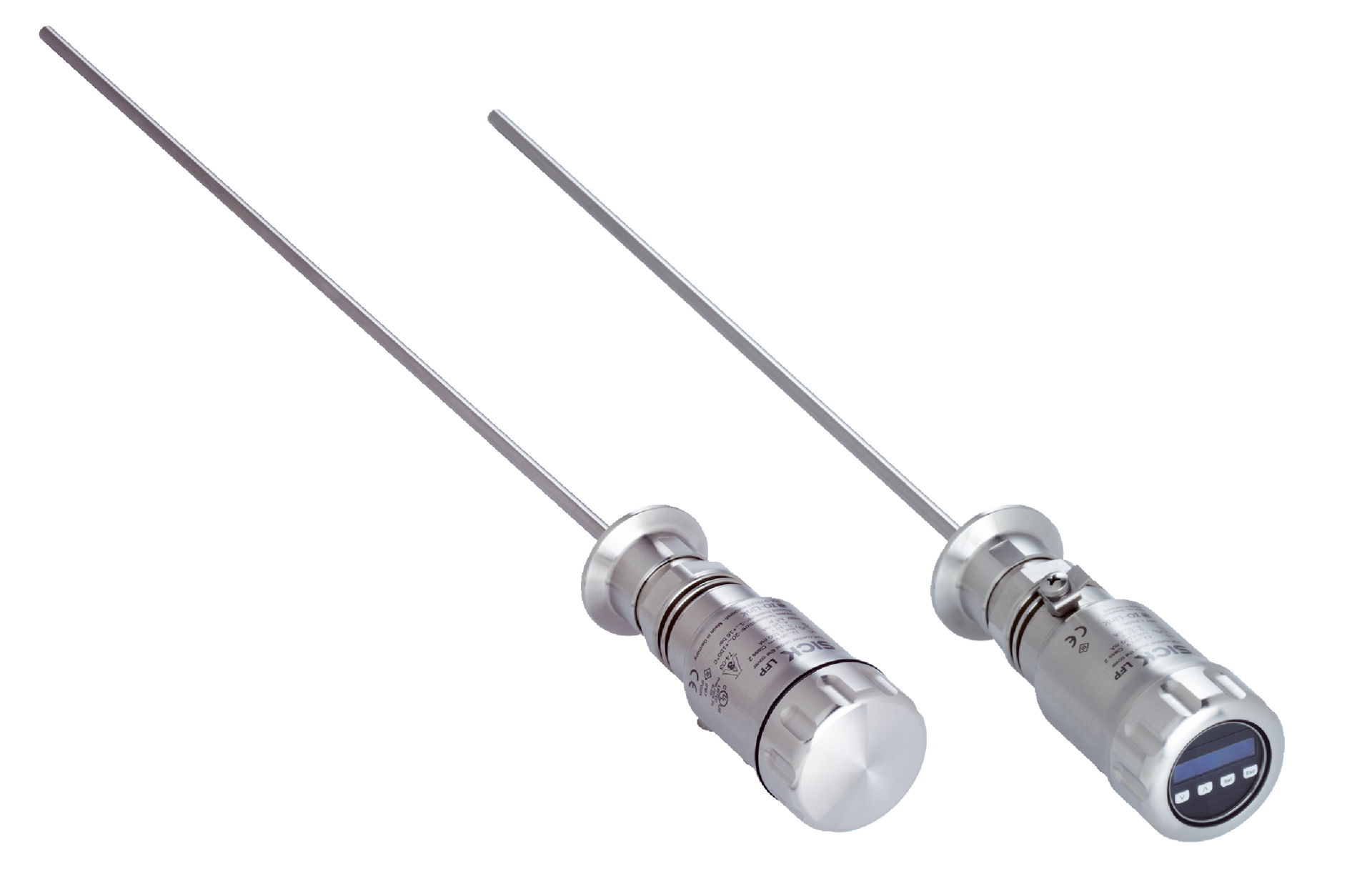

The SICK LFP2800-G1NMB level sensor is designed for precise fluid level measurement with hygienic rod probe construction, suitable for demanding industrial and food applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP2800-G1NMB | Level sensors
Brand: SICK
SKU: 1064856
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, Continuous Level Sensor, Switch Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Standard amplifier
- Probe type: Rod probe in hygienic design
- Probe length: 2800 mm
- Process pressure: –1 bar to 16 bar
- Process temperature: –20 °C to +150 °C
- Accuracy of sensor element: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe, ≥1.8 with coaxial tube
- Conductivity: No limitation
- Deactivated area at process connection: 25 mm
- Deactivated area at end of probe: ≥10 mm
- MTTF: 194.3 years (EN ISO 13849-1)
- Display: Yes
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC without output load
- Initialization time: ≤2 s
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Output load: 4 mA to 20 mA < 500 Ohm at Uv > 13.5 V, 4 mA to 20 mA < 400 Ohm at Uv > 12 V, 0 V to 10 V > 750 Ohm at Uv ≥ 14 V
- Hysteresis: ≥2 mm
- Output current: <100 mA
- Inductive load: <1 H
- Capacitive load: <100 nF
- Enclosure rating: IP67 and IP69 (EN 60529)
- Temperature drift: <0.1 mm/K
- Lower signal level: 3.8 mA to 4 mA, 0 V
- Upper signal level: 20 mA to 20.5 mA, 10.5 V
- Wetted parts: Stainless steel 1.4404 / 316L PEEK
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: G ¾ A
- Housing material: Stainless steel 1.4305
- Housing design: With viewing window made from PMMA (acrylic glass)
- Max. probe load: ≤6 Nm
- Ambient operating temperature: –20 °C to +60 °C
- Ambient temperature, storage: –40 °C to +80 °C
- Outdoor use: Only with weather hood
- Dimensions (H x L x W): 2800mm x 30mm x 30mm
- Weight: 2.5 kg
Key Features
- Rod probe in hygienic design suitable for fluids
- Standard amplifier design with switch and continuous measurement
- High accuracy with ±5 mm sensor element accuracy and ≤2 mm reproducibility
- Robust stainless steel 1.4404 / 316L wetted parts and housing
- IP67 and IP69 rated enclosure for harsh environments
- Communication via IO-Link interface
- Wide process temperature range from –20 °C to +150 °C
- Process pressure tolerance from –1 bar to 16 bar
- Display included for easy monitoring
- FDA certified and EHEDG approved for food contact applications
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level sensor setup and IO-Link communication protocols to ensure proper operation and safety.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel and PEEK materials
- Continuous and switch level detection in tanks and vessels
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Energy-efficient electronics minimize power consumption
- Compliant with food safety standards reducing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK LFP2800-G1NMB level sensor is available for immediate purchase, ideal for hygienic fluid level measurement in industrial and food processing applications.
