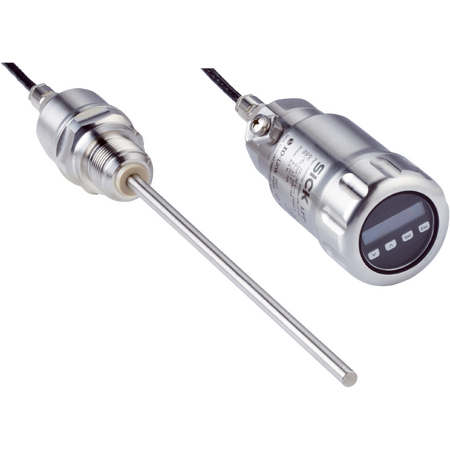

LFP3000-N1CMB | Level sensors

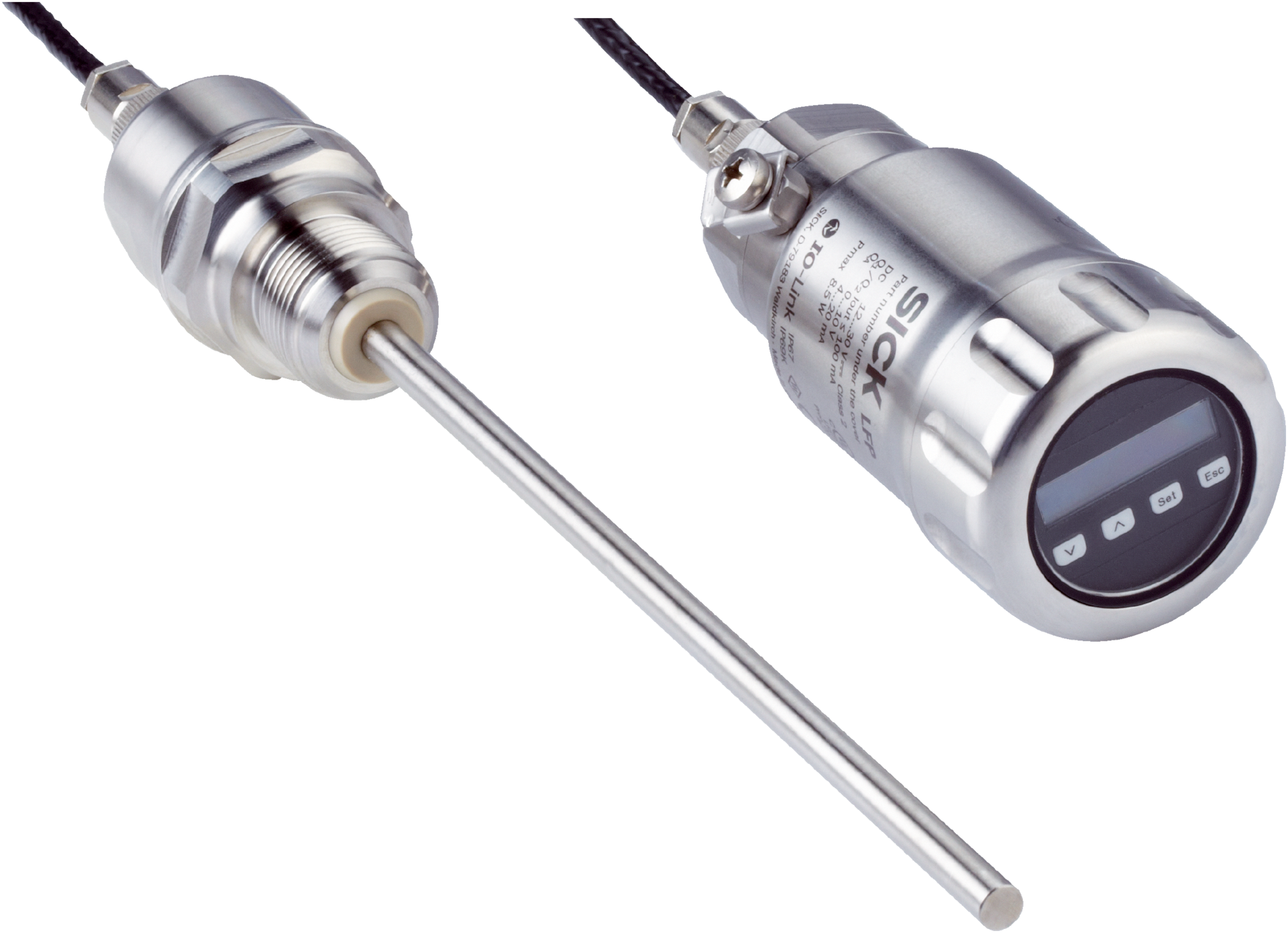

The SICK LFP3000-N1CMB level sensor features a hygienic rod probe and remote amplifier for precise fluid level measurement in demanding industrial environments, supporting continuous and switch measurement with robust stainless steel construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP3000-N1CMB | Level sensors
Brand: SICK
SKU: 1072032
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, Continuous Level Sensor, Switch Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch and Continuous
- Design: Remote amplifier
- Probe type: Rod probe in hygienic design
- Probe length: 3000 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -20°C to +180°C
- Accuracy: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe, ≥1.8 with coaxial tube
- Conductivity: No limitation
- MTTF: 194.3 years (EN ISO 13849-1)
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC without output load
- Initialization time: ≤2 s
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Cable length: 2 m
- Output signals: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Enclosure rating: IP67 and IP69
- Temperature drift: <0.1 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L PEEK
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: ¾" NPT
- Housing material: Stainless steel 1.4305
- Housing design: With viewing window made from PMMA
- Max probe load: ≤6 Nm
- Dimensions (H x L x W): 50mm x 3000mm x 50mm
- Weight: 2.5 kg
Key Features
- Rod probe in hygienic design with 3000 mm length
- Remote amplifier design for flexible installation
- High accuracy sensor element with ±5 mm accuracy and ≤2 mm reproducibility
- IO-Link communication interface for easy integration
- Robust stainless steel housing with IP67 and IP69 protection ratings
- Wide supply voltage range from 12 V DC to 30 V DC
- Display included for easy status monitoring
- Suitable for fluids with no conductivity limitation
- FDA certified and food contact material compliant
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection, calibration, and compliance with safety standards.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel and FDA certified materials
- Continuous and switch level detection in tanks and vessels
- Use in environments with process pressures from -1 bar to 16 bar and temperatures from -20°C to +180°C
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Energy-efficient electronics minimize power consumption
- Compliant with RoHS and FDA standards ensuring environmentally safe materials
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFP3000-N1CMB level sensor is available for immediate purchase, ideal for hygienic fluid level measurement in industrial and food processing applications.
