LFP4000-G1BMB | Level sensors

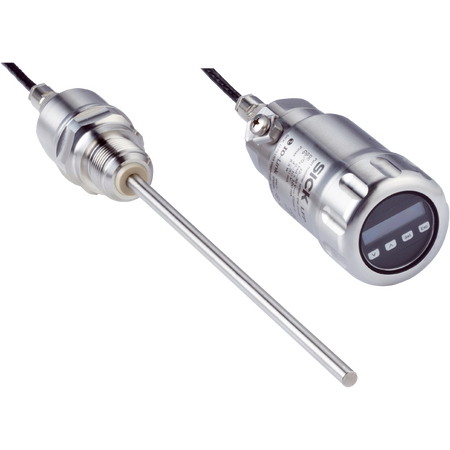

The SICK LFP4000-G1BMB level sensor features a hygienic rod probe and remote amplifier design for precise fluid level measurement in industrial applications, supporting multiple output signals and robust stainless steel construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP4000-G1BMB | Level sensors
Brand: SICK
SKU: 1072030
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, Continuous Level Sensor, Switch Level Sensor
Technical Specifications
- Dimensions (H x L x W): 50mm x 4000mm x 50mm
- Weight: 2.5 kg
Key Features
- Rod probe in hygienic design with 4000 mm length
- Remote amplifier design for flexible installation
- High accuracy with ±5 mm sensor element accuracy and ≤2 mm reproducibility
- IO-Link communication interface for smart connectivity
- Robust stainless steel housing with IP67 and IP69 protection ratings
- Wide supply voltage range from 12 V DC to 30 V DC
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
- Suitable for fluids with no conductivity limitation
- Display included for easy monitoring
- Long mean time to failure (MTTF) of 194.3 years
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel and PEEK wetted parts
- Continuous and switch level detection in tanks and vessels
- Use in environments with process pressures from -1 bar to 16 bar
- Suitable for temperatures from -20 °C to +180 °C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel and PEEK materials ensure long product life reducing waste
- Energy-efficient electronics with low power consumption (≤75 mA at 24 V DC)
- Compliant with China RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFP4000-G1BMB Level Sensor is available for immediate purchase, ideal for industrial fluid level monitoring and hygienic process applications.
