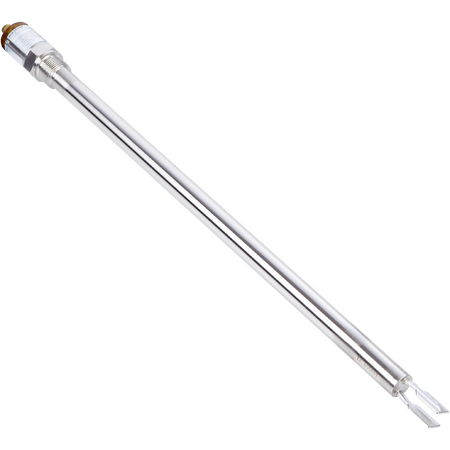

LFV230-XAHCNCPV0110 | Level sensors
The SICK LFV230-XAHCNCPV0110 is a tuning fork level sensor designed for fluid level detection with high accuracy and robust stainless steel construction, suitable for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFV230-XAHCNCPV0110 | Level sensors
Brand: SICK
SKU: 6051510
Alternatively Known As: Tuning Fork Level Sensor, Fluid Level Switch, LFV230 Level Sensor, SICK Level Detector
Technical Specifications
- Medium: Fluids
- Measurement: Switch
- Probe type: Tuning fork
- Probe length: 110 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +150 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy of sensor element: ± 2 mm
- Reproducibility: ≤ 1 mm
- Viscosity: 0.1 mPas to 10,000 mPas
- Resolution: ≤ 1 mm
- Response time: 500 ms
- MTBF: 1.25 x 10^7 hours
- Supply voltage: 20 V AC/DC to 253 V AC/DC
- Power consumption: ≤ 4.2 mA
- Initialization time: < 3 s
- Connection type: Valve plug DIN 43650
- Output signal: Non-contact switch
- Hysteresis: 2 mm
- Inductive load: ≤ 1 H
- Capacitive load: 100 nF
- Enclosure rating: IP65
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: Triclamp 2'' (PN 16, 316L, Ra < 0.8μm)
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 110mm x 110mm x 30mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable level switching
- Suitable for fluids with density from 0.7 g/cm³ to 2.5 g/cm³
- Process pressure range from -1 bar to 64 bar
- Wide process temperature range from -40 °C to +150 °C
- Non-contact switch output signal
- Robust stainless steel wetted parts (1.4404 / 316L)
- IP65 rated enclosure for protection against dust and water
- Fast response time of 500 ms
- High accuracy with ±2 mm sensor element accuracy
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with process instrumentation and electrical safety standards.
Applications
- Fluid level detection in industrial processes
- Measurement and monitoring of liquids in tanks and pipelines
- Suitable for food, chemical, and pharmaceutical industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact switching reduces wear and tear, extending product life
- Stainless steel construction ensures durability and recyclability
- Low power consumption (≤ 4.2 mA) reduces energy usage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV230-XAHCNCPV0110 tuning fork level sensor is available for immediate purchase, ideal for industrial fluid level monitoring applications.
