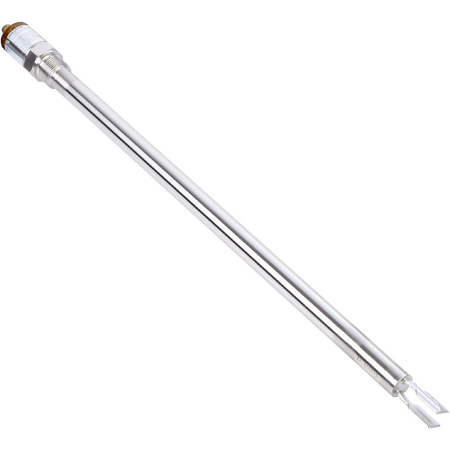

LFV230-XASGATPV0350 | Level sensors

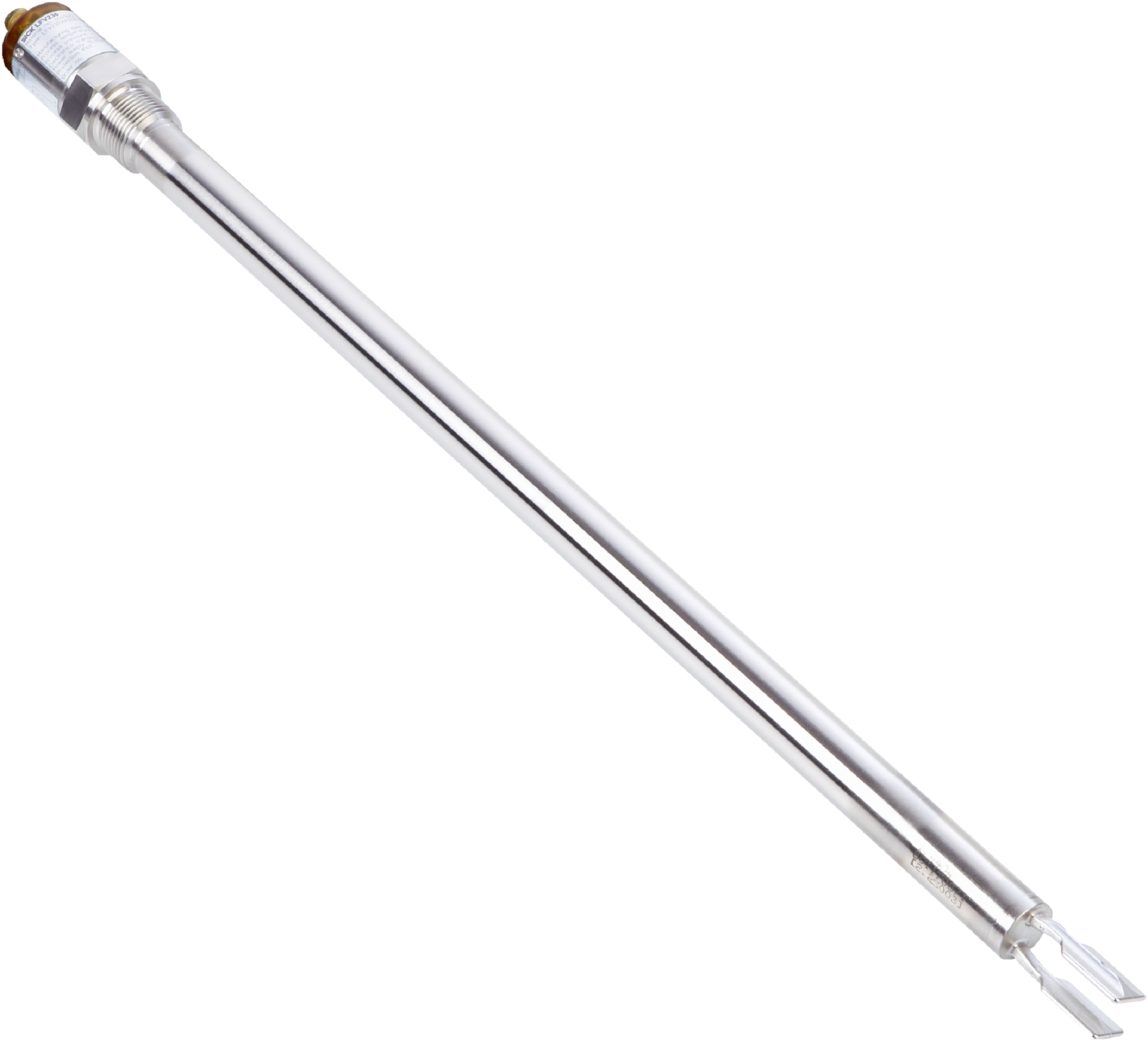

The SICK LFV230-XASGATPV0350 is a tuning fork level sensor designed for fluid level detection with high accuracy and robust stainless steel construction, suitable for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFV230-XASGATPV0350 | Level sensors
Brand: SICK
SKU: 6067627
Alternatively Known As: Tuning Fork Level Sensor, Fluid Level Switch, LFV230 Level Sensor, SICK Level Detector
Technical Specifications
- Medium: Fluids
- Measurement: Switch
- Probe length: 350 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +100 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy of sensor element: ± 2 mm
- Reproducibility: ≤ 1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤ 1 mm
- Response time: 500 ms
- MTBF: 1.25 x 10^7 hours
- Supply voltage: 9.6 V DC to 35 V DC
- Residual ripple: ≤ 5 V pp
- Power consumption: ≤ 10 mA
- Initialization time: < 2 s
- Connection type: Valve plug DIN 43650
- Output signal: Transistor output PNP
- Hysteresis: 2 mm
- Output current: < 250 mA
- Inductive load: ≤ 1 H
- Capacitive load: 100 nF
- Enclosure rating: IP65
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1 A PN 64
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 350mm x 30mm x 30mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable level switching
- Suitable for fluids with densities from 0.7 g/cm³ to 2.5 g/cm³
- Process pressure range from -1 bar to 64 bar
- Wide process temperature range from -40 °C to +100 °C
- High accuracy with ±2 mm sensor element precision
- Fast response time of 500 ms
- Robust stainless steel wetted parts (1.4404 / 316L)
- IP65 rated enclosure for protection against dust and water
- Valve plug DIN 43650 connection type
- Transistor output PNP with output current less than 250 mA
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards.
Applications
- Fluid level detection in industrial tanks and containers
- Process control in chemical, pharmaceutical, and food industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise fluid level monitoring to reduce waste and spillage
- Durable stainless steel construction extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV230-XASGATPV0350 tuning fork level sensor is available for immediate purchase, ideal for industrial fluid level monitoring applications.
