LFV230-XASGBTPM0200 | Level sensors

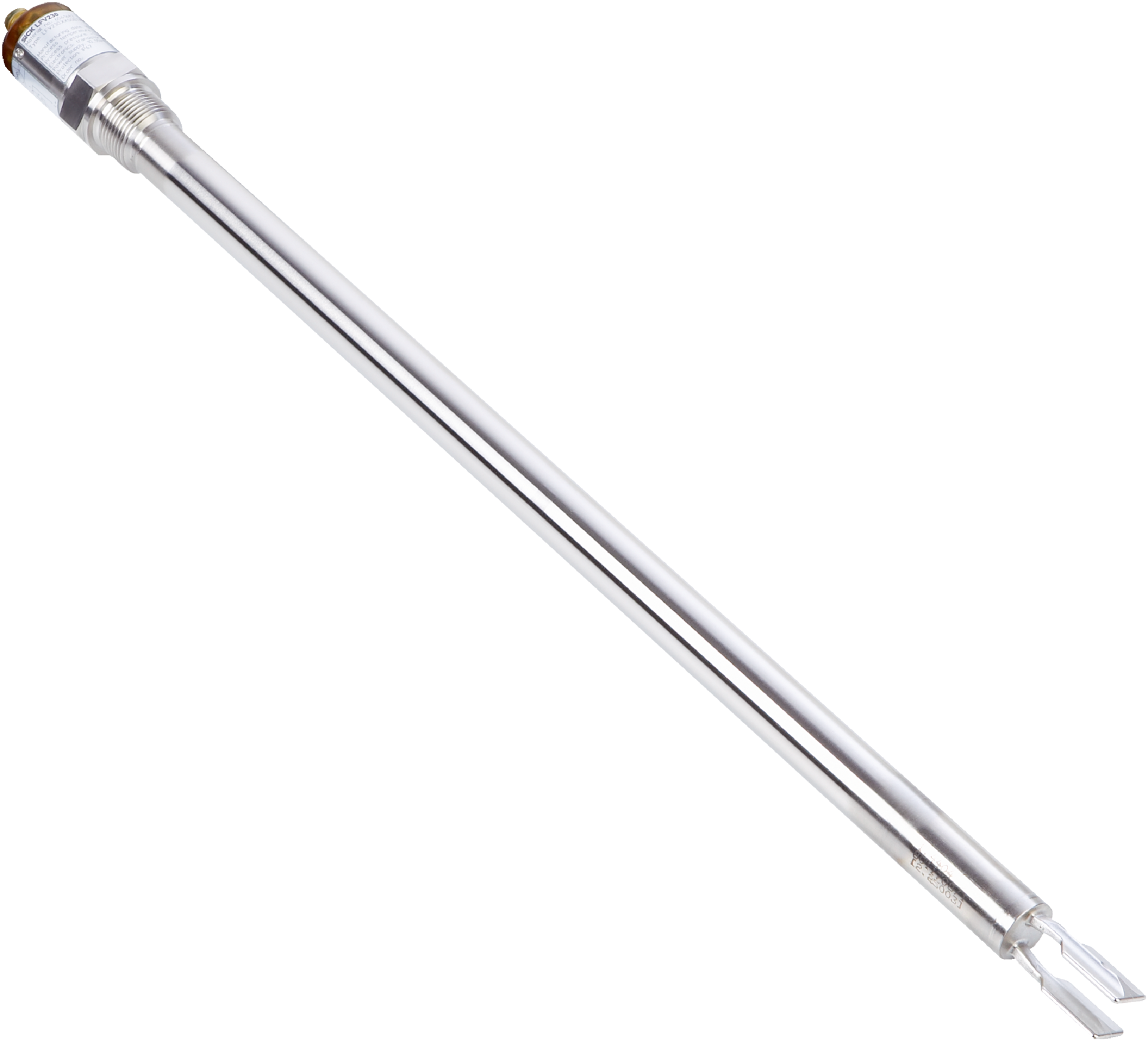

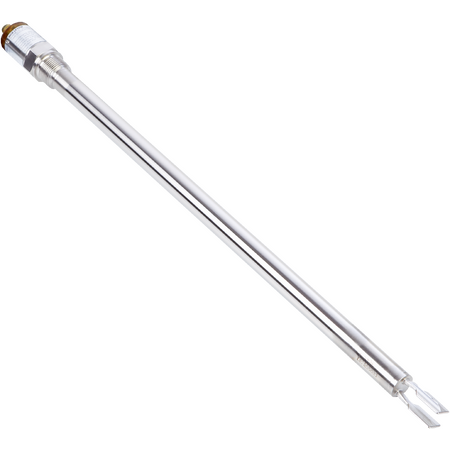

The SICK LFV230-XASGBTPM0200 is a tuning fork level sensor designed for fluid level switching applications, offering high accuracy, robust stainless steel construction, and IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFV230-XASGBTPM0200 | Level sensors
Brand: SICK
SKU: 6051395
Alternatively Known As: Tuning Fork Level Sensor, Fluid Level Switch, LFV230 Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch
- Probe length: 200 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +100 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤1 mm
- Response time: 500 ms
- MTBF: 1.25×10^7 hours
- Supply voltage: 9.6 V DC to 35 V DC
- Residual ripple: ≤5 V pp
- Power consumption: ≤10 mA
- Initialization time: <2 s
- Connection type: M12 round connector, 4-pin
- Output signal: Transistor output PNP
- Hysteresis: 2 mm
- Output current: <250 mA
- Inductive load: ≤1 H
- Capacitive load: 100 nF
- Enclosure rating: IP67
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G ¾ A PN 64
- Dimensions (H x L x W): 200mm x 30mm x 30mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable level switching
- Suitable for fluids with fill material density from 0.7 g/cm³ to 2.5 g/cm³
- Process pressure range from -1 bar to 64 bar
- Operating temperature range from -40 °C to +100 °C
- High accuracy with ±2 mm sensor element precision
- Fast response time of 500 ms
- IP67 rated enclosure for protection against dust and water
- Stainless steel wetted parts (1.4404 / 316L) for corrosion resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards.
Applications
- Fluid level detection in industrial processes
- Measurement and monitoring of liquids in tanks and pipelines
- Suitable for use in chemical, water treatment, and food industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption (≤ 10 mA) supports energy-efficient operation
- Reliable level detection helps prevent spills and environmental contamination
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LFV230-XASGBTPM0200 tuning fork level sensor is available for immediate purchase, ideal for industrial fluid level monitoring applications.
