LFV230-XXHCNIPM0150 | Level sensors

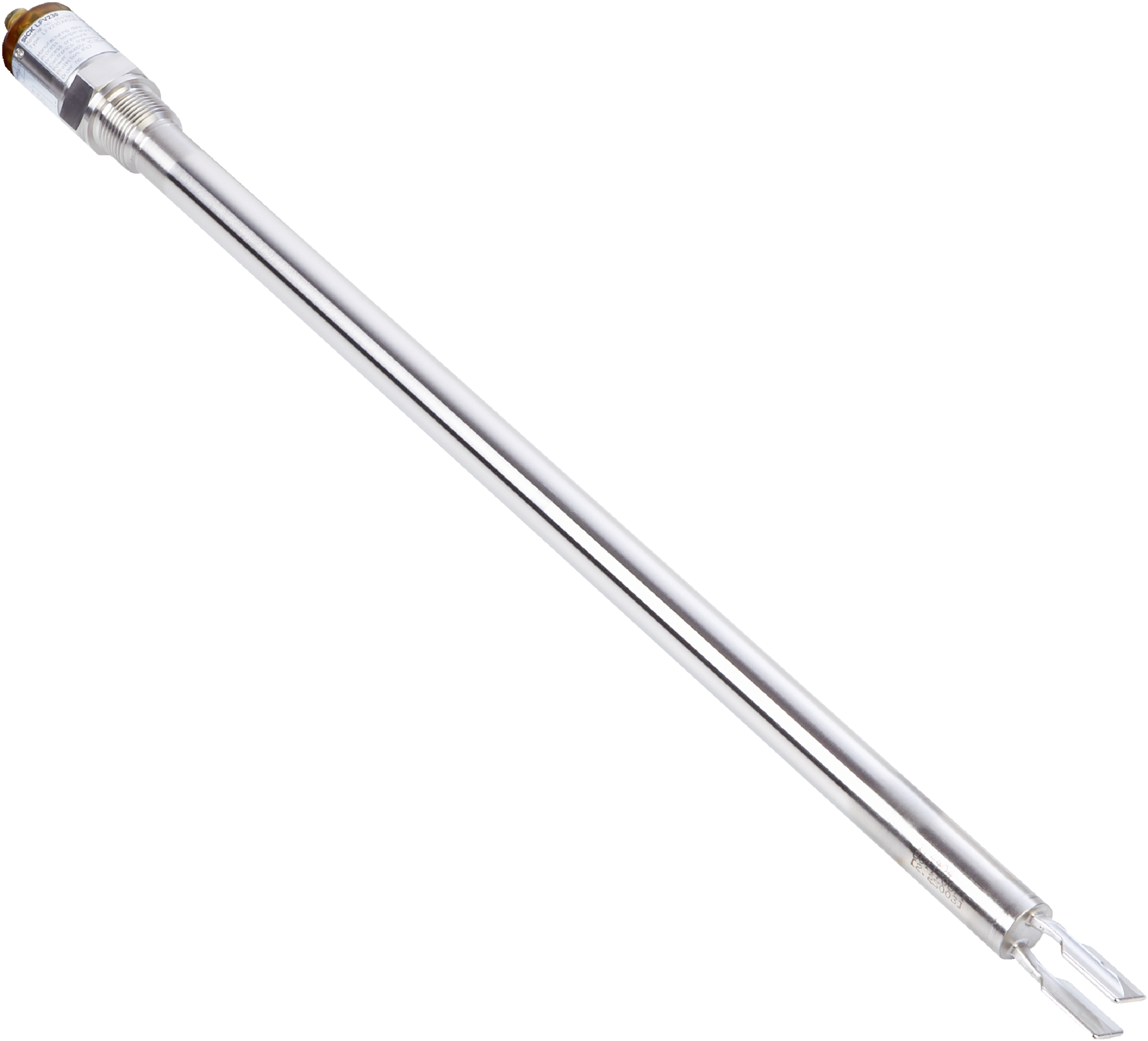

The SICK LFV230-XXHCNIPM0150 is a tuning fork level sensor designed for fluid measurement with high accuracy and robust stainless steel construction, suitable for industrial and hygienic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFV230-XXHCNIPM0150 | Level sensors
Brand: SICK
SKU: 6066422
Alternatively Known As: Tuning Fork Level Sensor, Fluid Level Switch, IO-Link Level Sensor, Hygienic Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch
- Probe type: Tuning fork
- Probe length: 150 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +150 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy of sensor element: ± 2 mm
- Reproducibility: ≤ 1 mm
- Viscosity: 0.1 mPas to 10,000 mPas
- Resolution: ≤ 1 mm
- Response time: 500 ms
- MTBF: 1.25 x 10^7 hours
- Communication interface: IO-Link
- Supply voltage: 18 V DC to 30 V DC
- Residual ripple: ≤ 5 V pp
- Power consumption: ≤ 10 mA
- Initialization time: < 2 s
- Connection type: M12 round connector, 4-pin
- Output signal: Transistor output PNP with IO-Link
- Hysteresis: 2 mm
- Output current: < 250 mA
- Inductive load: ≤ 1 H
- Capacitive load: 100 nF
- Enclosure rating: IP67
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: Triclamp 2'' (PN 16, 316L, Ra < 0.8μm)
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 150mm x 150mm x 30mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable fluid level switching
- Process pressure range from -1 bar to 64 bar
- Wide process temperature range from -40 °C to +150 °C
- High accuracy with ±2 mm sensor element precision
- IO-Link communication interface for smart connectivity
- Robust stainless steel 316L wetted parts with hygienic surface finish
- IP67 rated enclosure for protection against dust and water
- Fast response time of 500 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and hygienic process connections to ensure proper setup and compliance with safety standards.
Applications
- Fluid level detection in industrial processes
- Measurement and monitoring of liquids in tanks and pipelines
- Food and beverage industry for hygienic fluid level control
- Chemical and pharmaceutical fluid level monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Energy-efficient operation with low power consumption
- Supports hygienic processes reducing contamination and waste
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against defects.
Available Now
The SICK LFV230-XXHCNIPM0150 tuning fork level sensor is available for immediate purchase, ideal for industrial fluid level monitoring and hygienic applications.
