LFV230-XXSNBTPM1000 | Level sensors

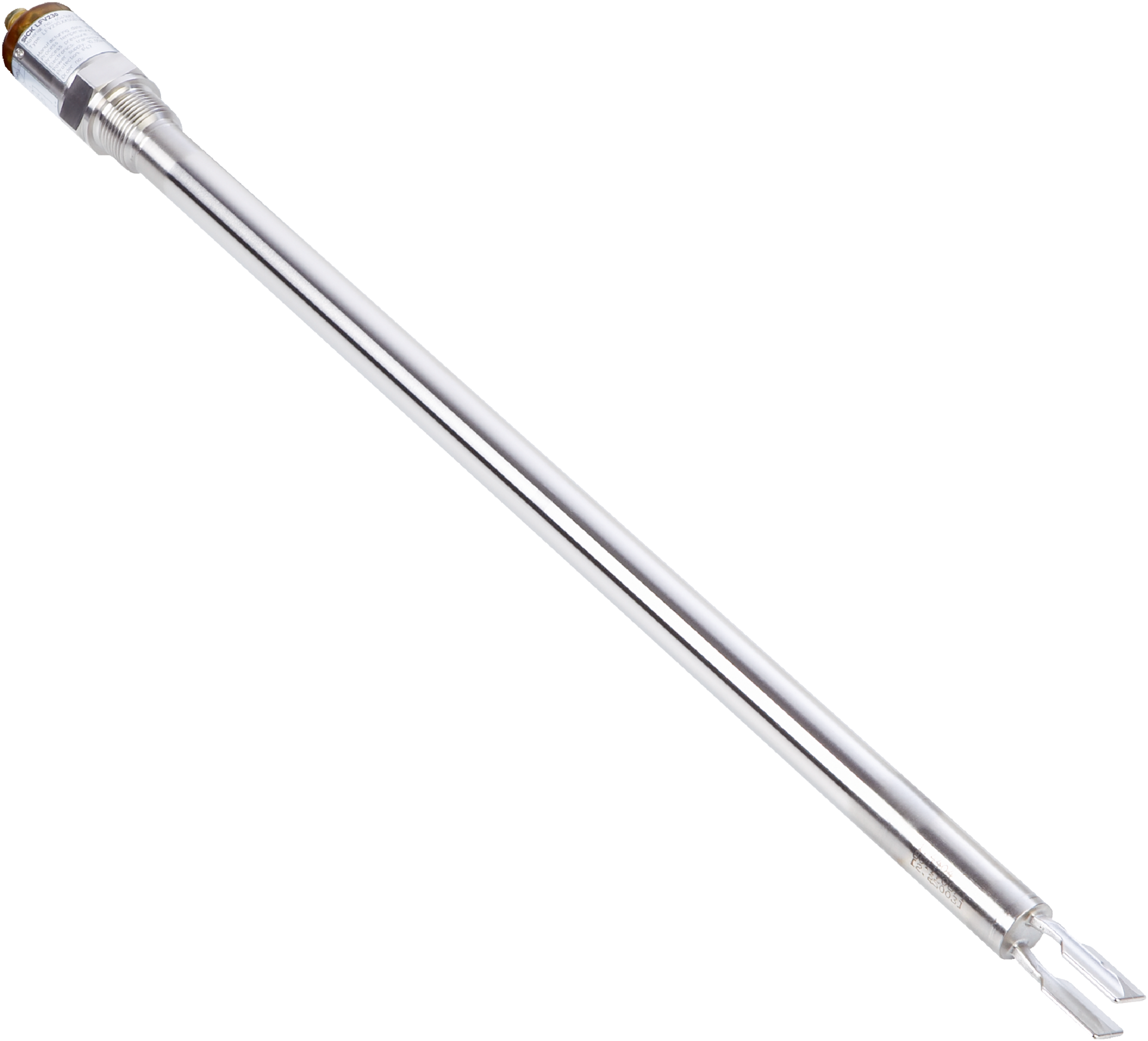

The SICK LFV230-XXSNBTPM1000 is a tuning fork level sensor designed for fluid level detection with high accuracy and robust stainless steel construction, suitable for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFV230-XXSNBTPM1000 | Level sensors
Brand: SICK
SKU: 6041861
Alternatively Known As: Tuning Fork Level Sensor, Fluid Level Switch, LFV230 Level Sensor, SICK Level Detector
Technical Specifications
- Medium: Fluids
- Measurement: Switch
- Probe type: Tuning fork
- Probe length: 1000 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +100 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy of sensor element: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity: 0.1 mPas to 10,000 mPas
- Resolution: ≤1 mm
- Response time: 500 ms
- MTBF: 1.25×10^7 hours
- Supply voltage: 9.6 V DC to 35 V DC
- Residual ripple: ≤5 V pp
- Power consumption: ≤10 mA
- Initialization time: <2 s
- Connection type: M12 round connector, 4-pin
- Output signal: Transistor output PNP
- Hysteresis: 2 mm
- Output current: <250 mA
- Inductive load: ≤1 H
- Capacitive load: 100 nF
- Enclosure rating: IP67
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: ¾" NPT PN 64
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 30mm x 1000mm x 30mm
- Weight: 1.2 kg
Key Features
- Tuning fork probe type for reliable level switching
- Suitable for fluids with fill material density from 0.7 to 2.5 g/cm³
- Wide process pressure range from -1 bar to 64 bar
- Operating temperature range from -40 °C to +100 °C
- High accuracy with ±2 mm sensor element precision
- Fast response time of 500 ms
- Robust stainless steel wetted parts (1.4404 / 316L)
- IP67 rated enclosure for protection against dust and water
- Transistor output PNP with output current less than 250 mA
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with process instrumentation and electrical connections to ensure safety and proper operation.
Applications
- Fluid level detection in industrial tanks and vessels
- Process control in chemical and pharmaceutical industries
- Monitoring liquids in food and beverage production
- Water and wastewater treatment plants
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise fluid level monitoring to reduce waste and spillage
- Durable stainless steel construction extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies, typically 12 months from date of purchase.
Available Now
The SICK LFV230-XXSNBTPM1000 tuning fork level sensor is available for immediate purchase, ideal for industrial fluid level monitoring applications.
