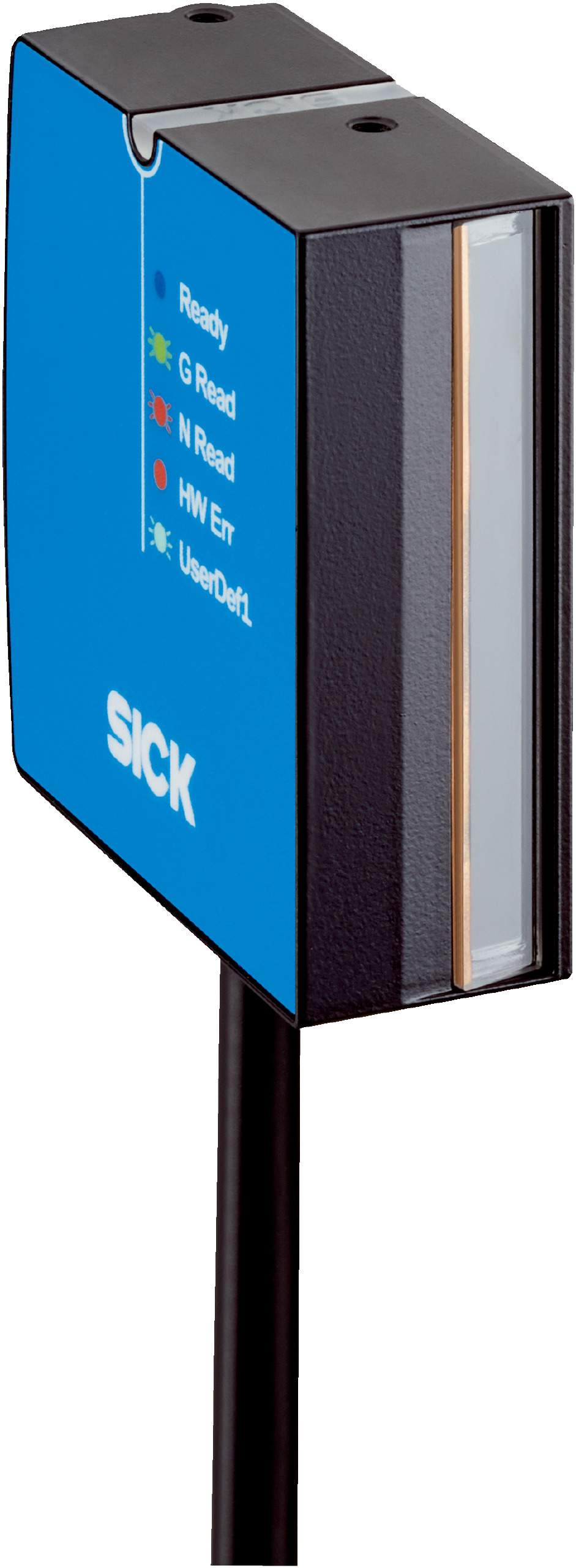

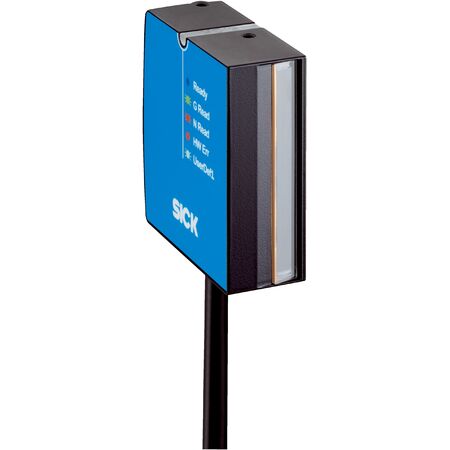

Line Scanner Barcode Reader CLV602-0D200 | CMOS Sensor | 2048 Pixel Resolution | 750 Hz Scanning Frequency | by SICK
The Line Scanner Barcode Reader CLV602-0D200 is designed for industrial automation, featuring a CMOS line sensor with 2048 pixel resolution and a high scanning frequency of 750 Hz. Ideal for logistics and manufacturing process control, this robust scanner supports all current 1D barcode types and offers a reading distance of 20 mm to 105 mm, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Cable with 1 x 9-pin D-sub male connector (2 m)
- Supply voltage: 5 V DC ± 10%
- Power consumption: Typically 1 W
- Sensor type: CMOS line sensor
- Sensor resolution: 2048 pixels
- LED class: Risk group 0 (IEC 62471:2006-07, EN 62471:2008-09)
- Light source: Visible red LED, 626 nm
- Aperture angle: ≤ 62°
- Reading distance: 20 mm to 105 mm
- Scanning frequency: 750 Hz
- Reading angles: Tilt α ±5° to ±25° depending on code resolution, Pitch β ±6° to ±15°, Skew γ ±20° to ±30°
- Readable code structures: 1D codes including Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1
- Number of codes per reading interval: 1 to 15 (auto-discriminating)
- Number of characters per reading interval: 450
- Number of characters per code: ≤ 30
- Digital inputs: 1 (max 30 V)
- Digital outputs: 2 (max 50 mA)
- Indicators: 1 RGB LED, beeper/buzzer
- Enclosure rating: IP40
- Protection class: III (VDE 0106/IEC 1010-1)
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-3/A1:2011-03 / EN 61000-6-2:2005-08
- Vibration resistance: EN 60068-2-6:2008-02
- Shock resistance: EN 60068-2-27:2009-05
- Dimensions (H x L x W): 20mm x 55mm x 52mm
- Weight: 0.23 kg
Key Features
- Fixed optical focus at 50 mm
- CMOS line sensor with 2048 pixel resolution
- Visible red LED light source at 626 nm
- Reading distance from 20 mm to 105 mm
- High scanning frequency of 750 Hz
- Supports all current 1D barcode types including Code 39, Code 128, UPC, EAN
- Robust zinc diecast housing with IP40 rating
- Lightweight at 230 g including cable
- Multiple digital inputs and outputs for flexible integration
- RGB LED and acoustic indicators for status feedback
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Label verification and tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption at approximately 1 W reduces energy usage
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK CLV602-0D200 Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial automation and logistics applications.
