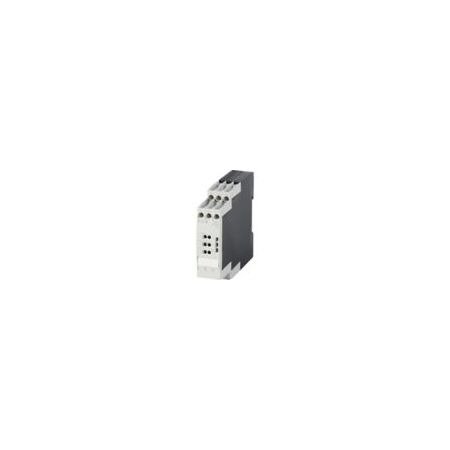

Liquid Level Monitoring Relay | 110-240V AC | Adjustable Sensitivity & LED Indicators | IP50 by Eaton
Monitor conductive liquid levels with this liquid level monitoring relay, featuring adjustable sensitivity from 0.1 to 1000 kΩ and LED indicators for status. Ideal for industrial automation and control systems, it ensures efficient monitoring to prevent overflows and leaks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Liquid Level Monitoring Relay | 110-240V AC | Adjustable Sensitivity & LED Indicators | IP50 by Eaton
Brand: Eaton
SKU: Y7-184756
Alternatively Known As: Liquid Level Monitoring Relay, Conductive Liquid Level Sensor Relay, EMR6 Level Relay, Eaton Level Sensor
Technical Specifications
- Voltage: 110 - 130 V AC / 220 - 240 V AC, 50/60 Hz
- Power consumption: 2.6 VA
- Sensitivity adjustment range: 0.1 - 1000 kΩ
- Number of contacts: 1 change-over contact
- Rated operational current: 5 A at AC-12, 230 V; 3 A at AC-15, 230 V; 2 A at DC-12, 24 V
- Rated operational voltage max: 300 V AC
- Degree of protection: Terminals IP20, Enclosure IP50
- Connection type: Screw connection, snap fixing on top-hat rail IEC/EN 60715
- Mechanical lifespan: 10,000,000 operations
- Electrical lifespan: 100,000 operations at 230 V AC-12, 4 A
- Operating temperature range: -25 °C to 60 °C
- Storage temperature range: -40 °C to 85 °C
- Overvoltage category: III
- Pollution degree: 3
- Electromagnetic compatibility: IEC/EN 60947-6-2
- Shock resistance: Class 2
- LED indicators for status and operation
- Dimensions (H x L x W): 85.6mm x 103.7mm x 22.5mm
- Weight: 0.154 kg
Key Features
- Adjustable response value sensitivity from 0.1 to 1000 kΩ
- Single change-over contact for switching
- Screw connection type for secure wiring
- Status indication LEDs for supply voltage, output relay, and level status
- Snap fixing on top-hat rail IEC/EN 60715
- High mechanical lifespan of 10,000,000 operations
- Overvoltage category III and pollution degree 3
- Rated impulse withstand voltage of 4000 V AC
- Shock resistance Class 2
- Wide ambient operating temperature range from -25 °C to 60 °C
- Electromagnetic compatibility compliant with IEC/EN 60947-6-2
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper device operation.
Applications
- Monitoring mixture ratio of conductive liquids
- Fill level detection of conductive liquids
- Industrial automation and control systems
- Liquid level monitoring in tanks and containers
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient monitoring to prevent overflows and leaks, reducing environmental contamination risks
- Supports energy-efficient industrial automation by precise liquid level control
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller EMR6 Level Monitoring Relay is available for immediate purchase, ideal for industrial and commercial liquid level monitoring applications.
