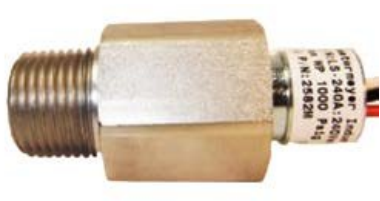

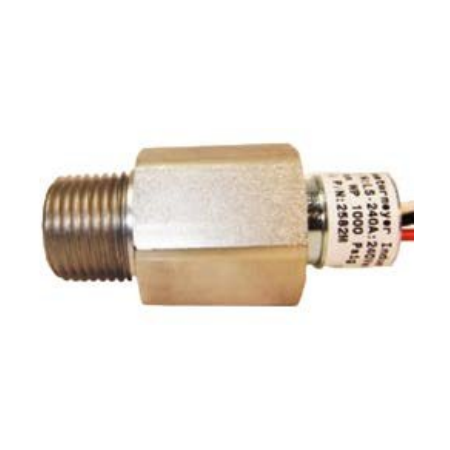

Liquid Level Switch | 240V N/O | 0 to 90°C Temperature Range | Hermetically Sealed | by Aspen Pumps
The Liquid Level Switch is designed for precise moisture and liquid level detection in HVAC and refrigeration systems. Operating at 240V with a normally open switch type, it features a temperature range of 0 to 90°C and solid copper connectors for easy installation. Ideal for both commercial and residential applications, this switch ensures system efficiency and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Liquid Level Switch | 240V N/O | 0 to 90°C Temperature Range | Hermetically Sealed | by Aspen Pumps
Brand: Aspen Pumps
SKU: LS-240A
Alternatively Known As: Liquid Level Sensor, Moisture Indicator Switch, Westermeyer Level Switch, HVAC Liquid Level Sensor
Technical Specifications
- Voltage: 240V
- Switch Type: Normally Open (N/O)
- Pressure Rating: 48 bar SWP
- Temperature Range: 0 to 90°C
- Connection: J 1/2 NPT
- Material: Solid copper connectors
- Sealing: Hermetically sealed
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.3 kg
Key Features
- Fast and accurate tri-range moisture indicator
- Wide viewing angle for easy monitoring
- Solid copper connectors for ease of installation
- Hermetically sealed for durability
- Compatible with R-410A refrigerant up to 48 bar SWP
- Manufactured in accordance with ISO/AS 5149.2
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- HVAC systems for moisture and liquid level detection
- Refrigeration systems monitoring
- Industrial liquid level sensing
- Commercial and residential moisture indication
Standards & Compliance
- Manufactured in accordance with ISO/AS 5149.2
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps maintain system efficiency by accurate moisture detection, reducing energy waste
- Compatible with environmentally friendly refrigerants like R-410A
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Aspen Liquid Level Switch (Westermeyer) is available for immediate purchase, ideal for HVAC and refrigeration system moisture and liquid level monitoring.
