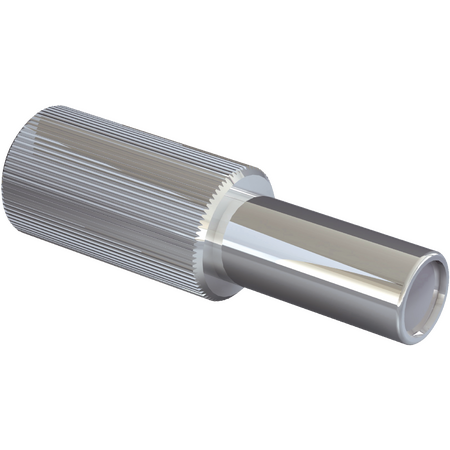

LL3-DA05 | Fiber-optic sensors

BRAND: SICK
SKU: 5326467
$352.00 List price: $442.40
+ −
30 Days Return Delivery Options
The SICK LL3-DA05 is an attachment lens for optical fiber cables, designed for reliable proximity detection of small objects with a focus of 6 mm and a minimum light spot size of 0.5 mm.

Product Name/Title: LL3-DA05 | Fiber-optic sensors

Brand: SICK

SKU: 5326467

Alternatively Known As: Fiber optic sensor lens, Optical fiber attachment lens, Proximity sensor lens

Technical Specifications
  • Device type: Attachment lens for optical fiber cable
  • Functional principle: Proximity system
  • Focus: 6 mm
  • Minimum light spot size: Ø 0.5 mm
  • Sleeve material: Aluminium (black coated)
  • Lens material: Glass
  • Thread diameter (housing): M4
  • Weight: 1 g
  • Ambient operating temperature: –40 °C to +70 °C
  • Dimensions (H x L x W): 10mm x 20mm x 10mm
  • Weight: 0.1 kg
Key Features
  • Attachment lens designed for optical fiber cable
  • Proximity system functional principle
  • Reliable detection of small objects
  • Focus distance of 6 mm
  • Minimum light spot size of Ø 0.5 mm
  • Sleeve made of black coated aluminium
  • Lens made of glass
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with optical fiber sensor systems to ensure proper alignment and functionality.
Applications
  • Industrial automation for proximity detection
  • Reliable detection of small objects in manufacturing
  • Integration with optical fiber cable systems
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Enables precise detection reducing waste and improving process efficiency
  • Durable aluminium and glass materials support long product life
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.

Available Now

The SICK LL3-DA05 Fiber-optic Sensor Attachment Lens is available for immediate purchase, ideal for industrial automation and precision detection applications.
