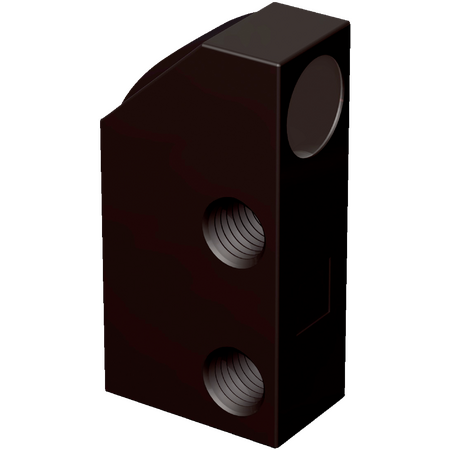

LL3-DA07 | Fiber-optic sensors
The SICK LL3-DA07 is an attachment lens for optical fiber cables designed for reliable proximity detection of small objects with a 90° offset, featuring a 14 mm focus and a minimum light spot size of 0.5 mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LL3-DA07 | Fiber-optic sensors
Brand: SICK
SKU: 5326469
Alternatively Known As: Fiber optic sensor lens, Optical fiber attachment lens, Proximity sensor lens
Technical Specifications
- Device type: Attachment lens for optical fiber cable
- Functional principle: Proximity system
- Special features: Reliable detection of small objects, 90° offset
- Items supplied: 1 piece
- Sleeve material: PBT (black)
- Focus: 14 mm
- Minimum light spot size: Ø 0.5 mm
- Lens material: Glass
- Thread diameter (housing): M4
- Operating temperature range: –40 °C to +70 °C
- Weight: 2 g
- Dimensions (H x L x W): 10mm x 20mm x 10mm
- Weight: 0.1 kg
Key Features
- Attachment lens for optical fiber cable
- Proximity system functional principle
- Reliable detection of small objects with 90° offset
- Focus distance of 14 mm
- Minimum light spot size of Ø 0.5 mm
- Lens made of glass
- Sleeve material is black PBT
- Thread diameter (housing) M4
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with optical fiber sensor systems to ensure proper alignment and functionality.
Applications
- Industrial automation for proximity detection
- Reliable detection of small objects in manufacturing
- Use in optical fiber cable systems requiring precise focus
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise detection reducing waste and improving process efficiency
- Durable materials extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK LL3-DA07 Fiber-optic Sensor Attachment Lens is available for immediate purchase, ideal for industrial automation and precision detection applications.
