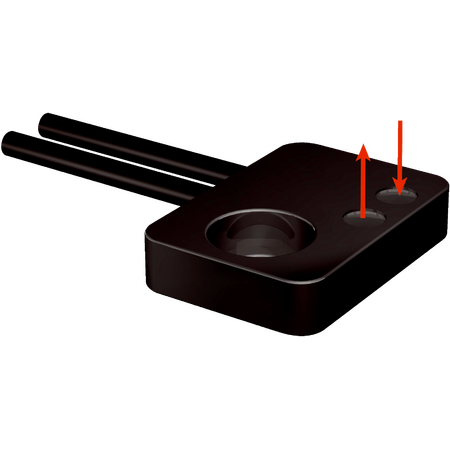

LL3-DE01-03 | Fiber-optic sensors
The SICK LL3-DE01-03 fiber-optic sensor features a flat type 90° deflection fiber-optic head designed for high flexible static proximity sensing, compatible with multiple fiber-optic amplifiers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LL3-DE01-03 | Fiber-optic sensors
Brand: SICK
SKU: 5329208
Alternatively Known As: Fiber optic proximity sensor, SICK fiber optic sensor, LL3 DE01 03 sensor, fiber optic cable sensor
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Flat type, 90° deflection
- Sensing range max.: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.16 mm
- Angle of dispersion: 27°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Fiber length: 3000 mm
- Bending radius: 1 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1 mm
- Fiber arrangement: Multi-fiber
- Core structure: S: 151 x Ø 0.05 mm R: 151 x Ø 0.05 mm Multi-fiber
- Material optical fiber head: Polycarbonate (PC)
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +60 °C
- Dimensions (H x L x W): 10mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Flat type fiber-optic head with 90° deflection
- Proximity system functional principle
- Integrated lens with 27° angle of dispersion
- Optical fiber cable can be shortened
- Includes mounting hardware and adapter sleeves
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration with compatible fiber-optic amplifiers and secure mounting.
Applications
- High flexible static proximity sensing applications
- Compatible with fiber-optic amplifiers GLL70, WLL80, WLL180, GLL170(T)
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending product life
- Energy-efficient operation with minimal power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LL3-DE01-03 fiber-optic sensor is available for immediate purchase, ideal for industrial proximity sensing applications requiring high flexibility and precision.
