LL3-DE02 | Fiber-optic sensors

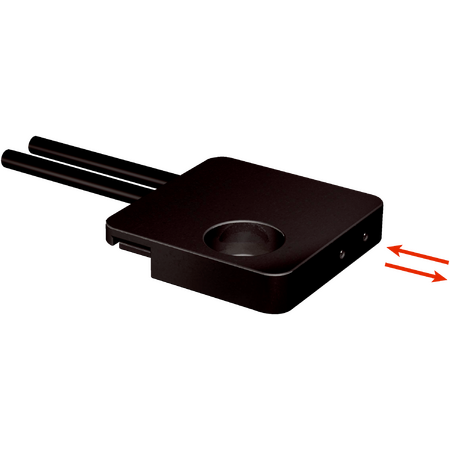

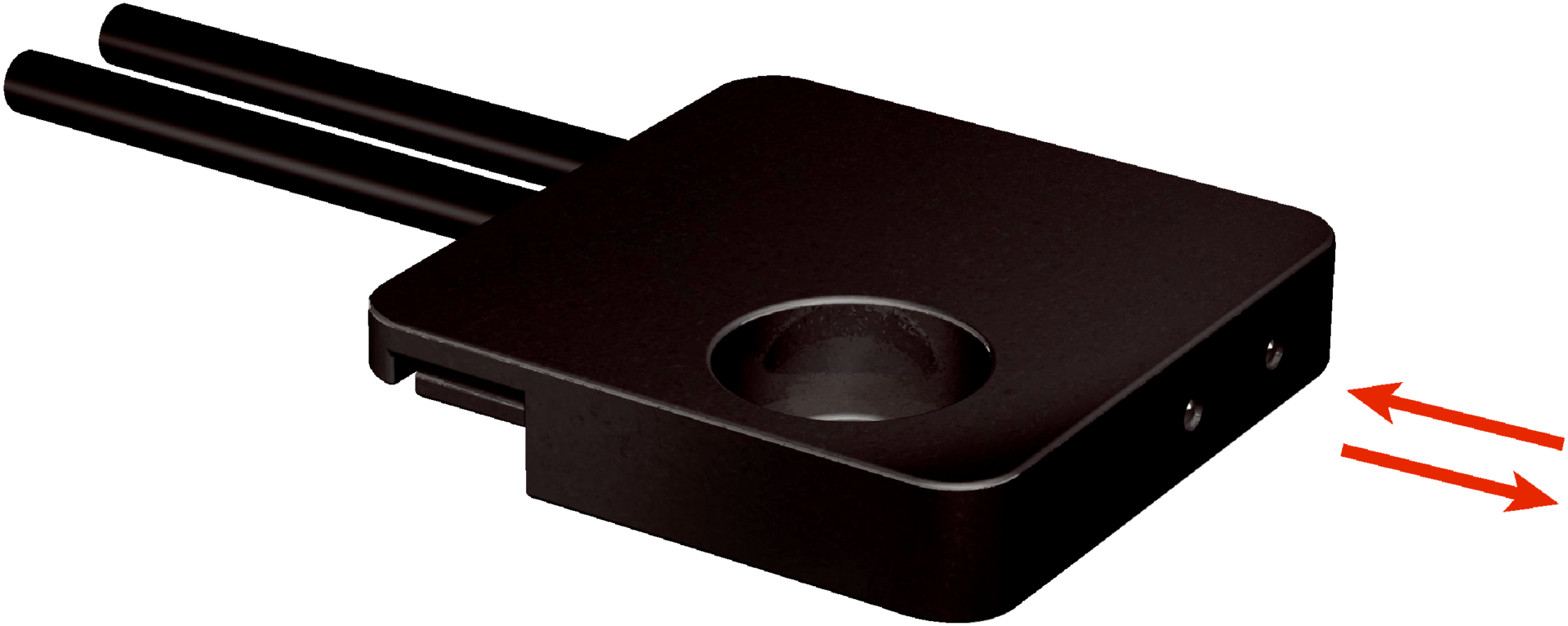

The SICK LL3-DE02 fiber-optic sensor features a flat type fiber-optic head with a proximity system principle, suitable for high flexible static applications with sensing ranges up to 340 mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LL3-DE02 | Fiber-optic sensors
Brand: SICK
SKU: 5324497
Alternatively Known As: Fiber optic sensor LL3-DE02, SICK fiber optic cable sensor, proximity fiber optic sensor
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Flat type
- Compatible fiber-optic amplifiers: GLL70, WLL80, WLL180, GLL170(T)
- Sensing range max.: 340 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.01 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Polycarbonate (PC)
- Optical fiber length: 1000 mm
- Bending radius: 1 mm
- Dynamic flexibility (robotics): No
- Outside diameter optical fiber cable connection: 1 mm
- Fiber arrangement: Single fiber
- Core structure: 2 x Ø 0.5 mm single fiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +60 °C
- Dimensions (H x L x W): 10mm x 1000mm x 10mm
- Weight: 0.1 kg
Key Features
- Flat type fiber-optic head design
- Proximity system functional principle
- Sensing range up to 340 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.01 mm
- Angle of dispersion 60°
- Axial light emission
- Optical fiber cable can be shortened
- Includes mounting hardware and adapter sleeves
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- High flexible (static) proximity sensing applications
- Compatible with fiber-optic amplifiers GLL70, WLL80, WLL180, GLL170(T)
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise detection reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LL3-DE02 Fiber-optic Sensor is available for immediate purchase, ideal for industrial automation and precise proximity sensing applications.
