LL3-DE03 | Fiber-optic sensors

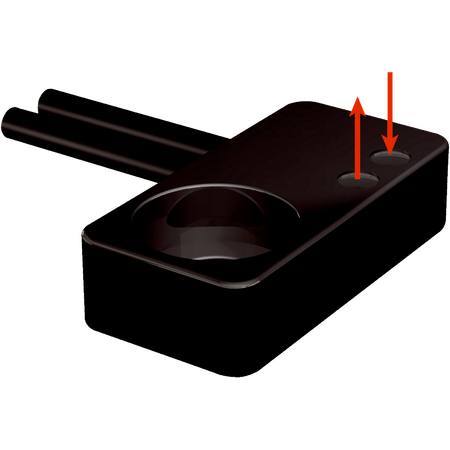

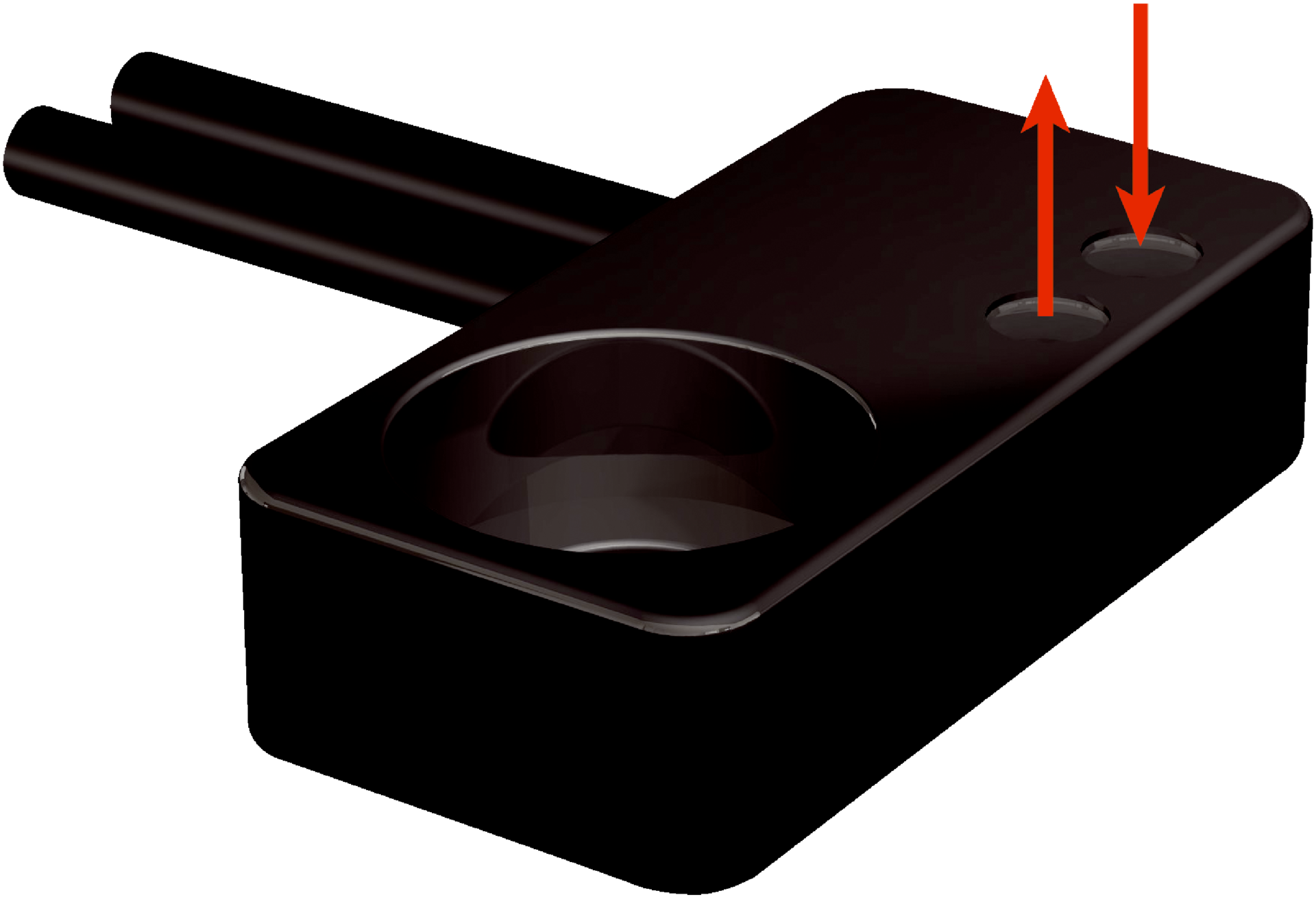

The SICK LL3-DE03 fiber-optic sensor features a flat 90° deflection fiber-optic head designed for high flexible static proximity sensing with a maximum sensing range of 1,000 mm, compatible with multiple fiber-optic amplifiers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LL3-DE03 | Fiber-optic sensors
Brand: SICK
SKU: 5325986
Alternatively Known As: Fiber optic proximity sensor, Fiber optic cable sensor, SICK fiber sensor LL3-DE03
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Flat type, 90° deflection
- Sensing range max.: 1,000 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.03 mm
- Angle of dispersion: 39°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Included with delivery: Adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter
- Light emission: Radial
- Optical fiber head material: Polycarbonate (PC)
- Fiber length: 2,000 mm
- Bending radius: 1 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Multi-fiber
- Core structure: S: 151 x Ø 0.75 mm R: 151 x Ø 0.75 mm Multi-fiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +60 °C
- Dimensions (H x L x W): 10mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cables with flat type, 90° deflection head design
- Proximity system functional principle
- Sensing range up to 1,000 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.03 mm
- Optical fiber head with 39° angle of dispersion and integrated lens
- Optical fiber cable can be shortened
- Adapter end sleeves required and included with delivery
- Radial light emission from polycarbonate optical fiber head
- Multi-fiber arrangement with 2,000 mm fiber length and 1 mm bending radius
- Materials: Polycarbonate head, polyethylene sheath, polymethylmethacrylate fibers
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- High flexible (static) proximity sensing applications
- Compatible with fiber-optic amplifiers GLL70, WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending product life and reducing waste
- Low power consumption fiber-optic technology
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LL3-DE03 Fiber-optic Sensor is available for immediate purchase, ideal for industrial proximity sensing applications requiring high flexibility and precision.
