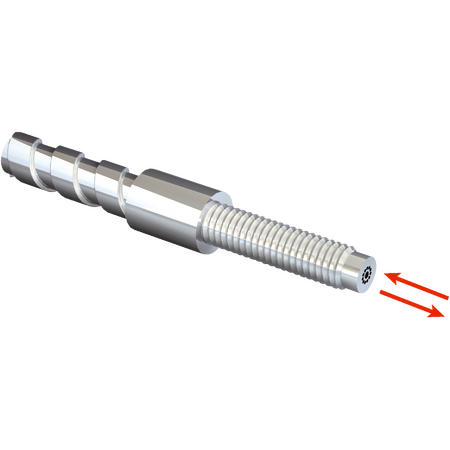

LL3-DJ01 | Fiber-optic sensors

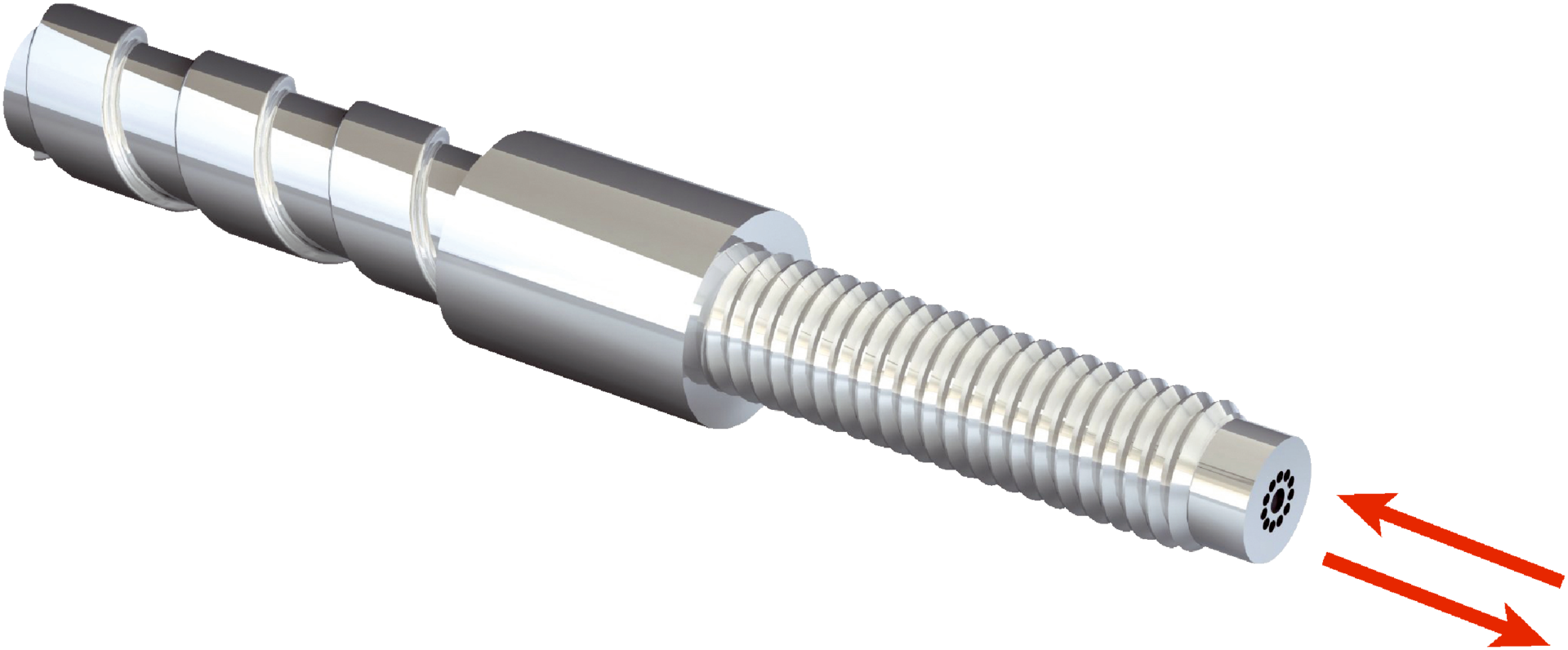

The SICK LL3-DJ01 fiber-optic sensor features a threaded sleeve design for proximity sensing with a maximum sensing range of 420 mm. Compatible with multiple fiber-optic amplifiers, it offers precise detection of minimal objects and flexible installation options.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LL3-DJ01 | Fiber-optic sensors
Brand: SICK
SKU: 5325989
Alternatively Known As: Fiber optic sensor LL3-DJ01, SICK fiber optic proximity sensor, threaded sleeve fiber optic sensor
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Compatible fiber-optic amplifiers: GLL70, WLL80, WLL180, GLL170(T)
- Sensing range max.: 420 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.02 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Optical fiber compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M3
- Fiber length: 1000 mm
- Bending radius: 10 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Coaxial
- Core structure: S: Ø 0.5 mm, R: 9 x Ø 0.25 mm Coaxial
- Sheath material: Stainless steel
- Fibers material: Polymethylmethacrylat (PMMA)
- Ambient operating temperature: –40 °C to +60 °C
- Dimensions (H x L x W): 3mm x 1000mm x 3mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable type with threaded sleeve head design
- Proximity system functional principle
- Sensing range up to 420 mm with WLL80 amplifier at 8 ms
- Minimal object diameter detection of 0.02 mm
- Angle of dispersion 60°
- No integrated lens, compatibility with tip adapters
- Optical fiber cable can be shortened
- Includes mounting accessories and adapter sleeves
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical wiring standards.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers GLL70, WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending product life
- Energy-efficient operation with minimal power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK LL3-DJ01 Fiber-optic Sensor is available for immediate purchase, ideal for industrial proximity sensing applications requiring precise detection and robust fiber-optic technology.
