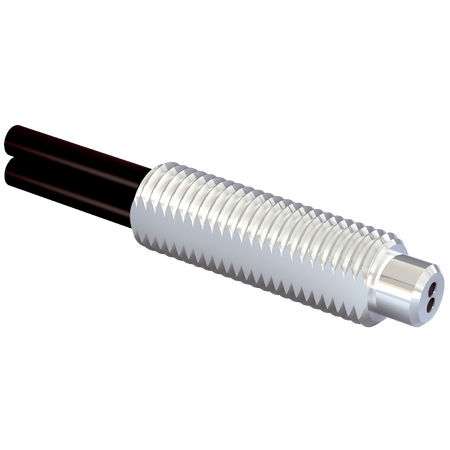

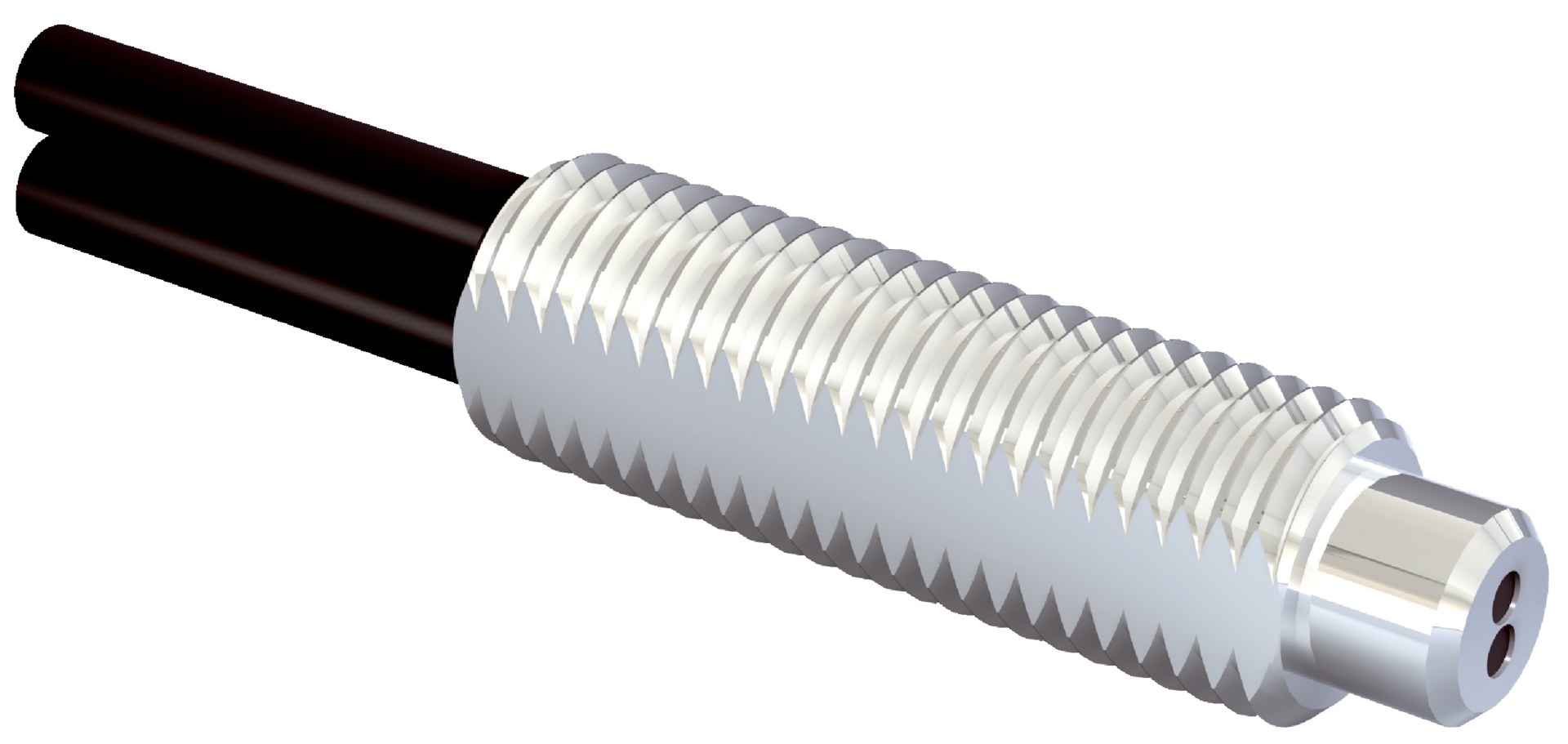

LL3-DK08 | Fiber-optic sensors
The SICK LL3-DK08 fiber-optic sensor features a threaded sleeve design for proximity sensing with compatibility for multiple fiber-optic amplifiers, suitable for precise object detection in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LL3-DK08 | Fiber-optic sensors
Brand: SICK
SKU: 5350097
Alternatively Known As: Fiber optic sensor LL3-DK08, SICK fiber optic proximity sensor, LL3-DK08 optical fiber sensor
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Compatible fiber-optic amplifiers: GLL70, WLL80, WLL180, GLL170(T)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Optical fiber compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M3
- Optical fiber taper diameter: ≥ 2 mm
- Optical fiber taper length after 2 mm: ≥ 1 mm
- Fiber length: 2000 mm
- Bending radius: 1 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 0.5 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –55 °C to +70 °C
- Dimensions (H x L x W): 10mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cables with threaded sleeve design
- Proximity system functional principle
- Sensing range depends on fiber optic amplifier used
- Minimal object diameter detection of 0.015 mm
- Angle of dispersion 60°
- No integrated lens
- Compatibility with tip adapters
- Optical fiber cable can be shortened
- Includes mounting accessories and fiber cutter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and compatible amplifiers to ensure optimal performance and safety.
Applications
- Standard proximity sensing applications requiring fiber-optic cables
- Compatible with fiber-optic amplifiers GLL70, WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise sensing reducing waste and improving process efficiency
- Durable stainless steel and polyethylene materials enhance product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LL3-DK08 Fiber-optic Sensor is available for immediate purchase, ideal for industrial proximity sensing applications requiring high precision and reliability.
