Load Break Switch 3P 100A | 400-690V | IP20 Interlockable by NHP
Load break switch with 3P 100A capacity and 400-690V rated voltage—ideal for industrial and commercial power distribution. Built for safety with an interlockable design and IP20 protection, ensuring reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

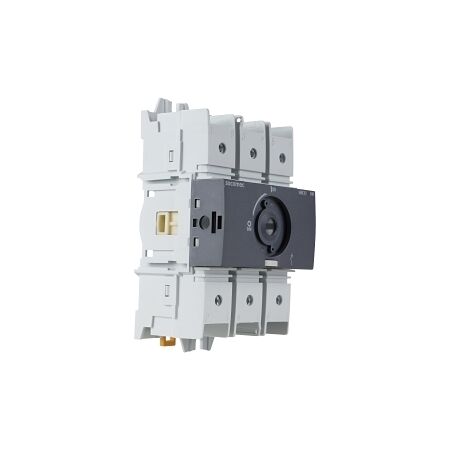

Product Name/Title: Socomec SLBM Load Break Switch Body, Base/DIN Rail mount, 3P 100A
Brand: NHP
SKU: 22003010
Alternatively Known As: Load Break Switch, Switch Disconnector, SLBM Switch
Technical Specifications
- Rated operating voltage: 400-690 V
- Max rated operation voltage: 800 V
- Rated operation power at AC 23 400 V: 45 kW
- Rated short time withstand current: 2.75 kA
- Conditioned rated short circuit current: 25 kA
- Mechanical life: 10,000 cycles
- Connectable conductor cross section: 6-70 mm²
- Dimensions (H x L x W): 260mm x 289mm x 562mm
- Weight: 5 kg
Key Features
- Rated permanent current: 100 A
- Rated operation voltage: 400-690 V
- IP20 protection degree
- Interlockable design for safety
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Electrical installations requiring load break switches
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Socomec SLBM Load Break Switch Body, Base/DIN Rail mount, 3P 100A is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
