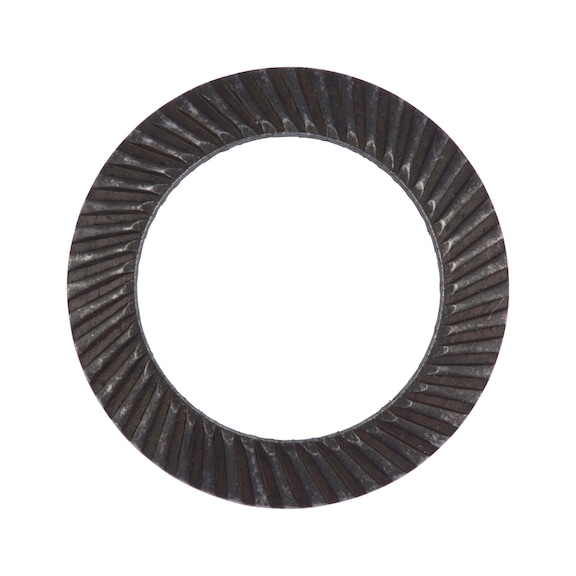

Lock Washer S Spring Steel Belleville Form RoHS Compliant Variant-2 Wurth

BRAND: Wurth
SKU: 49318
$36.60 List price: $46.00
10 PCS ($3.66 per PCS)
+ −
30 Days Return Electricians Unlock Trade Access
Lock Washer S Spring Steel is designed for mechanical assemblies, featuring a Belleville form that provides optimum friction-fit and prevents loosening of screws
Technical Specifications
  • Internal diameter: 19 mm
  • Outer diameter: 27 mm
  • Height: 2.3 mm
  • Thickness: 1.4 mm
  • Material: Spring steel
  • Surface finish: Plain
  • Form: S
  • RoHS-compliant: Yes
  • Dimensions (H x L x W): 2.3mm x 27mm x 27mm
  • Weight: 0.02 kg
Key Features
  • Belleville washer form with angled teeth for optimum friction-fit and form-fit connection
  • Prevents connection loosening by supplementing pre-tensioning force
  • Made from durable spring steel with a plain surface
  • RoHS-compliant ensuring environmental safety
Professional Installation Requirements
  • Installation by a qualified technician or engineer is recommended to ensure proper fastening and safety.
Applications
  • Used in mechanical assemblies to prevent loosening of screws and bolts
  • Ideal for applications with short screws and vertical loads to the screw axis
  • Suitable for automotive, industrial machinery, and construction fastening
Standards & Compliance
  • Complies with AS/NZS 1170 for structural design actions relevant to mechanical fastening
Environmental Benefits
  • RoHS-compliant material reduces hazardous substances
  • Durable spring steel construction extends product life and reduces waste
Warranty Information

Standard manufacturer warranty against defects applies.

Available Now

Wurth Lock Washer S Spring Steel Plain 10 PCS is available for immediate purchase, ideal for mechanical and industrial fastening applications.
