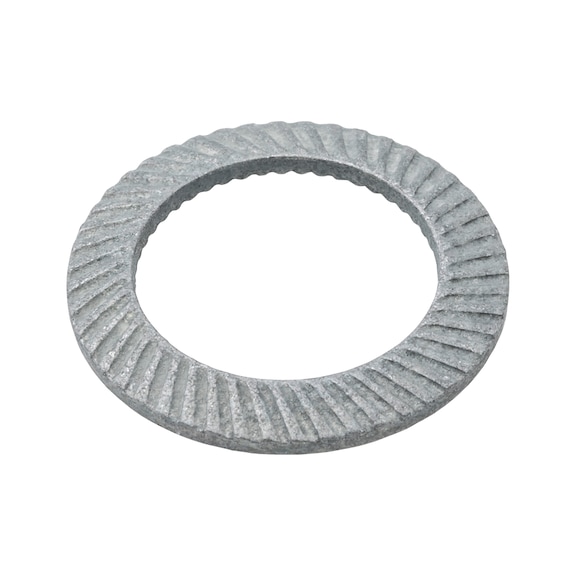

Lock Washer S Spring Steel | Belleville Shape | Zinc-Plated & Blue Passivated | @Pack of 25 | by Wurth
Lock Washer S Spring Steel is designed for M6 screws, featuring a Belleville shape that ensures an optimum friction fit and prevents loosening in mechanical assemblies. Ideal for automotive, machinery, and construction applications, this washer is made from durable spring steel with a corrosion-resistant zinc coating, making it perfect for secure fastening needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lock Washer S Spring Steel | Belleville Shape | Zinc-Plated & Blue Passivated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 49306
Alternatively Known As: Belleville lock washer, spring lock washer, zinc plated lock washer, M6 lock washer
Technical Specifications
- Suitable for screw thread: M6
- Internal diameter (d1): 6.4 mm
- Outer diameter (d2): 10 mm
- Height (h1): 1.2 mm
- Thickness (s1): 0.6 mm
- Material: Spring steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Form: S
- Dimensions (H x L x W): 1.2mm x 10mm x 10mm
- Weight: 0.01 kg
Key Features
- Belleville washer shape achieves optimum friction fit with simultaneous form fit via helical gearing
- Prevents connection loosening by supplementing pre-tensioning force
- Mechanically applied zinc coating provides corrosion resistance
- Made from durable spring steel
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- Used with M6 screws to prevent loosening in mechanical assemblies
- Ideal for applications with short screws and vertical loads to the screw axis
- Suitable for automotive, machinery, and construction fastening needs
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Lock Washer S Spring Steel Zinc Coated 25 PCS is available now for immediate purchase. Ideal for mechanical fastening applications requiring secure screw connections.
