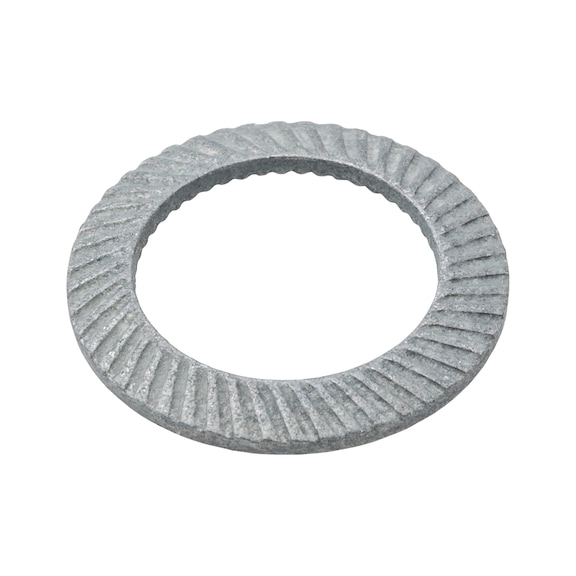

Lock Washer S Spring Steel | Zinc Coated | Belleville Shape | M4 Compatible | @Pack of 25 | by Wurth
Lock Washer S Spring Steel is designed for secure mechanical fastening, featuring a Belleville shape that optimizes friction fit and prevents loosening. Ideal for M4 screw threads, this zinc-coated washer enhances corrosion resistance, making it perfect for industrial and construction applications. Ensure reliable connections with this pack of 25 washers, suitable for both short screws and vertical loads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lock Washer S Spring Steel | Zinc Coated | Belleville Shape | M4 Compatible | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 49304
Alternatively Known As: Belleville lock washer, spring lock washer, zinc plated lock washer, M4 lock washer
Technical Specifications
- Suitable for screw thread: M4
- Internal diameter (d1): 4.3 mm
- Outer diameter (d2): 7 mm
- Height (h1): 1 mm
- Thickness (s1): 0.5 mm
- Material: Spring steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Form: S
- Dimensions (H x L x W): 1mm x 7mm x 7mm
- Weight: 0.01 kg
Key Features
- Belleville washer shape achieves optimum friction fit with simultaneous form fit via helical gearing
- Prevents connection loosening by supplementing pre-tensioning force
- Mechanically applied zinc coating for corrosion resistance
- Suitable for screw thread M4
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- Mechanical fastening requiring secure screw connections
- Use with short screws and vertical loads to prevent loosening
- Industrial and construction fastening applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Lock Washer S Spring Steel Zinc Coated 25 PCS is available for immediate purchase, ideal for mechanical fastening applications requiring secure screw connections.
