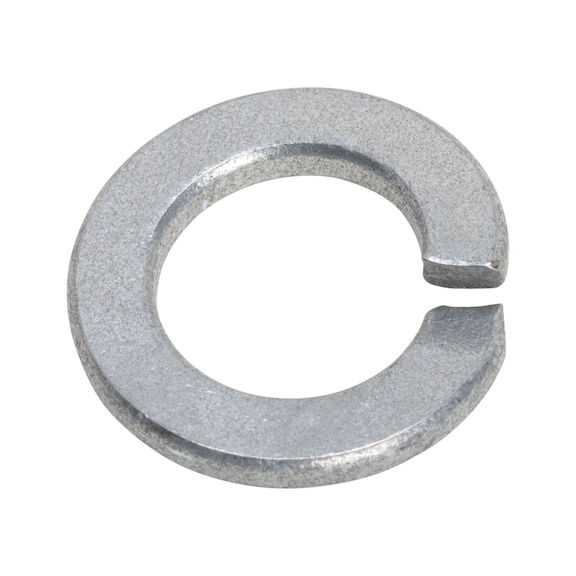

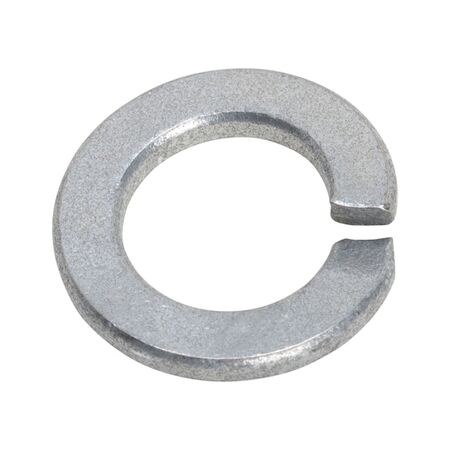

Lock Washer Shape B DIN 127 | Right-Angle Cross-Section | Zinc Coated | @Pack of 50 | by Wurth
Lock Washer Shape B DIN 127 features a right-angle cross-section and a durable zinc coating, making it ideal for securing screws in mechanical assemblies. Perfect for automotive, machinery, and construction applications, this washer ensures reliable fastening for screws of strength class ≤ 5.8, providing corrosion resistance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lock Washer Shape B DIN 127 | Right-Angle Cross-Section | Zinc Coated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 4418
Alternatively Known As: Spring lock washer, DIN 127 lock washer, Zinc plated lock washer, Shape B lock washer
Technical Specifications
- Suitable for screw thread: M8
- Internal diameter (d1): 8.1 mm
- Outer diameter (d2): 14.8 mm
- Height (h1): 4.0 mm
- Thickness (s1): 2 mm
- Material: Spring steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Form: B
- Standards: DIN 127
- Dimensions (H x L x W): 4.0mm x 14.8mm x 14.8mm
- Weight: 0.02 kg
Key Features
- Right-angle cross-section lock washer, shape B according to DIN 127
- Mechanically applied zinc coating for corrosion resistance
- Suitable for screws of strength class ≤ 5.8
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper fastening and safety.
Applications
- Suitable for securing screws of strength class ≤ 5.8 in mechanical assemblies
- Used in automotive, machinery, and construction fastening applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Lock Washer with right-angle cross-section, shape B DIN 127 zinc coated 50 PCS is available for immediate purchase, ideal for mechanical fastening applications.
