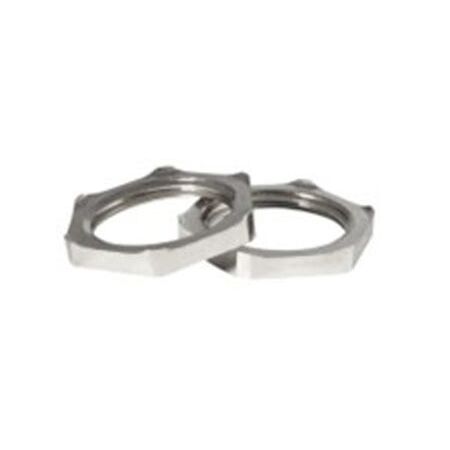

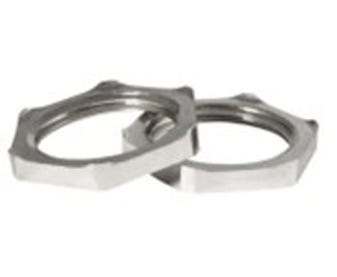

Locknut for GU50EMC/L | Nickel-Plated Lead-Free Brass | IP68 Rated | Enhanced Vibration Resistance by Cabac
The Cabac Locknut for GU50EMC/L is a nickel-plated, lead-free brass locknut designed to secure EMC cable glands in metal enclosures, ensuring optimal electrical contact, equipotential bonding, and enhanced vibration resistance with IP68 environmental protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Locknut for GU50EMC/L
Brand: Cabac
SKU: LNM50EMC
Alternatively Known As: EMC Locknut, Brass EMC Locknut, Nickel-Plated Locknut for EMC Glands, Cable Gland Locknut, EMC Cable Gland Nut
Technical Specifications
- Material: Lead-free brass (CuZn21Si3P), nickel-plated
- Internal Thread: Metric, as per EN 60423
- Operational Temperature Range: -60°C to +200°C
- Designed to cut earthing path through paint or powder coatings
- Compatible with CABAC Brass EMC Metric Glands to meet IP68 requirements
- Dimensions (H x L x W): 15mm x 50mm x 50mm
- Weight: 0.05 kg
Key Features
- Cutting edges designed for secure tightening of EMC cable glands
- Sharp barbs cut through paint layers or powder coatings for optimal electrical contact
- Enhanced vibration resistance due to secure installation
- Corrosion-resistant nickel-plated lead-free brass construction
- Contributes to achieving IP68 rating when used with CABAC Brass EMC Metric Glands
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper tightening and optimal electrical contact.
Applications
- Industrial applications requiring secure EMC cable gland installations
- Metal enclosures needing reliable equipotential bonding and earthing
- Environments requiring IP68 rated cable gland assemblies
Standards & Compliance
- Meets EN 60423 for internal thread standards
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Lead-free brass material reduces environmental toxicity
- Durable corrosion-resistant plating extends product lifespan, reducing waste
- Supports IP68 rated assemblies that protect against environmental ingress
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms.
Available Now
The Cabac Locknut for GU50EMC/L is available for immediate purchase, ideal for industrial and commercial EMC cable gland applications.
