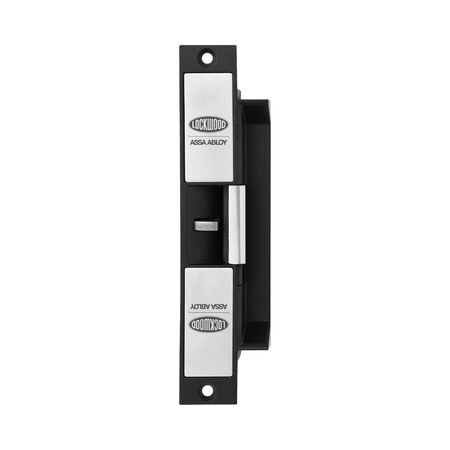

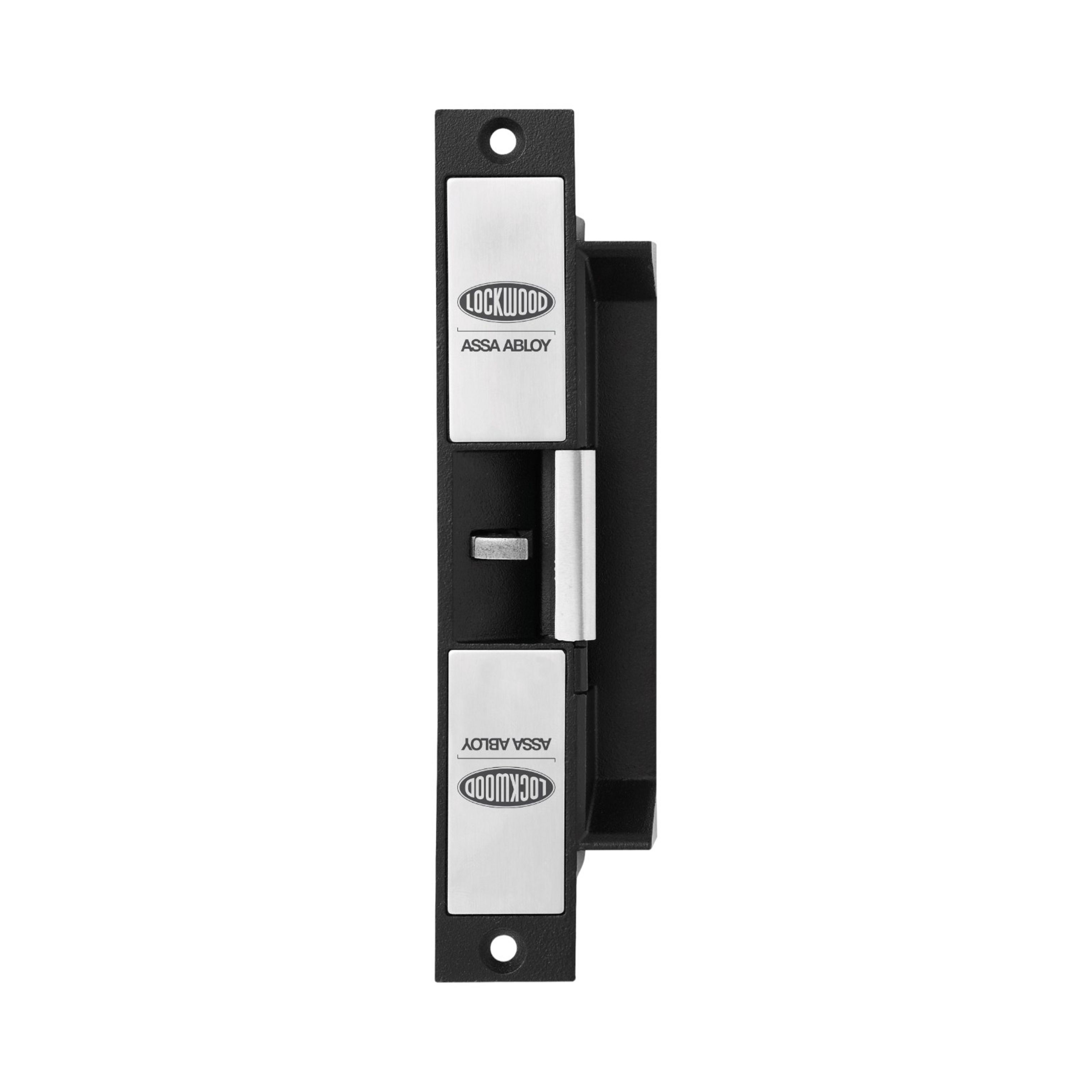

LOCKWOOD ES2000/3000 Mounting Kit | High Security Electric Strike | 850kg Holding Force | Stainless Steel Construction | by Lockwood
The LOCKWOOD ES2000/3000 Mounting Kit is a high-security electric strike designed for access control systems. With a robust 850kg holding force and solid stainless steel construction, it ensures durability and reliability. Ideal for commercial and institutional buildings, this kit supports flexible installation options and is perfect for both fail-safe and fail-secure applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LOCKWOOD ES2000/3000 Mounting Kit | High Security Electric Strike | 850kg Holding Force | Stainless Steel Construction | by Lockwood
Brand: Lockwood
SKU: 220200-519
Alternatively Known As: Electric Strike Mounting Kit, Lockwood ES2000 Mounting Kit, Lockwood ES3000 Mounting Kit, High Security Electric Strike Kit
Technical Specifications
- Voltage: 12Vdc
- Current: 175 mA @ 12Vdc
- Solenoids rated for continuous use
- Monitoring: 1 amp NO/NC microswitch for solenoid, door, and latch
- Holding Force: 850kg static strength rating
- Endurance: Tested to 1,000,000 operations
- Latch: Suitable for 15mm latch bolt with 3mm door gap
- Operational Temperature Range: -20°C to +60°C
- Body: Solid stainless steel construction
- Keeper: Stainless steel
- Certifications: CE, C-Tick, 4 hour fire rating
- Dimensions (H x L x W): 40mm x 30mm x 150mm
- Weight: 1.2 kg
Key Features
- Fully monitored high security electric strike
- Constructed from solid stainless steel for durability
- Flexible installation: fail safe or fail secure, left or right hand door mounting
- 12Vdc operation with 175mA current consumption
- 850kg holding force with 1 million cycle endurance rating
- Continuous use solenoids with independent door, latch, and solenoid monitoring
Professional Installation Requirements
- Professional installation by a qualified locksmith or security system installer is recommended to ensure proper functionality and compliance with safety standards.
Applications
- Access control systems for hinged doors requiring fire or security control
- Building management systems with monitored electric strikes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption with efficient solenoid design
Warranty Information
Standard manufacturer warranty applies. Please refer to Lockwood for detailed warranty terms.
Available Now
The Lockwood ES2000/3000 Mounting Kit is available now for immediate purchase. Ideal for high security access control applications in commercial and institutional buildings.
