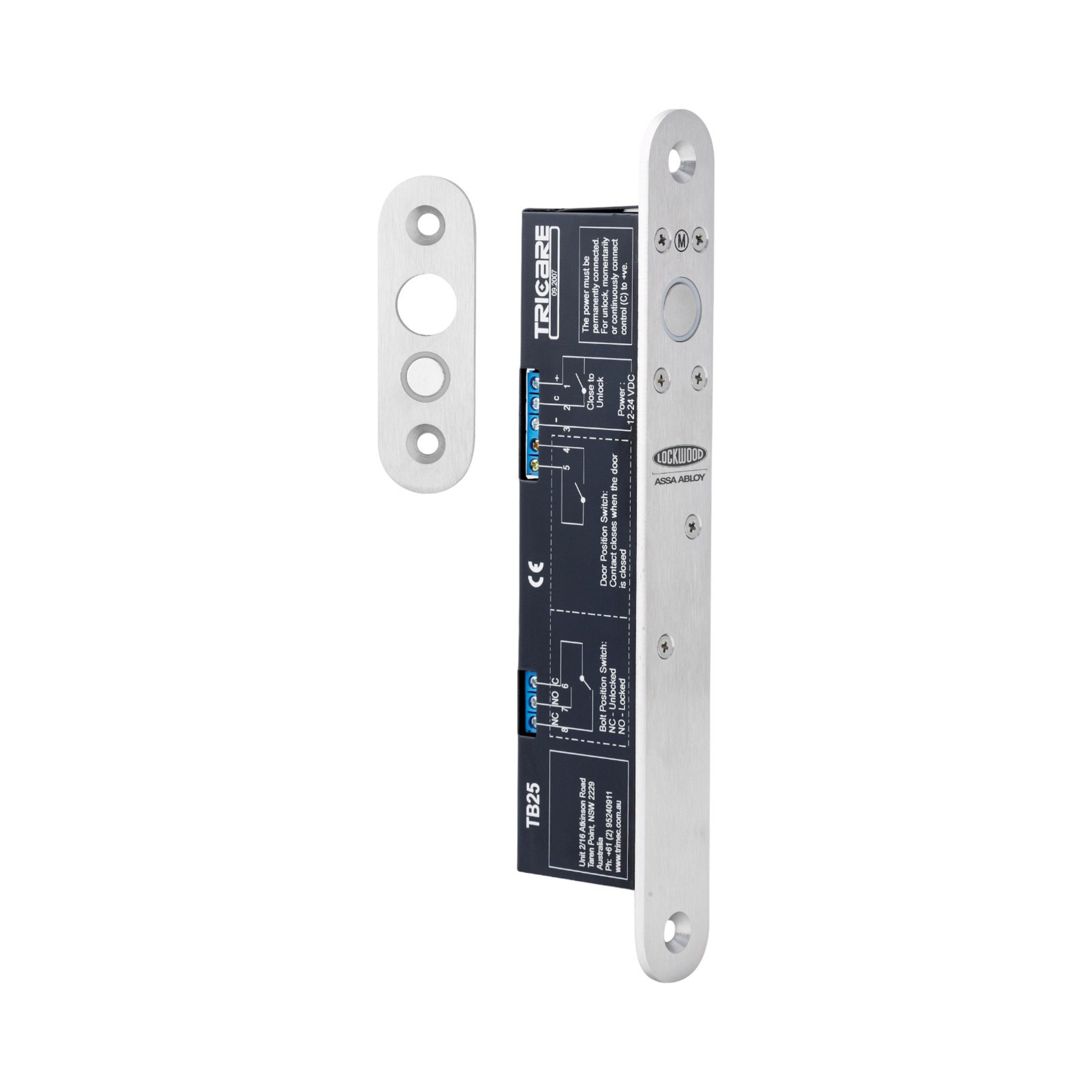

Lockwood TB25 Dropbolt Fail Secure Monitored | 12-24VDC | Stainless Steel Faceplate | 1000kg Holding Force | by Lockwood
The Lockwood TB25 Dropbolt Fail Secure Monitored is designed for high-security applications, featuring fail secure and fail safe locking modes. With monitored bolt and door positions, this dropbolt ensures reliable operation for swing-through double action doors. Built with a durable stainless steel faceplate, it offers enhanced longevity and energy efficiency through power reduction circuitry.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lockwood TB25 Dropbolt Fail Secure Monitored | 12-24VDC | Stainless Steel Faceplate | 1000kg Holding Force | by Lockwood
Brand: Lockwood
SKU: TB25-2
Alternatively Known As: Electric Dropbolt Lock, Monitored Drop Bolt Lock, Fail Secure Dropbolt
Technical Specifications
- Voltage: 12 to 24Vdc
- Current (Start): 1100mA @ 12Vdc, 1000mA @ 24Vdc
- Current (Holding): 210mA @ 12Vdc, 90mA @ 24Vdc
- Holding Force: 1000kg
- Bolt Length: 12.7 x 16mm
- Faceplate Size: 10 x 25mm
- Monitoring Contacts: Bolt & Door
- Locking Mode: Fail safe and fail secure
- Electronic functions: 8 lock/unlock attempts, 8 second unlock delay, automatic relock after 8 seconds, thermal fuse cut-out
- Dimensions (H x L x W): 10mm x 100mm x 25mm
- Weight: 1.2 kg
Key Features
- Fail secure and fail safe locking modes
- Monitored bolt and door position with integrated reed switch
- Power reduction circuitry to limit holding current
- One-time thermal fuse cut-out for solenoid overheating protection
- 8 lock and unlock attempts with 8 second unlock delay
- Automatic relock after 8 seconds
- Bolt operates in horizontal and vertical orientations
- Stainless steel faceplate and strike plate
Professional Installation Requirements
- Professional installation by a qualified locksmith or security technician is recommended to ensure correct wiring and secure mounting.
Applications
- Swing-through, double action doors
- Security applications where electric strikes are impractical
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Power reduction circuitry reduces energy consumption during holding phase
- Durable stainless steel construction extends product lifespan
Warranty Information
5 years warranty against manufacturing defects.
Available Now
The Lockwood TB25 Dropbolt Fail Secure Monitored 12-24VDC is available now for immediate purchase. Ideal for high-security swing-through double action door applications.
