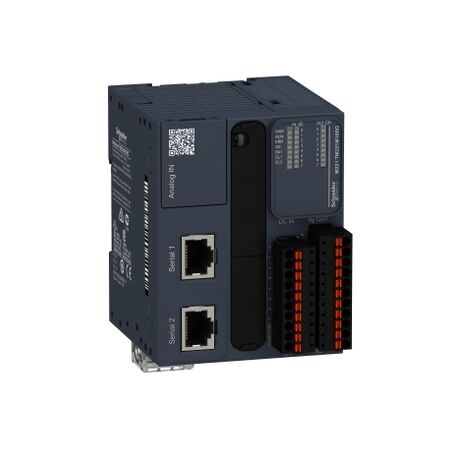

Logic Controller 16 IO Relay Spring | USB Port | High Durability | Modicon M221 by Clipsal
Logic controller with 16 IO relay spring and USB port—ideal for industrial automation and control systems. Built for high durability, with up to 300,000 cycles and wide operating temperature range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Modicon M221, Logic controller, 16 IO relay spring
Brand: Clipsal
SKU: TM221M16RG
Alternatively Known As: Modicon M221 Controller, Logic Controller, Industrial Controller
Technical Specifications
- Inrush current: 35 A
- Electrical durability: 100,000 cycles AC-12, 240 V, 480 VA, resistive
- Mechanical durability: 20,000,000 cycles for relay output
- Supply voltage: 24 V DC
- Maximum power consumption: 22.5 W at 24 V
- Discrete I/O number: 16
- Analog input number: 2 at 0...10 V
- Communication protocol: Modbus master/slave - RTU/ASCII
- Protection type: IP20 with protective cover
- Dimensions (H x L x W): 90mm x 70mm x 70mm
- Weight: 0.264 kg
Key Features
- 16 I/O relay spring logic controller
- USB port for easy programming and communication
- High electrical durability with up to 300,000 cycles
- Wide operating temperature range from -10 to 55 °C
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial automation and control systems
- Building management systems
- Process control applications
Standards & Compliance
- Complies with IEC 61131-2 for programmable controllers.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Modicon M221 Logic Controller is available now for immediate purchase. Ideal for industrial automation applications.
