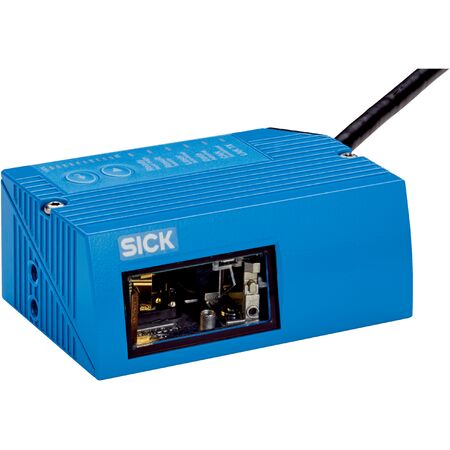

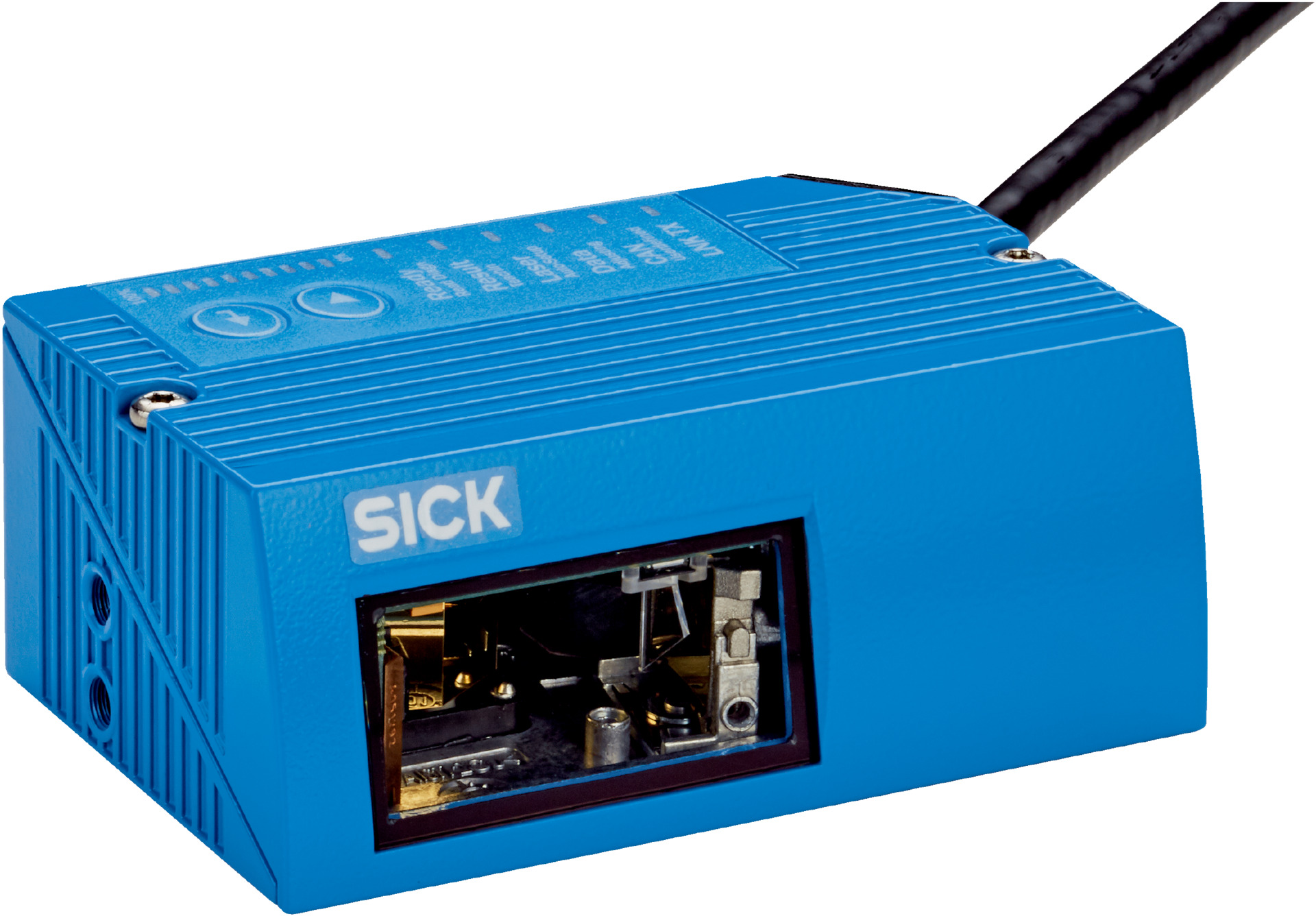

Long Range Barcode Scanner CLV630-1000 Fixed Optical Focus IP65 Rated SICK

BRAND: SICK
SKU: 1041970
$6,033.70 List price: $7,583.70
+ −
30 Days Return Electricians Unlock Trade Access
The Long Range Barcode Scanner CLV630-1000 is designed for industrial barcode scanning, featuring a fixed optical focus and a high scanning frequency of 400 Hz to
Technical Specifications
  • Version: Long Range
  • Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
  • Reading field: Front
  • Sensor type: Raster scanner
  • Optical focus: Fixed focus
  • Light source: Visible red laser, 655 nm
  • Light spot: Circular
  • Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
  • Aperture angle: ≤ 50°
  • Reading distance: 60 mm to 735 mm
  • Scanning frequency: 400 Hz to 1200 Hz
  • Code resolution: 0.35 mm to 1 mm
  • Raster height and lines at distance: 15 mm, 8 lines at 200 mm
  • Supply voltage: 18 V DC to 30 V DC
  • Power consumption: 5 W
  • Housing material: Aluminum die cast
  • Window material: Glass
  • Enclosure rating: IP65
  • Protection class: III
  • Weight: 320 g including cable
  • MTBF: 100,000 hours
  • MTTF (Laser diode): 40,000 hours
  • Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
  • Number of codes per scan: 1 to 20 (standard decoder), 1 to 6 (SMART decoder)
  • Number of codes per reading interval: 1 to 50 (auto-discriminating)
  • Number of characters per reading interval: 5,000 (500 for multiplexer function)
  • Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
  • Digital inputs: 4
  • Digital outputs: 4
  • Optical indicators: 6 LEDs
  • Acoustic indicators: Beeper/buzzer
  • Control elements: 2 buttons
  • Configuration software: SOPAS ET
  • Memory card: Optional MicroSD
  • Dimensions (H x L x W): 38mm x 61mm x 96mm
  • Weight: 0.32 kg
Key Features
  • Long range raster scanner with fixed optical focus
  • Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
  • High scanning frequency from 400 Hz to 1200 Hz
  • Durable aluminum die cast housing with IP65 rating
  • Multiple interface options including PROFINET, EtherCAT, CAN, and Serial
  • Laser class 2 with visible red light spot at 655 nm
  • Supports up to 50 codes per reading interval and 5000 characters
  • Equipped with 6 LEDs and acoustic indicators for status feedback
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
  • Industrial barcode scanning and reading
  • Automated production lines
  • Logistics and warehouse management
  • Quality control and inspection systems
Standards & Compliance
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Energy-efficient operation with low power consumption of 5 W
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK CLV630-1000 Long Range Raster Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
