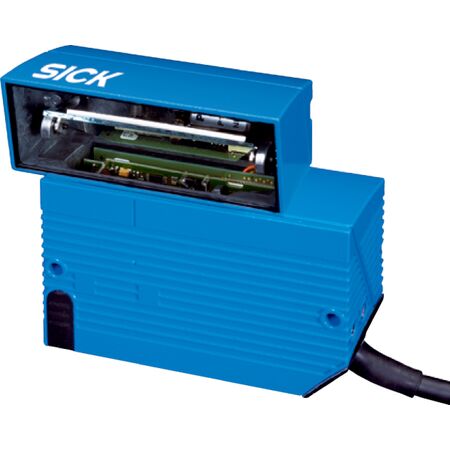

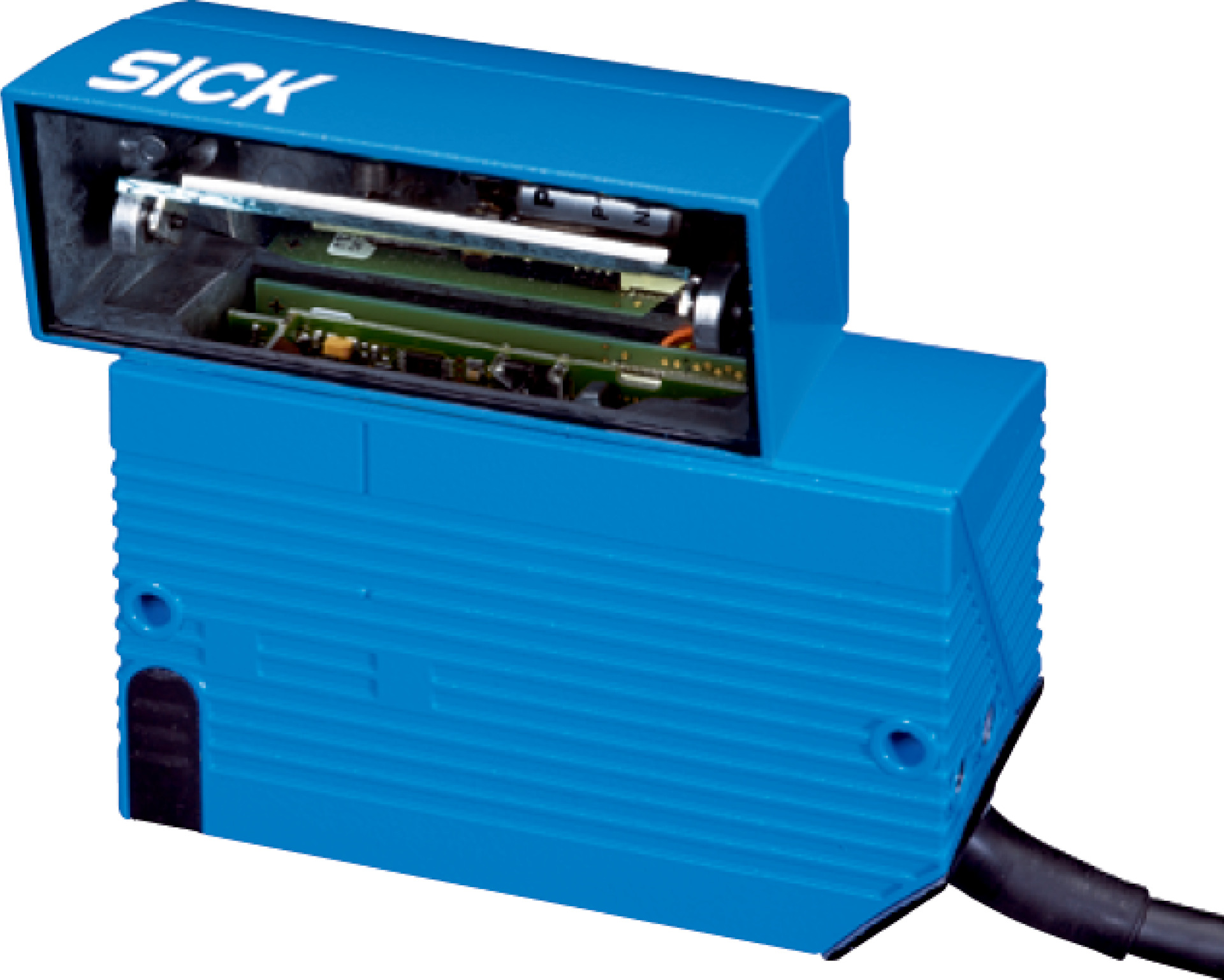

Long Range Barcode Scanner | Oscillating Mirror | IP65 Rated | by SICK
The Long Range Barcode Scanner CLV630-6000 is designed for industrial automation, featuring an oscillating mirror reading field and a visible red laser light spot for precise scanning. With a reading distance of 45 mm to 659 mm and support for all current 1D barcode types, it's perfect for logistics, manufacturing, and quality control applications. Its robust aluminum housing and IP65 rating ensure durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Long Range Barcode Scanner | Oscillating Mirror | IP65 Rated | by SICK
Brand: SICK
SKU: 1041976
Alternatively Known As: Long Range Barcode Scanner, Industrial Barcode Reader, Line Scanner Barcode Reader, SICK CLV630
Technical Specifications
- Version: Long Range
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Oscillating mirror
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (IEC 60825-1 compliant)
- Aperture angle: ≤ 50°
- Reading distance: 45 mm to 659 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.35 mm to 1 mm
- Oscillating mirror functions: Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 420 g with connecting cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported barcode types: Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional microSD
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.42 kg
Key Features
- Long range line scanner with oscillating mirror reading field
- Fixed optical focus with visible red laser light spot (655 nm)
- Laser class 2 compliant with IEC 60825-1 standards
- Reading distance from 45 mm to 659 mm
- High scanning frequency between 400 Hz and 1200 Hz
- Supports all current 1D barcode types including Code 39, Code 128, GS1 DataBar, and more
- Multiple interface options including PROFINET, EtherCAT, CAN, CANopen, PROFIBUS DP, and serial communication
- Robust aluminum die cast housing with IP65 protection rating
- Operating temperature range from 0°C to +40°C
- Equipped with 6 LEDs and acoustic indicators for status feedback
- Optional microSD memory card for configuration storage
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and inspection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with low power consumption of 6 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV630-6000 Long Range Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
