Long Range Line Scanner | Fixed Optical Focus | IP65 Rated | by SICK
The Long Range Line Scanner CLV630-0000F0 is designed for efficient barcode reading in industrial automation. With a reading distance of 60 mm to 735 mm and a high scanning frequency of 400 Hz to 1,200 Hz, it excels in high-speed manufacturing environments. Its robust IP65 rated aluminum housing ensures durability, making it ideal for cold storage applications and sensor network integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

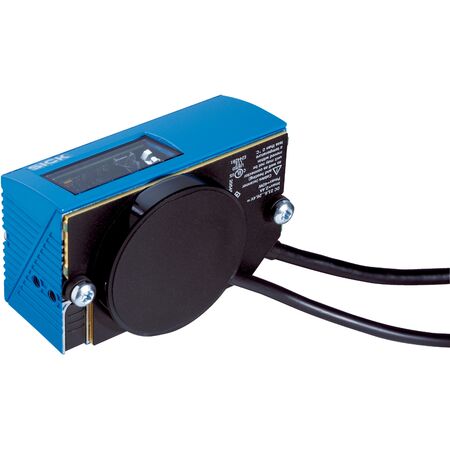

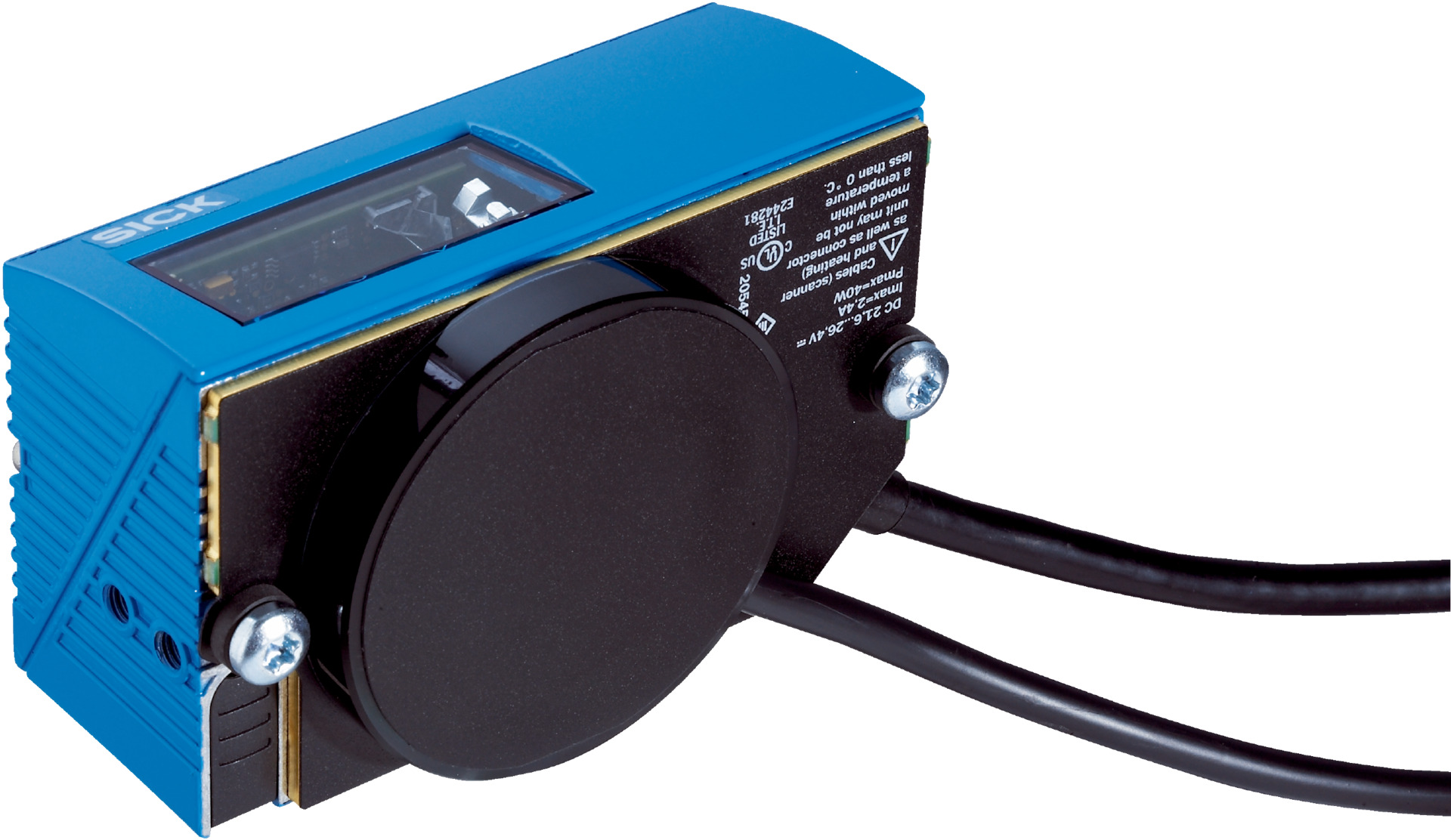

Product Name/Title: Long Range Line Scanner | Fixed Optical Focus | IP65 Rated | by SICK
Brand: SICK
SKU: 1051733
Alternatively Known As: SICK CLV630 Barcode Scanner, Long Range Line Scanner, Industrial Barcode Reader, SICK Laser Scanner Sensor
Technical Specifications
- Version: Long Range
- Connection type: Cable with 15-pin D-Sub HD male connector and open-ended cable
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm, circular spot
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 735 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.35 mm to 1 mm
- Heating: Included for cold storage
- Supply voltage: ≤ 24 V DC, ±10%
- Power consumption: 40 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 520 g including cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Interfaces: PROFINET, EtherCAT, CAN, CANopen, PROFIBUS DP, Serial (RS-232, RS-422, RS-485)
- Digital inputs: 4
- Digital outputs: 4
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 50mm x 61mm x 96mm
- Weight: 0.52 kg
Key Features
- Long range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- Reading distance from 60 mm to 735 mm
- High scanning frequency from 400 Hz to 1,200 Hz
- Laser class 2 with visible red light spot at 655 nm
- IP65 rated aluminum die cast housing for robust industrial use
- Supports cold storage applications
- Multiple interface options including PROFINET, EtherCAT, CAN, Serial, and PROFIBUS DP
- Equipped with 6 LEDs and acoustic indicators for status feedback
- MicroSD memory card support for configuration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Cold storage barcode scanning
- High-speed code reading in manufacturing lines
- Integration in sensor networks with CAN, PROFINET, EtherCAT
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Low power consumption of 40 W supports energy efficiency
- Supports cold storage applications reducing need for additional heating
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK CLV630-0000F0 Long Range Line Scanner Sensor is available for immediate purchase, ideal for industrial barcode reading and automation applications.
