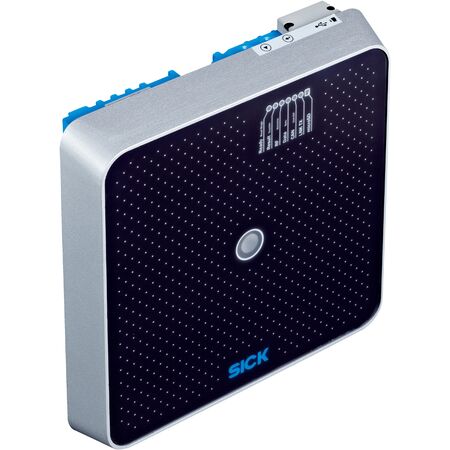

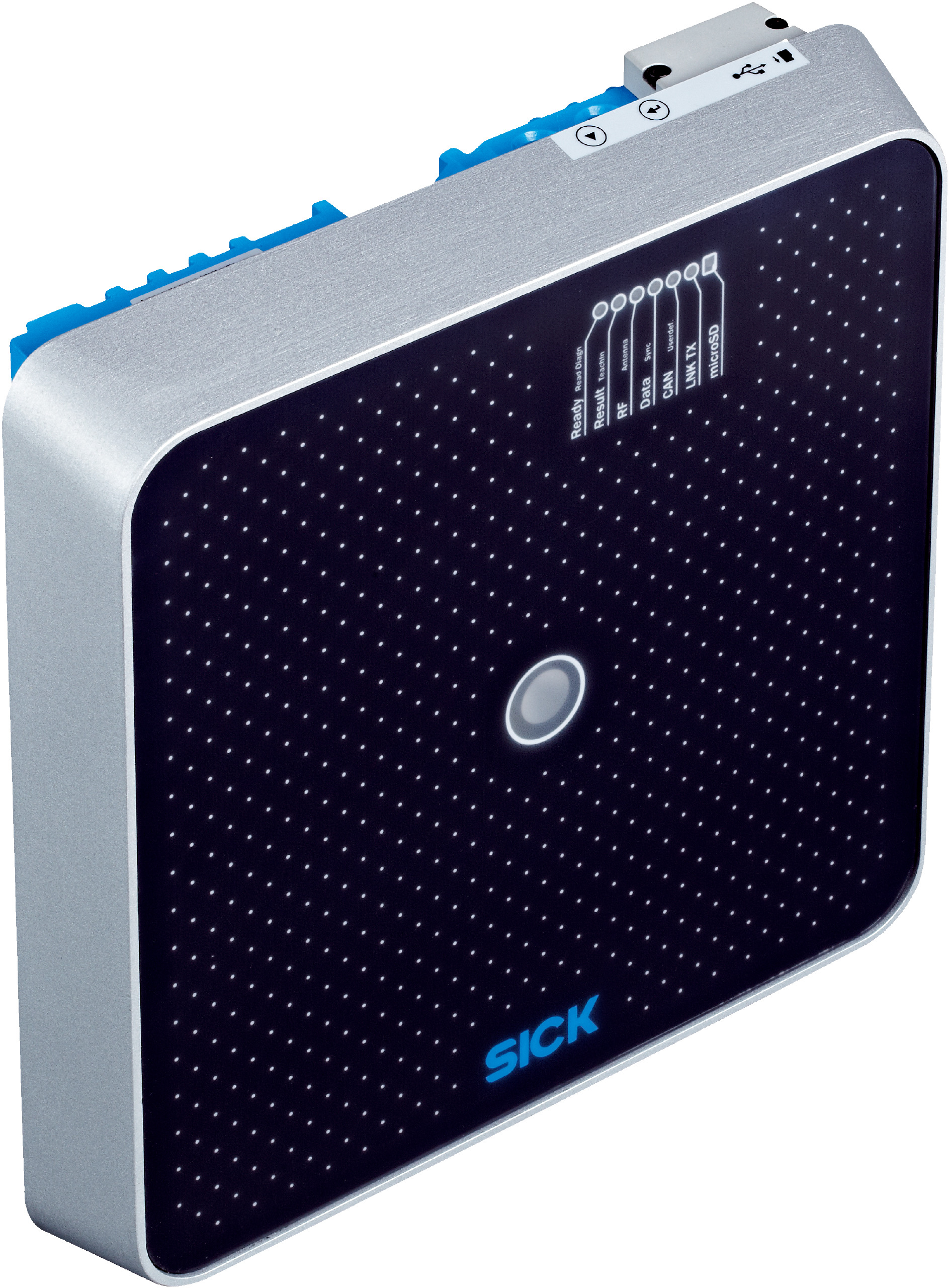

Long Range UHF RFID Reader | Integrated Antenna | Adjustable Output Power | IP67 Rated | by SICK
The Long Range UHF RFID Reader RFU630-13113 is designed for industrial asset tracking and logistics management, featuring an integrated antenna and adjustable output power up to 2 W EIRP indoors. With a robust IP67-rated aluminum housing, it operates efficiently in harsh environments, making it ideal for automated production lines and access control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 922.25 MHz to 927.75 MHz
- Output power: Max 2 W EIRP indoor, Max 1 W EIRP outdoor, adjustable
- RFID standard: EPCglobal UHF Class 1 Gen 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK, DSB-ASK
- Aperture angle: 72°
- Read range: up to 10 m
- Antenna: Integrated, circular polarization
- Connection type: M12 connectors and USB micro-B socket
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: Typical 20 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- MTBF: Greater than 100 years
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs/outputs: 2 physical inputs and outputs each, with additional logical inputs/outputs via optional modules
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Control elements: 2 buttons
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: Up to 90% non-condensing
- Dimensions (H x L x W): 64mm x 239mm x 239mm
- Weight: 2.6 kg
Key Features
- Long range UHF RFID read/write device with integrated antenna
- Adjustable output power up to 2 W EIRP indoor and 1 W outdoor
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN standards
- Bulk reading capability
- Multiple interfaces including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, PROFIBUS DP, USB, CANopen
- Robust aluminum die cast housing with IP67 rating for harsh environments
- Integrated circular polarized antenna with 72° aperture angle
- Updatable firmware and programmable data output format
- Supports SICK AppSpace functionalities with SD card accessory
- Wide ambient operating temperature range from -30 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial asset tracking and identification
- Logistics and warehouse management
- Automated production lines
- Access control and security systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation to optimize resource use and reduce energy consumption
- Durable IP67 housing extends product life reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU630-13113 Long Range RFID Read/Write Device is available for immediate purchase, ideal for industrial and logistics applications requiring reliable RFID solutions.
