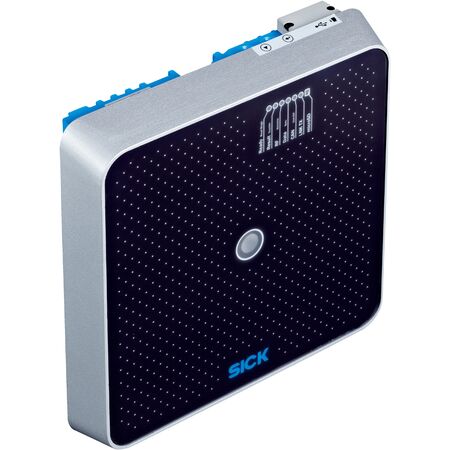

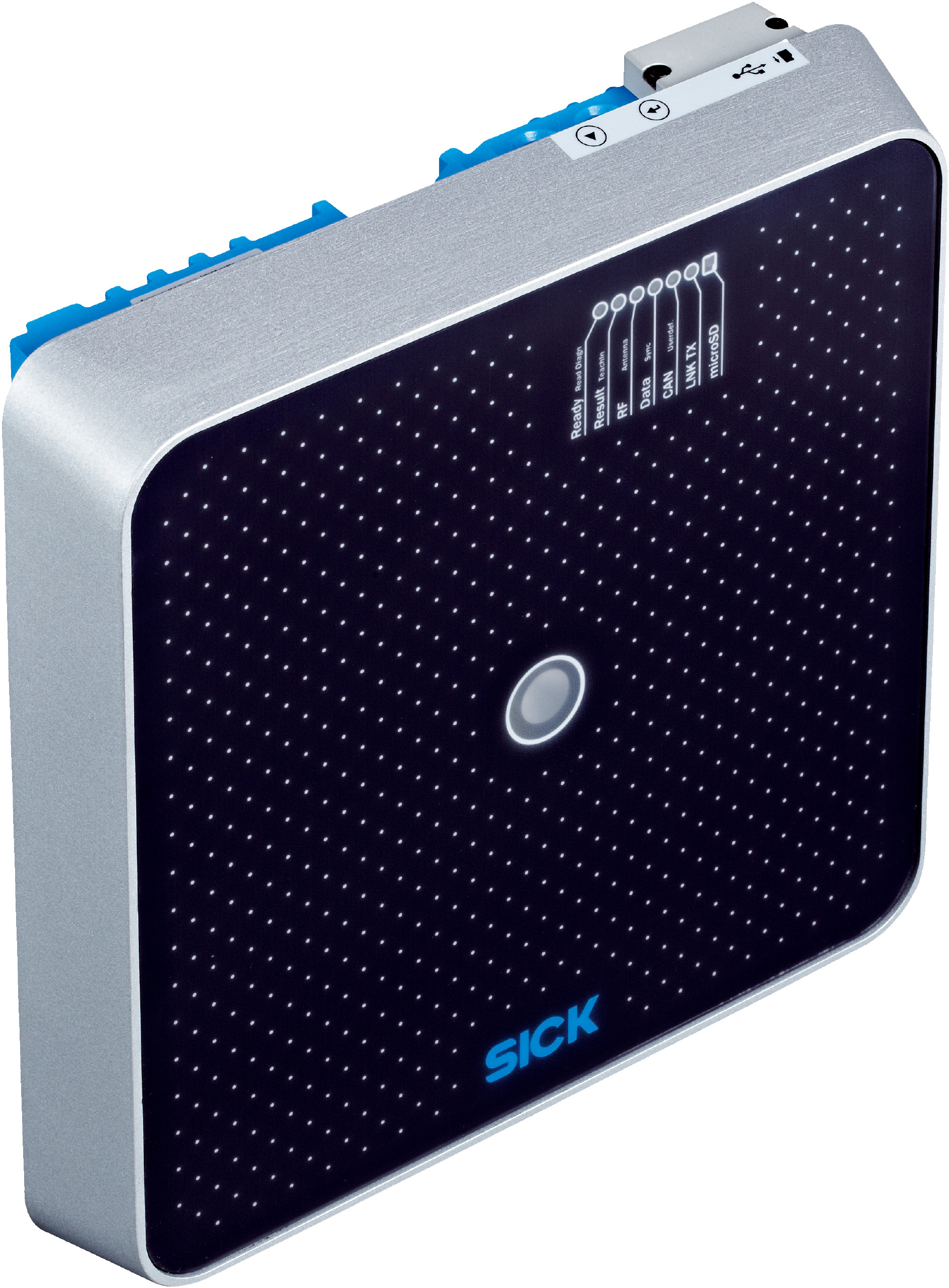

Long Range UHF RFID Reader | Integrated Antenna | Adjustable Output Power | IP67 Rated | by SICK
The Long Range UHF RFID Reader RFU630-13114 is designed for industrial asset tracking and logistics, featuring an integrated antenna and adjustable output power up to 2 W ERP. With a robust IP67-rated aluminum housing, it operates efficiently in harsh environments, making it ideal for automated production lines and bulk reading applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 919.25 MHz to 922.75 MHz
- Output power: 2 W ERP (integrated antenna), up to 30 dBm at external antenna port, adjustable
- RFID standards: EPCglobal UHF Class 1 Gen 2, ISO/IEC 18000-6C, RAIN
- Modulation: PR-ASK, DSB-ASK
- Aperture angle: 72°
- Read range: up to 10 m
- Antenna: Integrated, circular polarization
- Axial ratio: Typ. 2 dB
- Front-to-back ratio: > 17 dB
- Connection of external antennas: 3 ports, adjustable up to +30 dBm
- Connection types: M12 17-pin male, M12 4-pin female, USB 5-pin micro-B
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: Typ. 20 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: up to 90%, non-condensing
- EMC: EN 301489-3
- Vibration resistance: EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232/422), CAN, PROFIBUS DP, USB, CANopen
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Control elements: 2 buttons
- Operator interface: Web server
- Configuration software: SOPAS ET
- Programming interface: SICK AppStudio
- Memory card: microSD for parameter cloning and data storage
- Dimensions (H x L x W): 64mm x 239mm x 239mm
- Weight: 2.6 kg
Key Features
- Long range UHF RFID read/write device with integrated antenna
- Adjustable output power up to 2 W ERP with integrated antenna or 30 dBm at external antenna port
- Supports EPCglobal UHF Class 1 Gen 2, ISO/IEC 18000-6C, and RAIN RFID standards
- Circular polarization with 72° aperture angle and front-to-back ratio > 17 dB
- Bulk reading capability
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232/422), CAN, PROFIBUS DP, USB, and CANopen
- Robust aluminum die cast housing with IP67 rating for harsh environments
- Operating temperature range from -30 °C to +60 °C
- Updatable firmware and programmable data output format with SICK AppSpace functionalities
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial RFID systems and compliant with electrical safety standards to ensure proper setup and operation.
Applications
- Industrial asset tracking and identification
- Logistics and warehouse management
- Automated production lines
- Bulk reading of RFID tags in manufacturing and supply chain environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation to optimize resource use and reduce energy consumption
- Durable IP67 housing extends product life reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RFU630-13114 Long Range RFID Read/Write Device is available for immediate purchase, ideal for industrial automation, logistics, and asset tracking applications.
