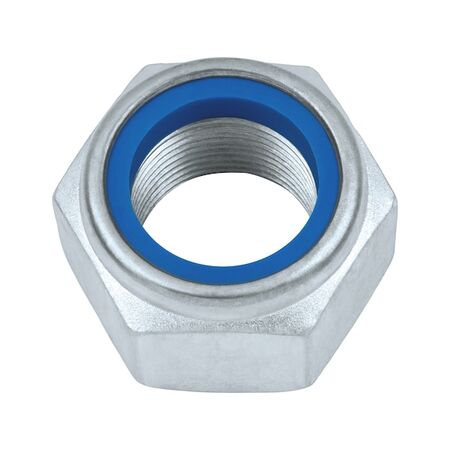

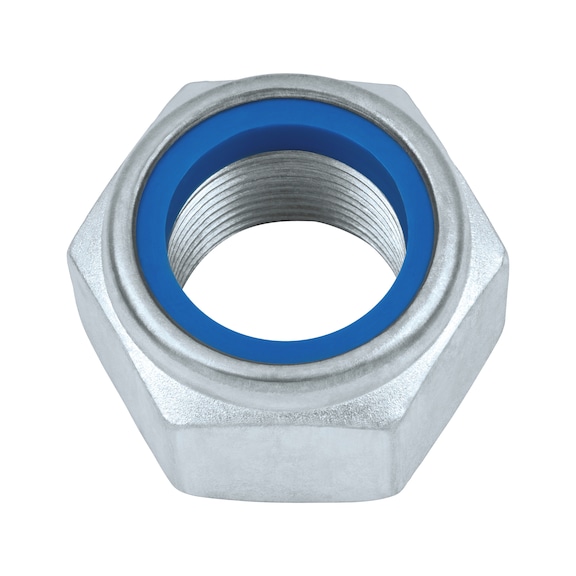

Low Profile Hexagon Nut with Clamping Piece | Zinc Plated | M4 | @Pack of 50 | by Wurth
Low Profile Hexagon Nut with Clamping Piece is designed for secure mechanical fastening in machinery and automotive applications. Featuring a zinc-plated finish and a unique clamping part polyamide ring, it prevents loosening while ensuring high friction locking torque. Ideal for environments requiring vibration resistance, this nut is RoHS-compliant and built for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Low Profile Hexagon Nut with Clamping Piece | Zinc Plated | M4 | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 3684
Alternatively Known As: Low Profile Hex Nut, Nylon Insert Lock Nut, DIN 985 Nut, Clamping Nut M4, Zinc Plated Hex Nut
Technical Specifications
- Thread type x nominal diameter (D): M4
- Height (m1): 5 mm
- External drive (s1): WS7
- Standards: DIN 985
- Material: Steel
- Property class: I6I
- Surface: Zinc plated
- RoHS-compliant: Yes
- Form: Low profile
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Dimensions (H x L x W): 5mm x 7mm x 7mm
- Weight: 0.01 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard, replaced by DIN 10511, 10512, and 7040
- Locking function achieved by clamping part polyamide ring preventing loosening
- High friction locking torque generated without damaging thread surfaces
- Operating temperature range from -70°C to +120°C
- Strength class designation includes vertical bars to differentiate load capacity
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and locking function.
Applications
- Mechanical fastening in machinery and equipment
- Use in automotive and industrial assembly
- Applications requiring vibration resistance and secure locking
Standards & Compliance
- Complies with AS/NZS 1252 for mechanical fasteners and related components
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for industrial, automotive, and mechanical fastening applications.
